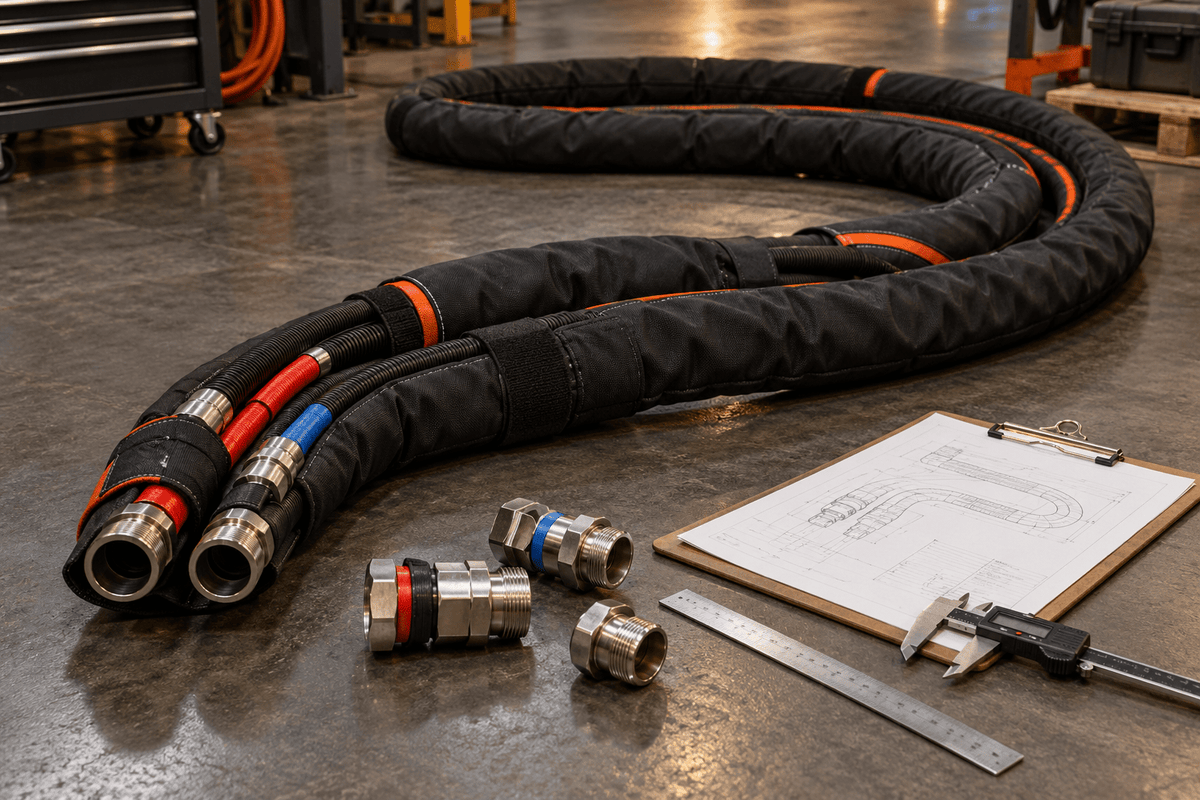

Buying a Replacement Heated Hose: Six Details to Confirm

A replacement heated hose is a system-matching purchase. Length and price matter, but they come after confirming the proportioner, pressure class, heating arrangement and connections. Two assemblies that look similar in a catalog can belong to different equipment configurations.

Use this checklist to prepare a clear request for your supplier. It is an ordering guide for professional coating and foam equipment, not an installation or troubleshooting procedure. If the existing hose is damaged or the rig has a fault, have qualified personnel establish what needs replacement before ordering.

1. Start with the exact proportioner and application

Record the manufacturer, full model designation, serial number and any documented modifications. Add the material being sprayed and the current equipment manual number. A note that says “Reactor hose” leaves too much unresolved.

Application limits are easy to miss. For example, Graco's Reactor 2 internally heated hose manual, 3A8561F, specifies polyurethane foam, Reactor 2 proportioners and compatible Improved Flex Whip hoses. That particular manual is not approval to put the assembly on any polyurea rig. Check the documentation for the exact candidate part.

When replacing an unidentified assembly, send photographs of accessible labels and existing records to the supplier. Do not disconnect pressurized or energized equipment merely to obtain a photograph.

2. Match the pressure and temperature requirements

Write down the required working pressure and operating temperature for the complete system. Keep these separate from a machine's current display reading or an old purchase description.

A higher-rated replacement component does not raise the rating of everything connected to it. Graco's equipment warnings in the Reactor 2 hose manual require staying within the pressure and temperature rating of the lowest-rated system component. Ask the supplier to confirm the proposed assembly against the whole configuration.

Put the confirmed ratings in the quotation. If the quote describes only “high pressure,” request the actual specification and part number before treating it as a match.

3. Identify the heating and sensing arrangement

Record whether the existing setup uses internally or externally heated hose, along with the relevant electrical connection and temperature-sensing arrangement. Do not assume that an electrical connector that appears similar establishes compatibility.

The Reactor 3 heated hose manual, 3A7683L, separates hose options by heat type and identifies variants with temperature-sensor cable. Its model tables also distinguish main hose and whip hose. Those are useful examples of the details that belong in a purchase request, rather than specifications to apply to every brand.

Ask what is supplied with the selected part and what must be ordered separately. A bundle description, an individual replacement hose and a sensor kit may represent different scopes of supply.

4. Map the complete hose run

Sketch the route from the proportioner to the gun. List each section's part number and length, identify the whip, and note the intended total length after replacement. Make clear whether you are replacing one section or changing the overall run.

Give the supplier both the current and proposed configuration. Ask them to verify the permitted total length and any setup requirements against the proportioner and hose manuals. An extension should not be approved solely because there is room for another coil in the trailer.

This is also the time to explain practical constraints: the route through the rig, the distance to the work and how the assembly is handled. Let the manufacturer or qualified supplier assess those needs without promising that a different diameter or longer run will improve performance.

5. Confirm each fluid connection and component identity

Include the specified inner diameter, fitting type and size for both component sides, using part records rather than appearance alone. Graco's Reactor 3 tables list these separately, which shows why one overall “hose size” can be an incomplete description.

Ask for written confirmation of the connections between the proportioner, main sections, sensor assembly, whip and gun manifold. Do not select adapters to defeat mismatched component connections. The Reactor 2 manual warns that incorrect fitting connections can cause fluid crossover and permanent hose damage.

6. Define the delivered assembly

Before accepting the quote, check this short list:

• Exact manufacturer part number and covered equipment configuration.
• Main section, whip or individual component being supplied.
• Section length, diameter and verified system ratings.
• Heating, sensing and connector compatibility.
• Protective covering and included accessories.
• Any required companion parts and the applicable installation instructions.

Have the supplier identify substitutions explicitly. A replacement described as equivalent still needs the same compatibility review. Keep the approved quote and supporting documents with the rig's records so the next purchase starts with a confirmed configuration.

Leave installation to the correct procedure

Hose work involves electrical energy, hot material and retained fluid pressure. Follow the current manufacturer's shutdown, pressure-relief, installation and inspection instructions, with appropriately trained personnel. An ordering checklist cannot supply a safe universal sequence for different rigs.

For help identifying the right purchasing path, contact ArmorThane Shop with the equipment identification, proposed hose configuration and unresolved questions. A precise request gives the supplier something concrete to confirm before money is committed or the rig is taken apart.
