Build a Spray Rig Spare-Parts List You Can Trust

A well-stocked spare-parts box starts with accurate identification. Buying several seals that look familiar is less useful than having the correct part number, knowing which machine it belongs to and being able to find its installation instructions when needed.

For a coating or foam rig, build the list around the equipment actually installed. Treat this as an inventory-planning job, separate from diagnosis and repair. The goal is to make the next order clearer and the parts shelf easier to trust.

Give each piece of equipment its own record

List the proportioner, transfer pumps, spray guns, hose assemblies and other serviceable equipment separately. Record manufacturer, model, serial number where applicable, and the manual number or revision used for that equipment.

Include the configuration that can change a parts decision. A gun's model family alone may not identify its chamber or installed conversion components. Record known changes made during previous service, with supporting part numbers rather than a general note such as “upgraded gun.”

Take clear photographs of accessible identification labels without opening or servicing equipment merely to build the list. Save the photographs beside the equipment record. If a label is unreadable, ask the manufacturer or qualified service provider how to identify the unit before guessing at replacements.

Use the correct manual as the starting point

Open the manufacturer's documentation for the exact equipment and confirm that it covers the installed configuration. For example, the Graco Fusion AP manual includes model information, exploded parts drawings, parts lists and kit references. Those sections work together; an illustration by itself is not the whole ordering record.

Distinguish the reference number pointing to a component in a drawing from the orderable part number in the accompanying list. Record the full part number, description and quantity. Keep any symbols or notes that explain kit contents or model exceptions.

If the manual revision, equipment label and catalog listing do not agree, flag the item for confirmation. Do not resolve the discrepancy by choosing whichever number is easiest to find online. A short clarification now is better than a neatly labeled box containing an unsuitable part.

Choose stock based on actual service history

Review your own maintenance records. Which manufacturer-specified service items have been used repeatedly? Which missing part previously delayed a job? Which items are expensive enough that keeping one requires a deliberate decision?

Divide the candidate list into regularly used service items, selected backup components and parts ordered only after diagnosis. This keeps a general shopping list from turning into a shelf full of speculative replacements. A part's presence in a troubleshooting section does not mean every rig needs several of them.

Ask your qualified service provider which items make sense for your equipment and the work you are authorized and trained to perform. Keeping a component on the shelf does not establish that a crew member should install it. Some jobs belong with trained service personnel.

Keep identity attached to the part

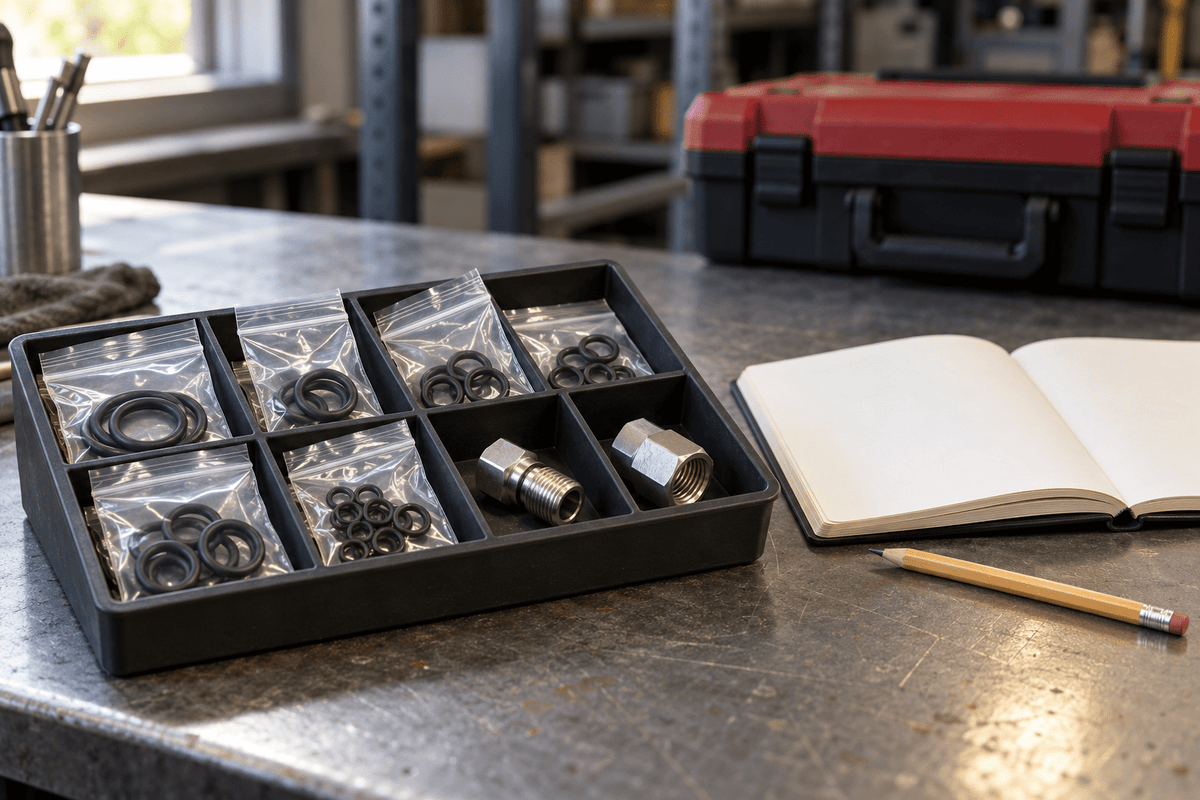

Retain original packaging and labels when practical. Store one identified item or kit per labeled compartment, and keep kits complete. If an opened kit has been partly used, record what remains rather than returning it to stock as a full kit.

Label the compartment with the manufacturer part number, equipment reference, quantity and date received. Add applicable storage or shelf-life information from the supplier. Protect components from contamination and use the storage conditions specified by their manufacturer.

Keep uncertain, damaged and removed parts out of the usable-spares compartments. An old component saved for identification should be marked clearly so it cannot be mistaken for a new replacement. Do not identify seals solely by color or apparent size.

Make reordering a small, repeatable task

A basic record needs only a few fields:

• Equipment model and configuration.
• Manufacturer part number and description.
• Manual reference or confirmed kit reference.
• Usable quantity on hand and storage location.
• Reorder point chosen for your operation.
• Supplier confirmation and open questions.

Review quantities after parts are used, not only when another repair is imminent. Set reorder points around your own usage and confirmed lead times. Avoid copying another shop's stock quantities without considering whether its machines, materials and workload resemble yours.

The ArmorThane gun parts finder can help with catalog navigation. Use it alongside the equipment record and manufacturer documentation. If a listing leaves the configuration uncertain, send the relevant model and part information to support before placing an order.

Keep the planning sheet separate from repair instructions

This list is not a shortcut for shutting down or servicing high-pressure equipment. Follow the current equipment manuals, material safety information and required protective procedures. Graco's Fusion AP instructions specifically warn that pressure can remain in the hose and proportioner after pressure at the gun has been relieved.

When service is needed, return to the correct procedure rather than working from a parts-bin label or a remembered sequence. Record the installed part afterward, update the usable stock count and note any confirmed changes to the configuration.

The most useful spare is one you can identify with confidence. A clear equipment record, a verified parts reference and disciplined storage make the shelf a practical support tool instead of another source of uncertainty.
