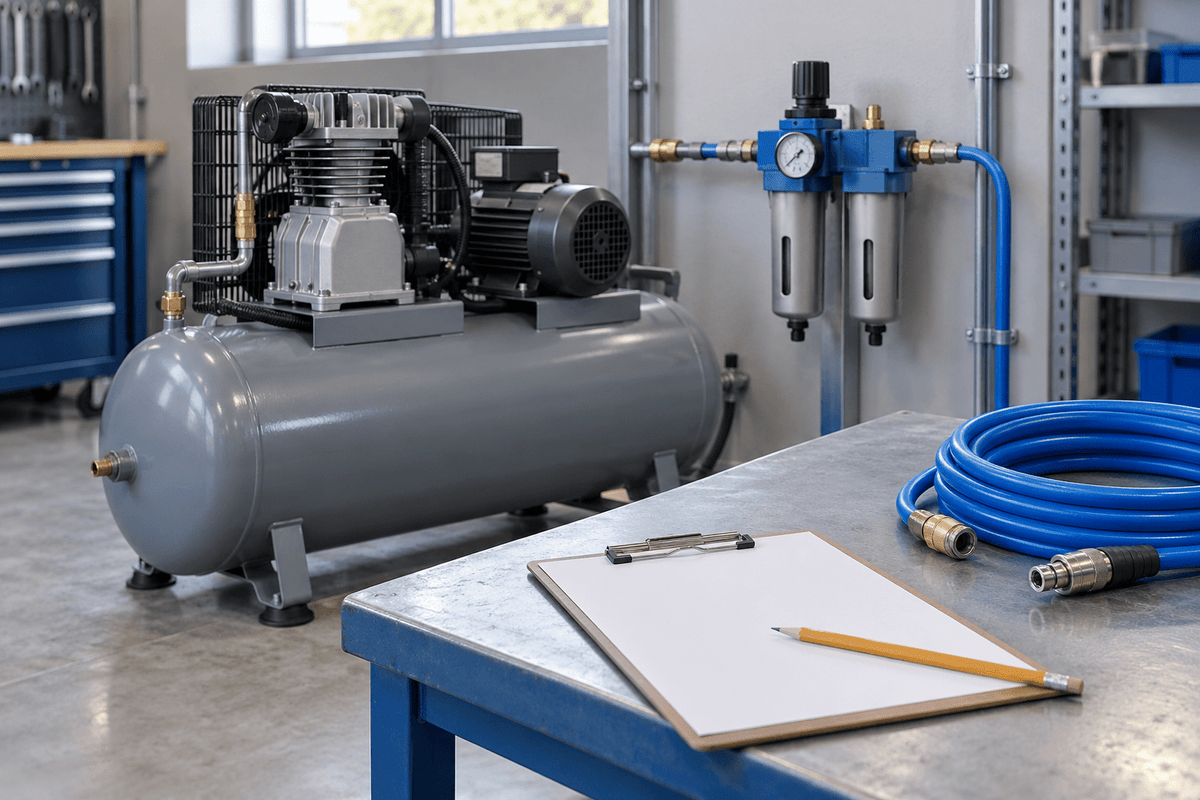

Spray Gun Air Supply: What to Confirm Before Buying a Compressor

The compressor in a spray rig has to support the equipment connected to it, not simply display an impressive pressure number on a sales sheet. Before buying a replacement or adding another air-powered device, collect the requirements that a qualified equipment supplier needs to assess the whole system.

This is a purchasing brief for professional coating and foam equipment. It does not prescribe operating settings, size a breathing-air system or replace a manufacturer's installation procedure. The useful result is a documented configuration that the relevant suppliers can confirm.

Put pressure and airflow in separate columns

Pressure and airflow answer different questions. Atlas Copco's compressor specification guide distinguishes pressure in PSI from the volume flow expressed in CFM. A compressor's stated flow belongs with the pressure at which that output is specified.

Make two separate entries for each air-powered item: its required pressure and its documented air demand. Copy the units and any conditions beside the figures. Do not compare a bare CFM number from one listing with an SCFM figure from another without asking the supplier to reconcile their rating basis.

For a candidate compressor, request the delivered-air specification at the required operating pressure. Horsepower, maximum pressure and tank size can be useful equipment details, but none should stand in for that missing output information.

Identify the gun configuration behind the number

Record the gun manufacturer, exact model and installed mix chamber or other configuration that the manual uses to describe air demand. A family name alone can leave several possibilities open.

The current Graco Fusion AP manual, 309550ZAT, illustrates why this matters. Its technical specifications separate air inlet pressure from fluid working pressure, and its air-flow table varies by mix chamber and air pressure. The table also identifies the stated condition as detriggered. Those headings are part of the specification, not optional footnotes.

Keep a copy of the relevant manual page with your request. Ask the equipment supplier which operating conditions must be covered for your actual gun and work pattern. Do not adopt a figure from another chamber, or change the gun setup simply to make a smaller compressor appear suitable.

List everything that shares the air supply

Draw a simple equipment list before choosing a compressor model. Include the gun and any other air-powered equipment already connected, plus proposed additions. Mark which items can operate at the same time and which have separate supplies.

Describe the work pattern in ordinary language: one gun on the rig, frequent starts and stops, another air tool used during preparation, or a planned second station. Use the equipment's own documented consumption figures where available. Mark unknown entries for confirmation rather than filling the gaps with estimates copied from an unrelated rig.

Ask the supplier to explain the capacity allowance and duty-cycle assumptions behind the recommendation. A quote based on intermittent use deserves another conversation if your intended work is substantially different.

Describe the route from compressor to equipment

The quotation should cover more than the compressor sitting in the corner. Give the supplier a sketch of the intended air-line route, approximate run lengths, existing hose identification and the filters, regulators or other treatment equipment already installed.

Ask them to review pressure loss, connection compatibility and the air quality required by the connected equipment. Have them identify the treatment components and maintenance requirements they recommend for that configuration. This article does not specify a universal filter, dryer or hose size.

Gather information from accessible labels and existing records. Do not disconnect lines, defeat guards or dismantle pressurized equipment just to complete a purchasing worksheet. Leave inspection and measurement that require service procedures to appropriately trained personnel.

Include the place where it will operate

Record whether the compressor will live in a shop or a mobile rig. Share the available space, access for service, intended mounting arrangement and the electrical supply information that a qualified installer has confirmed. Include any constraints on noise, ventilation or transport that the supplier needs to address.

Request the installation manual before committing to the purchase. Resolve location and power requirements with the responsible installer rather than treating them as problems to solve after delivery. Do not assume the existing circuit, enclosure or mounting points suit a different machine.

Make the quotation answer specific questions

A useful request can finish with this list:

• Which equipment models and simultaneous loads does the recommendation cover?
• What delivered airflow and operating pressure support that selection?
• Which duty-cycle and capacity allowances were used?
• What air treatment, lines and connections are included or required separately?
• What installation, commissioning and maintenance work must be arranged?

Keep the supplier's answers with the equipment records. Treat breathing-air requirements as a separate specialist design question; a shop-air specification is not approval for respiratory use. Clear boundaries and documented answers make the compressor purchase a reviewable equipment decision instead of a guess based on the largest number in the catalog.
