Wet Film vs. Dry Film Thickness: Read the Requirement Before Ordering

A coating thickness written as “10 mils” leaves an important question unanswered: measured when? Ten mils in a freshly applied liquid film and ten mils after drying are different instructions. Before ordering material or choosing an inspection gauge, make sure everyone is discussing the same stage of the coating.

Wet film thickness, or WFT, describes the applied coating before it dries or cures. Dry film thickness, or DFT, describes the film after that change. A job can call for both readings, but they serve different purposes. This guide explains the distinction and the questions to settle before application; it does not set a thickness specification for any ArmorThane product.

Put the unit and the stage together

A useful thickness note includes a number, a unit and whether it refers to wet or dry film. It should also identify the layer being discussed. “Primer DFT” is more specific than “coating thickness,” especially when a project includes a primer, base coat and topcoat.

A mil is one-thousandth of an inch, equal to 25.4 micrometers, as explained in DeFelsko's coating-gauge reference. A mil is not a millimeter. For example, 10 mils equals 254 micrometers, or 0.254 millimeter. Keep units visible when moving figures between a data sheet, a quote and an inspection record.

Do not assume an unlabeled number is clear from context. Ask whether a stated range applies to one coat or the total system, and whether it is an application target or an acceptance requirement. Resolve those questions before turning the number into a material estimate.

Volume solids connects the two measurements

For a conventional liquid coating applied without added thinner, a useful planning relationship is dry thickness equals wet thickness multiplied by the solids-by-volume fraction. Elcometer's wet-film guide explains this relationship using the coating's volume-solids content.

Consider a purely illustrative coating with 50% volume solids. A 200-micrometer wet film would predict a 100-micrometer dry film under that simple relationship. Working backward, a specified 100-micrometer dry target would require a calculated 200-micrometer wet target. These are teaching numbers, not recommended settings or thicknesses for a product.

Use the current manufacturer's data for the correctly mixed material. Do not substitute solids by weight: mass percentage does not describe the volume of film remaining. DeFelsko's WFT calculation guide also explains why added reducer changes the calculation. A thickness formula is never permission to thin a coating; any addition must be allowed by that product's instructions.

A wet-film check is a timely estimate

A notched wet-film comb indicates a range between a wetted tooth and the next dry tooth, rather than an infinitely precise value. Its scale must cover the expected thickness. The instrument's own instructions and the project inspection plan determine how it is used and recorded.

Timing and surface condition matter. DeFelsko's measurement-method overview notes limitations on irregular surfaces and warns that quick-drying coatings can produce inaccurate wet-film readings. Do not assume a comb is suitable for a fast-reacting spray material simply because it works on a slower-drying paint.

For rapid-cure systems, ask the coating manufacturer and inspector which measurement method is appropriate. Decide that before the crew starts. A tool that cannot give a meaningful reading within the material's working behavior is not a useful check just because it is inexpensive or familiar.

Choose the dry-film method for the actual substrate

“Digital thickness gauge” is not a complete equipment specification. The substrate, coating, expected range and surface condition all affect the method you need. Do not assume a probe intended for a coating on steel will measure a lining on concrete in the same way.

For example, Elcometer's concrete-coating measurement explanation describes ultrasonic measurement, which differs from common metal-substrate gauge methods. Confirm the instrument and probe are suitable, and follow their verification and adjustment instructions. This example identifies a method distinction, not an endorsement of a particular gauge for every lining.

Ask the inspection provider to identify the intended procedure, measurement locations and acceptance criteria. Do not invent a sampling plan from a product listing. A calculated dry-film estimate is useful for planning, but it is not a substitute for the specified final inspection.

Make the handoff easy to read

Before you request material quantities or inspection equipment, put the product name, coating layer, substrate, target range, units and wet-or-dry designation on one sheet. Attach the applicable data sheet and project requirements. Our coating document guide explains how to keep technical, safety and application information organized.

Leave unresolved items visible instead of filling them with assumptions. The goal is a shared, product-specific requirement that purchasing, application and inspection can all read the same way. Clear thickness language is a small part of planning that prevents a large amount of confusion later.

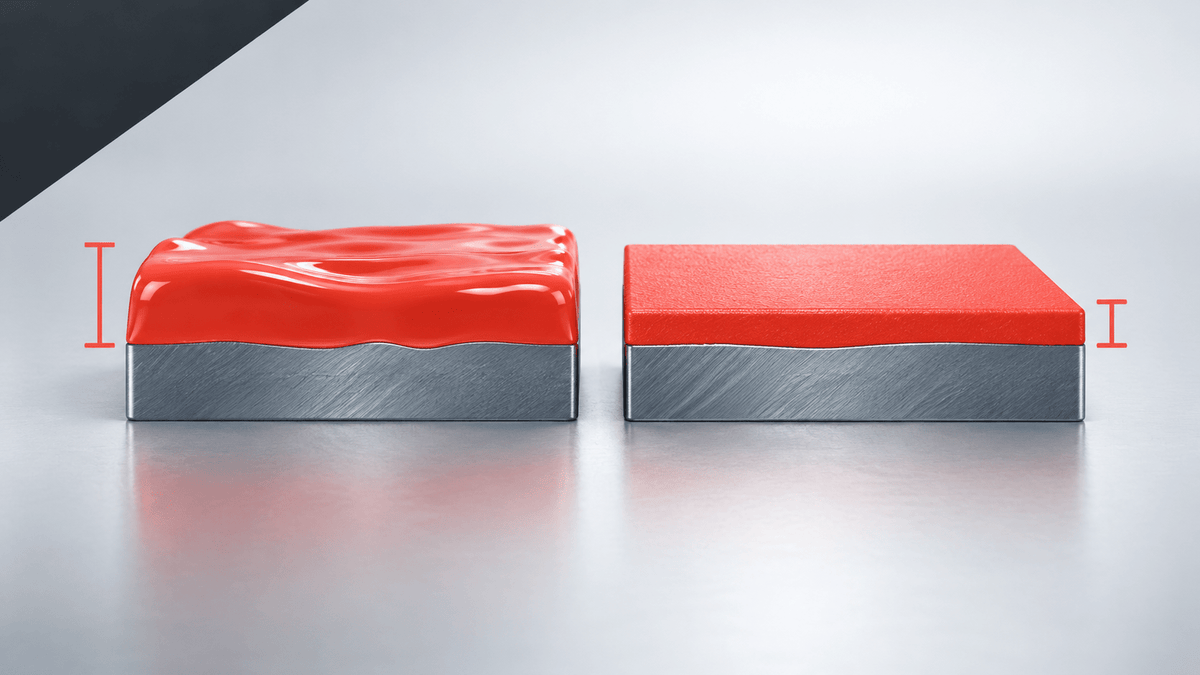

Cover: original conceptual illustration of wet and cured coating layers, not a scale drawing or product-performance comparison.
