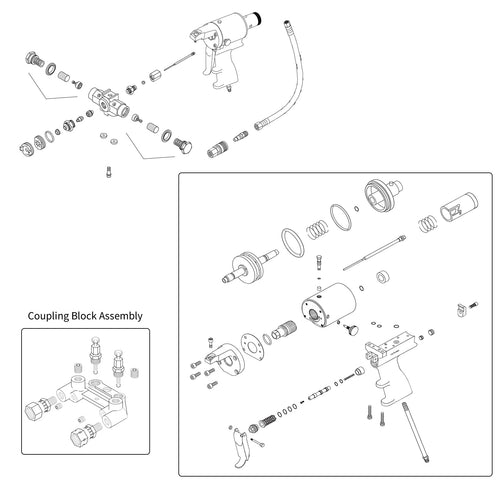

Graco GX-7 Gun Parts

The Graco 296970 manual valve assembly is the material shut-off valve on the coupling block of the Graco GX-7 plural-component spray gun. Closing the manual valves isolates the A and R materials at the gun for cleaning, maintenance or removing the gun from the...

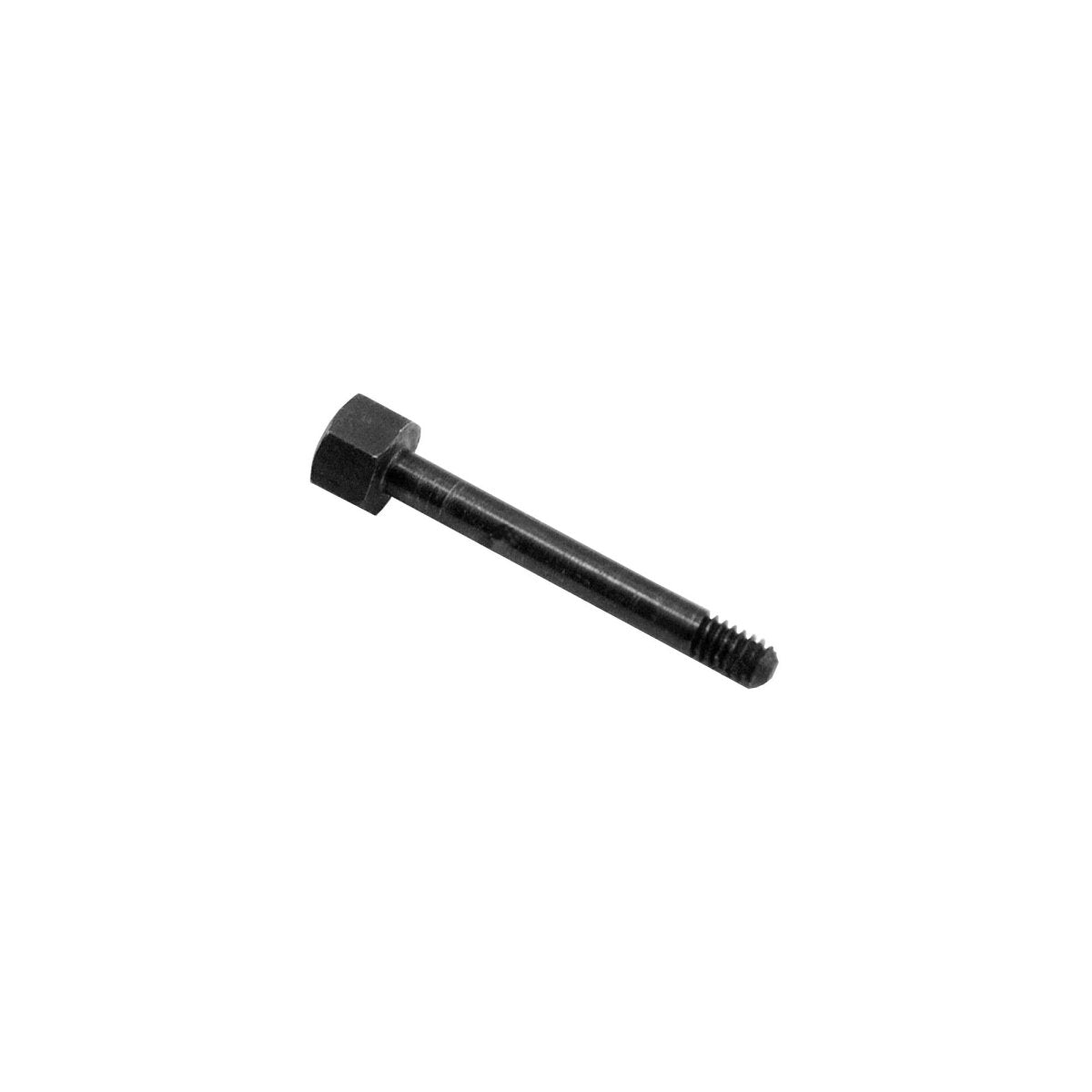

The Graco 295671 trigger mounting screw secures the trigger (295692) to the handle of the Graco GX-7 spray gun. A worn or loose screw lets the trigger wobble and can make gun actuation inconsistent.Features Genuine Graco GX-7 trigger fastener Keeps the trigger pivot tight...

The Graco 295709 cap screw is an 8-32 x 3/4 in. socket head cap screw used on the Graco GX-7 plural-component spray gun. Replace worn or lost screws with the correct Graco fastener to maintain proper clamping.Features Genuine Graco GX-7 fastener 8-32 x 3/4...

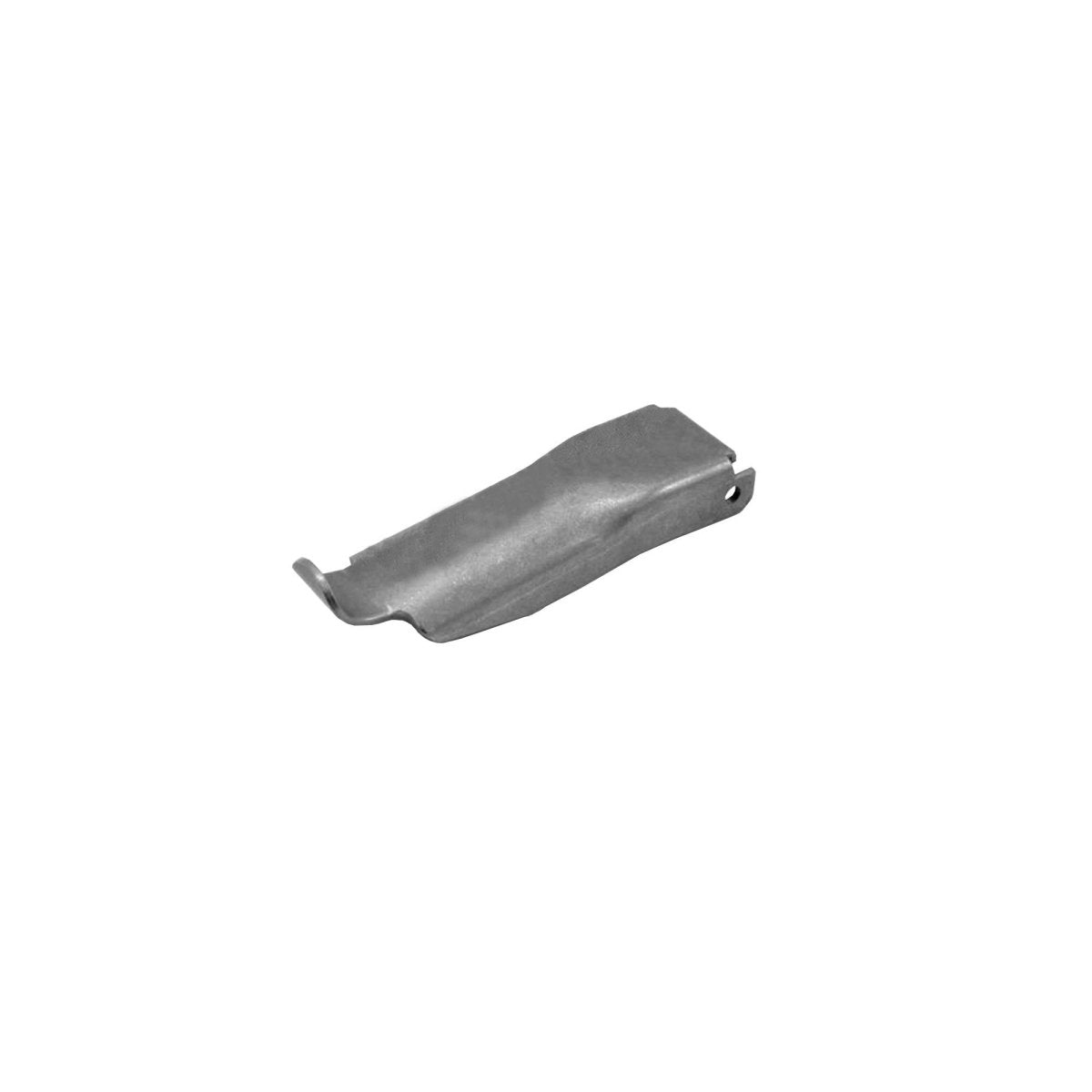

The Graco 295692 spray gun trigger is the genuine replacement trigger for the Graco GX-7 plural-component spray gun used for spray foam and polyurea. A bent trigger can prevent full actuation or cause the gun to hang open.Features Genuine Graco GX-7 trigger Restores full,...

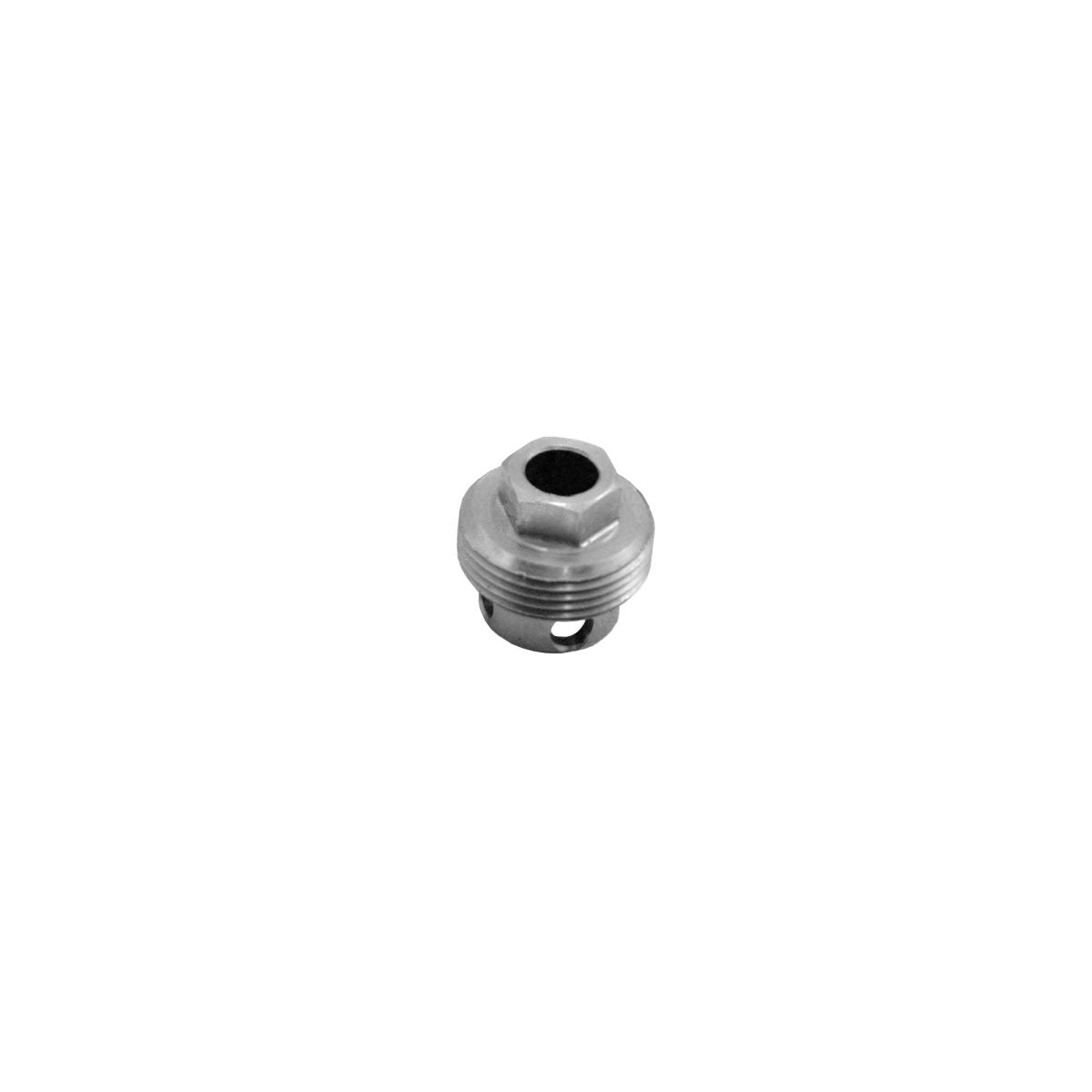

The Graco 295688 valve retainer nut holds the spool valve components in the handle of the Graco GX-7 spray gun. A damaged nut can let the valve assembly shift or leak.Features Genuine Graco GX-7 retainer nut Secures the spool valve assembly Replace if threads...

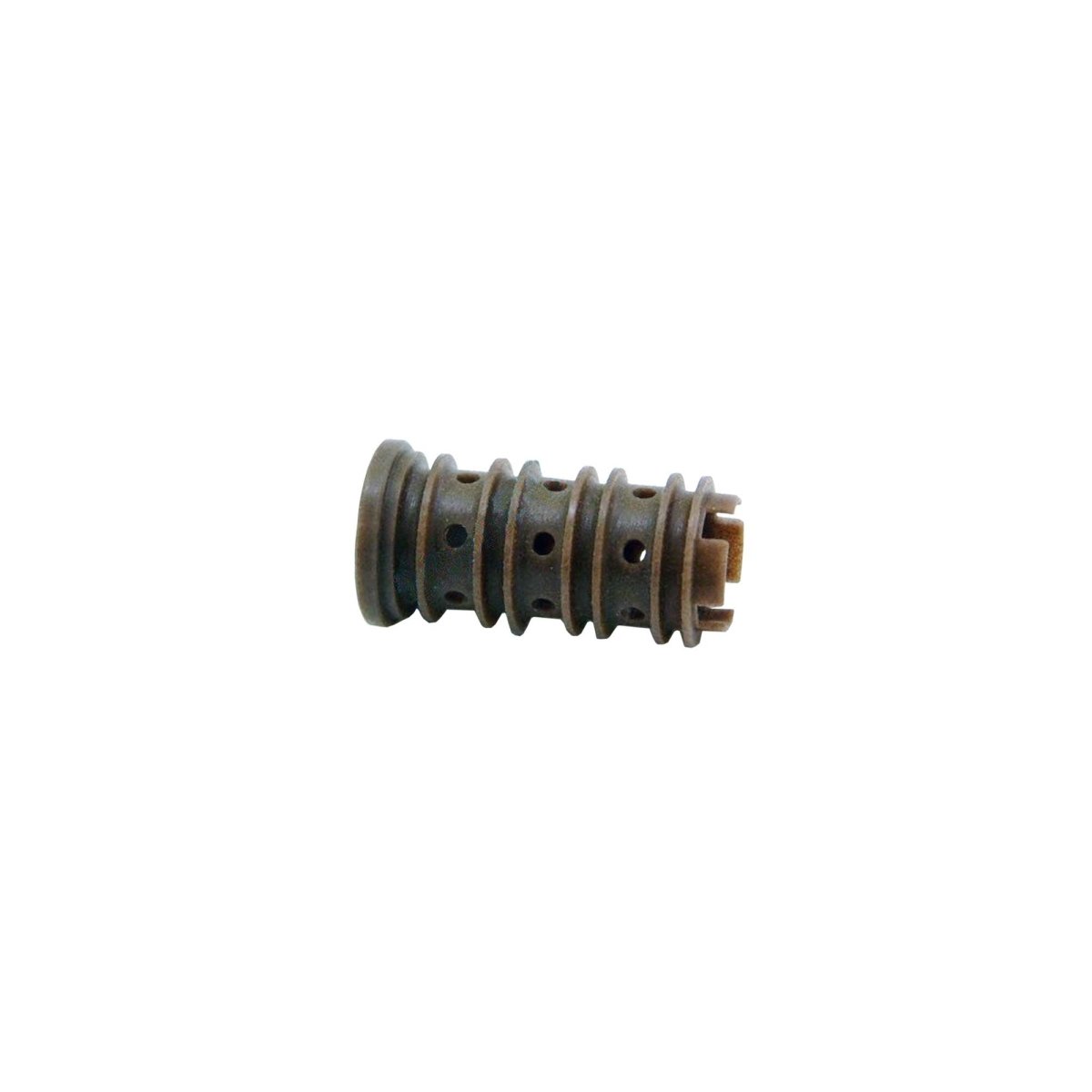

The Graco 295686 spool valve liner is the sleeve the spool valve (295687) slides in inside the Graco GX-7 spray gun handle. A worn liner lets air bypass the spool, which can cause leaks and poor trigger response.Features Genuine Graco GX-7 valve liner Provides...

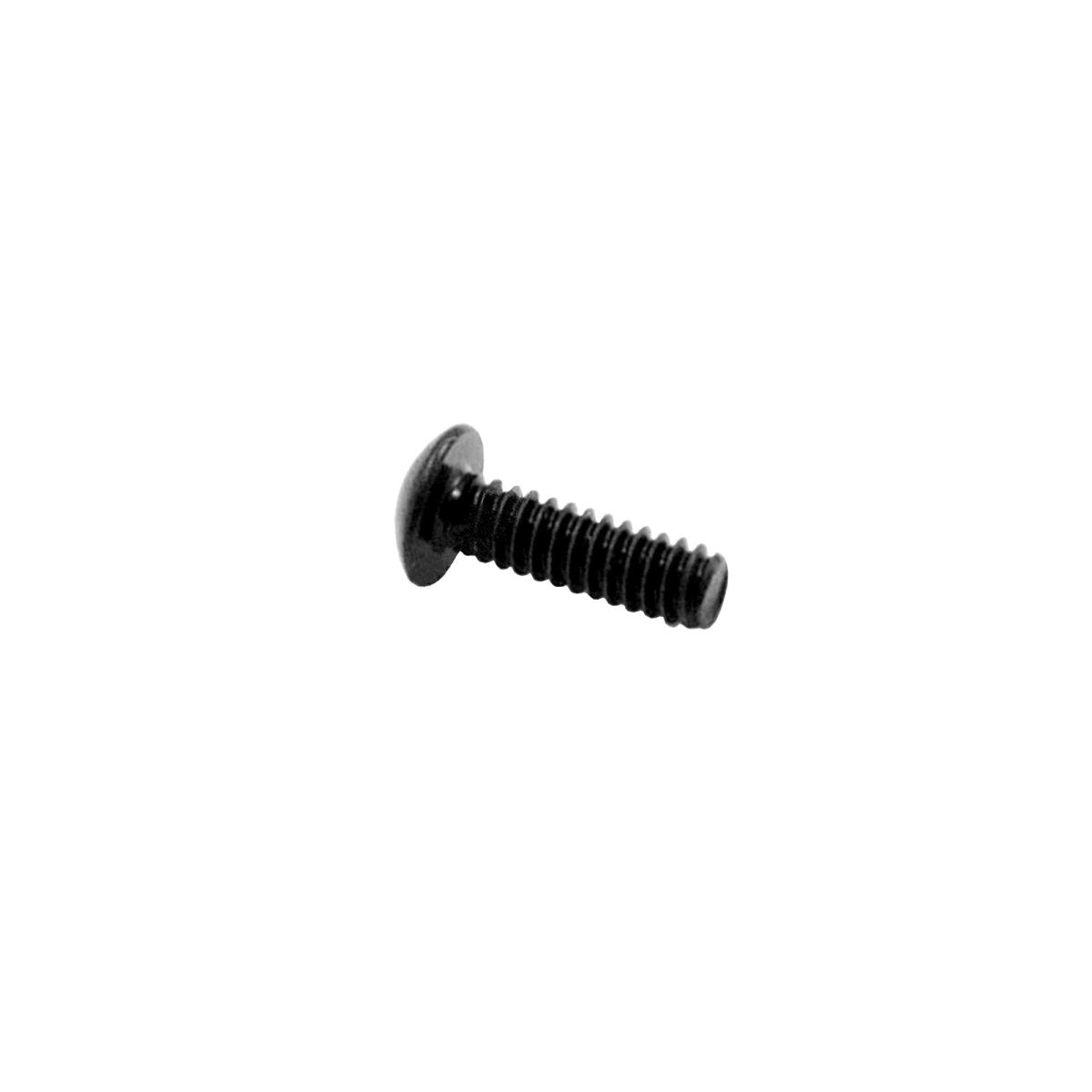

The Graco 295695 button head cap screw (4-40 x 3/8 in.) is a genuine fastener for the Graco GX-7 400 spray gun. Replacing lost or stripped screws with the correct Graco part keeps components properly clamped.Features Genuine Graco fastener Button head profile Replace stripped...

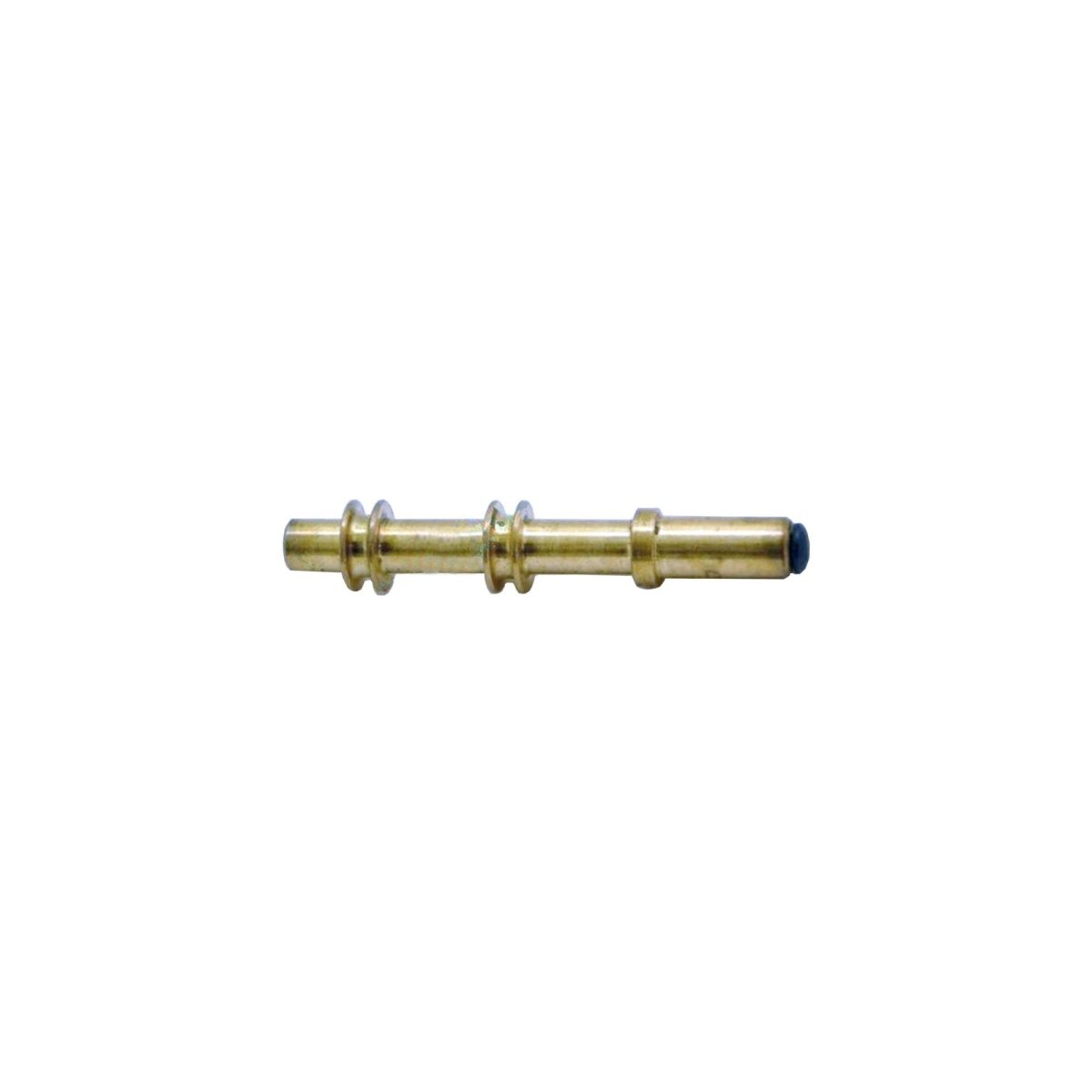

The Graco 295687 spool valve directs trigger air inside the Graco GX-7 spray gun handle. When you pull the trigger the spool shifts, sending air to the piston that opens the gun; a worn spool can leak or stick.Features Genuine Graco GX-7 spool valve...

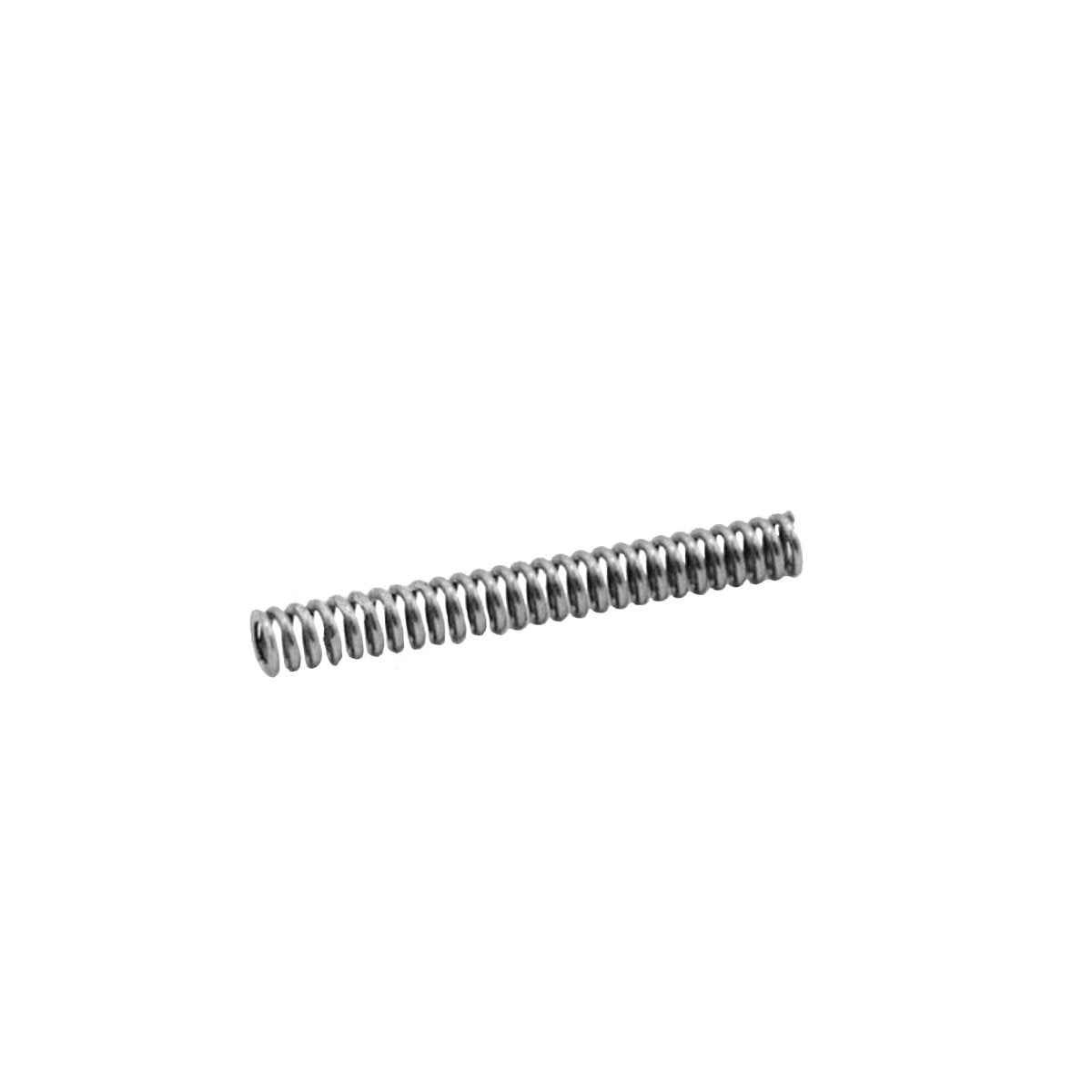

The Graco 296971 spring is the air valve spring for the Graco GX-7A air-purge spray gun. Graco includes it in the GX-7 trigger valve rebuild kit (296897), and it is available here on its own for quick repairs.Features Genuine Graco GX-7A air valve spring...

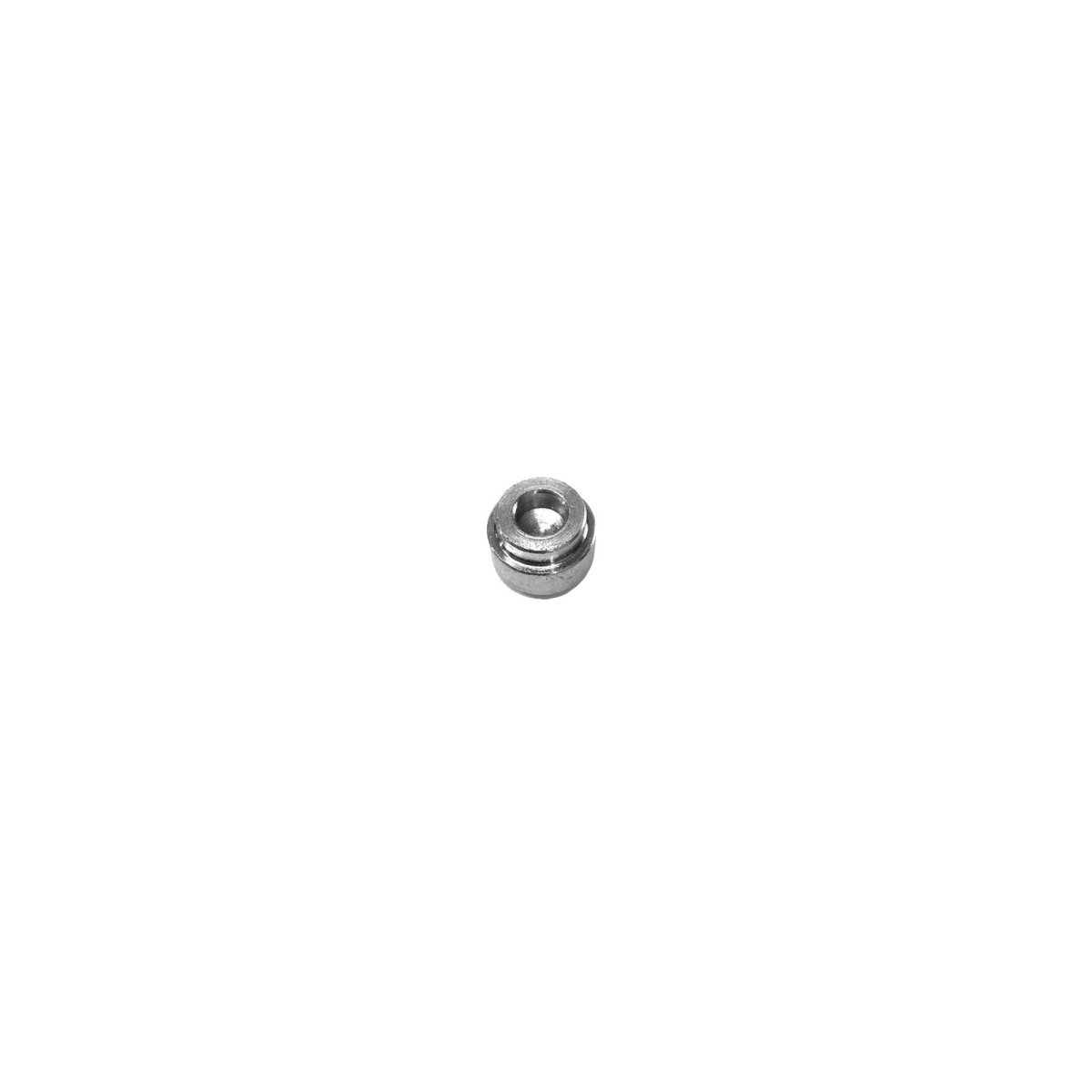

The Graco 295689 spring seat locates and supports a spring inside the Graco GX-7 plural-component spray gun. A worn seat lets the spring shift, which can make trigger action uneven.Features Genuine Graco GX-7 spring seat Keeps the spring aligned Replace if cracked or worn...

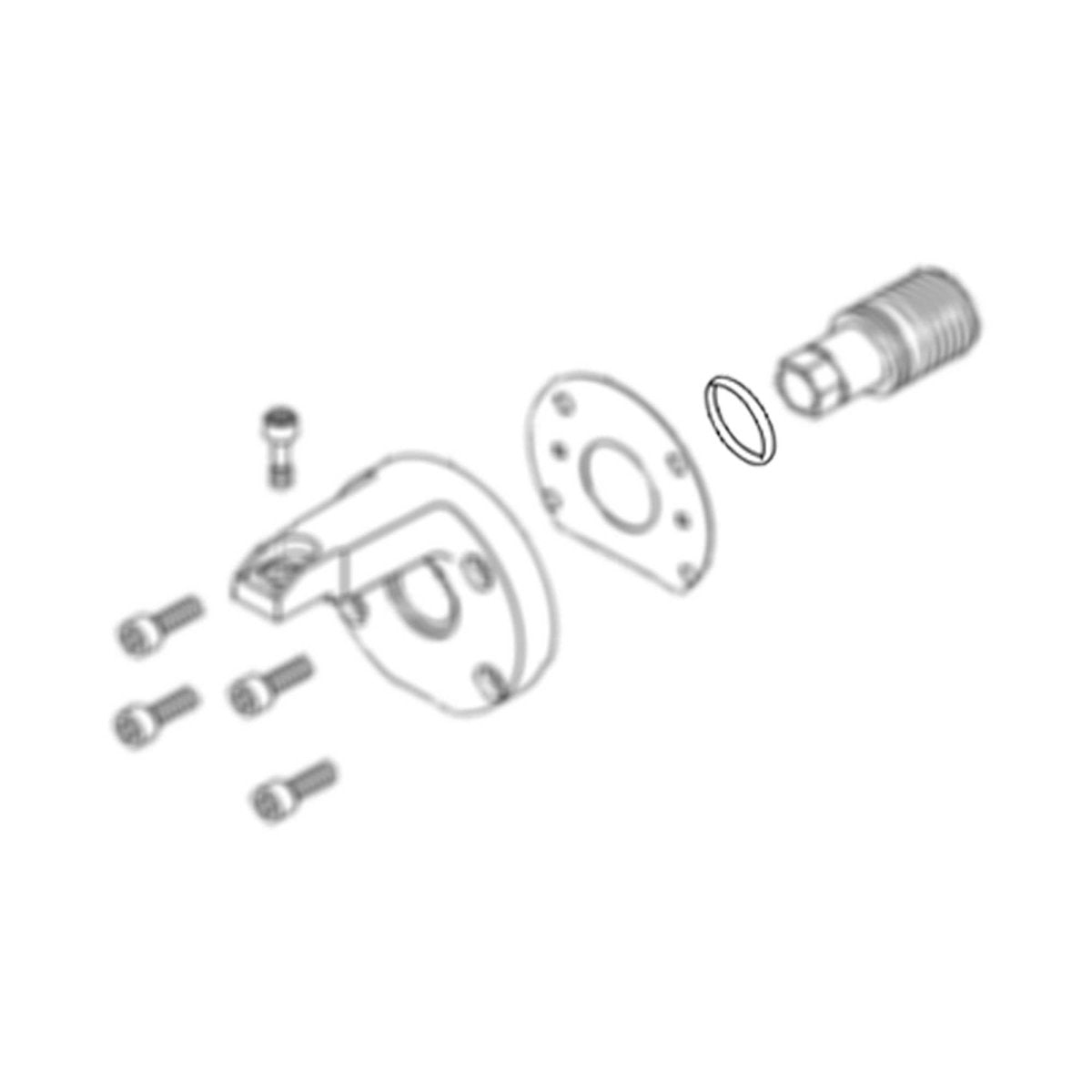

The Graco 514279 o-ring is a handle seal for the Graco GX-7 spray gun and is one of the o-rings in Graco's handle seal rebuild kit 296895. Buy it individually when only one seal needs replacing.Features Genuine Graco o-ring Seals the GX-7 handle air...

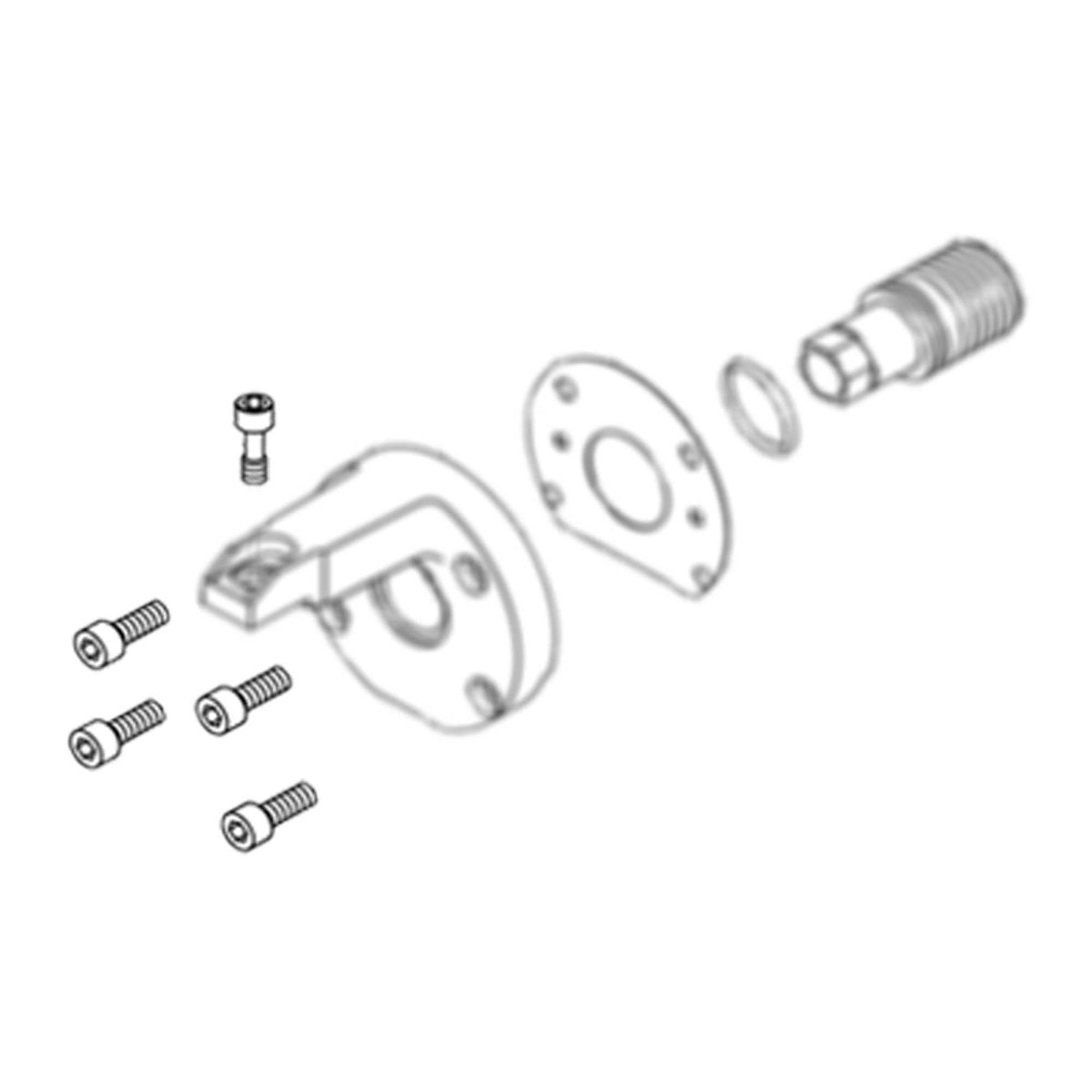

The Graco 295669 socket head cap screw is a modified cap screw used in the assembly of the Graco GX-7 plural-component spray gun. Using the correct Graco screw keeps parts aligned and clamped as designed.Features Genuine Graco GX-7 fastener Modified socket head design specific...

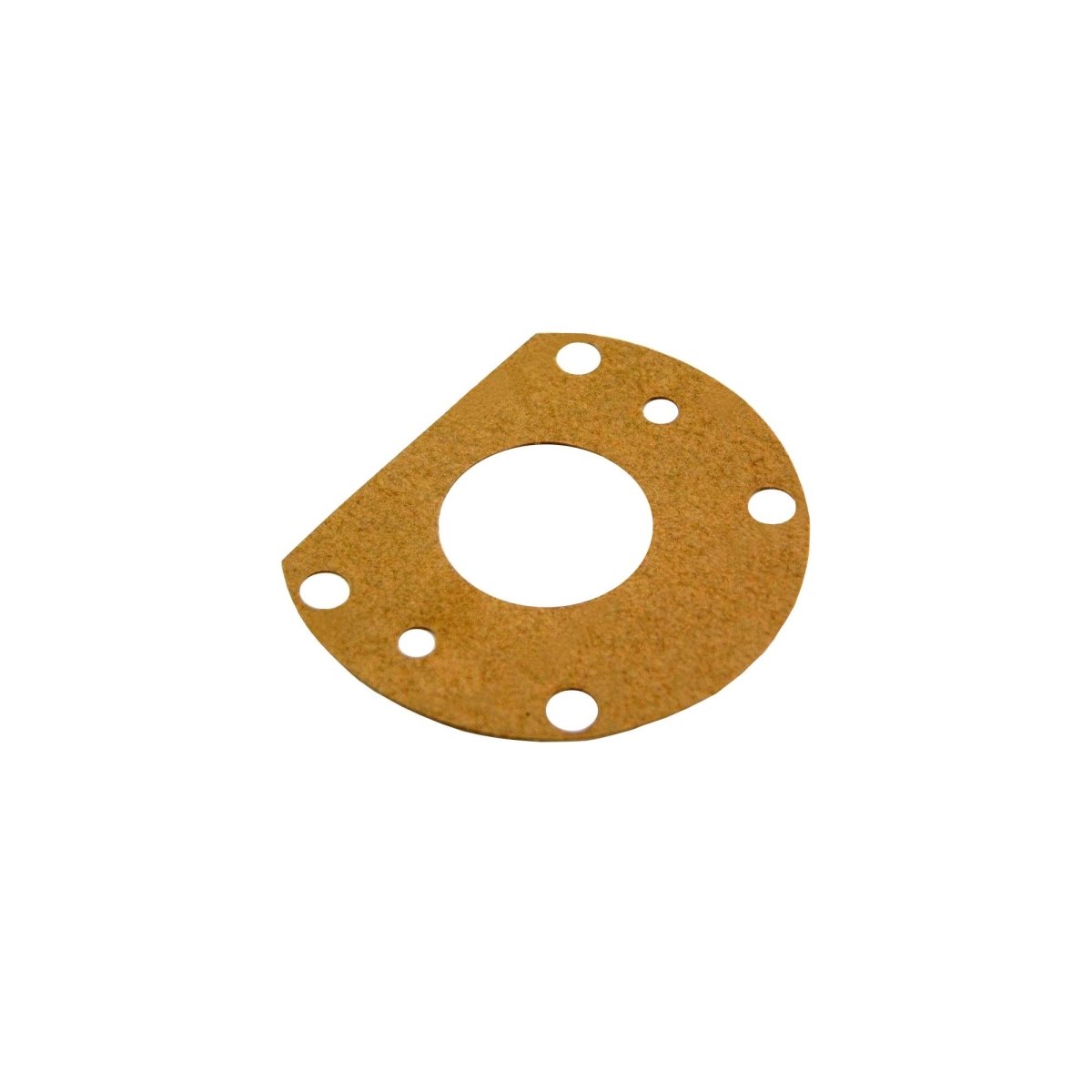

The Graco 295674 gasket is a genuine replacement seal for the Graco GX-7 plural-component spray gun. Gaskets compress between mating parts to keep air from escaping, so replace them whenever the gun is disassembled.Features Genuine Graco GX-7 gasket Helps prevent air leaks after reassembly...

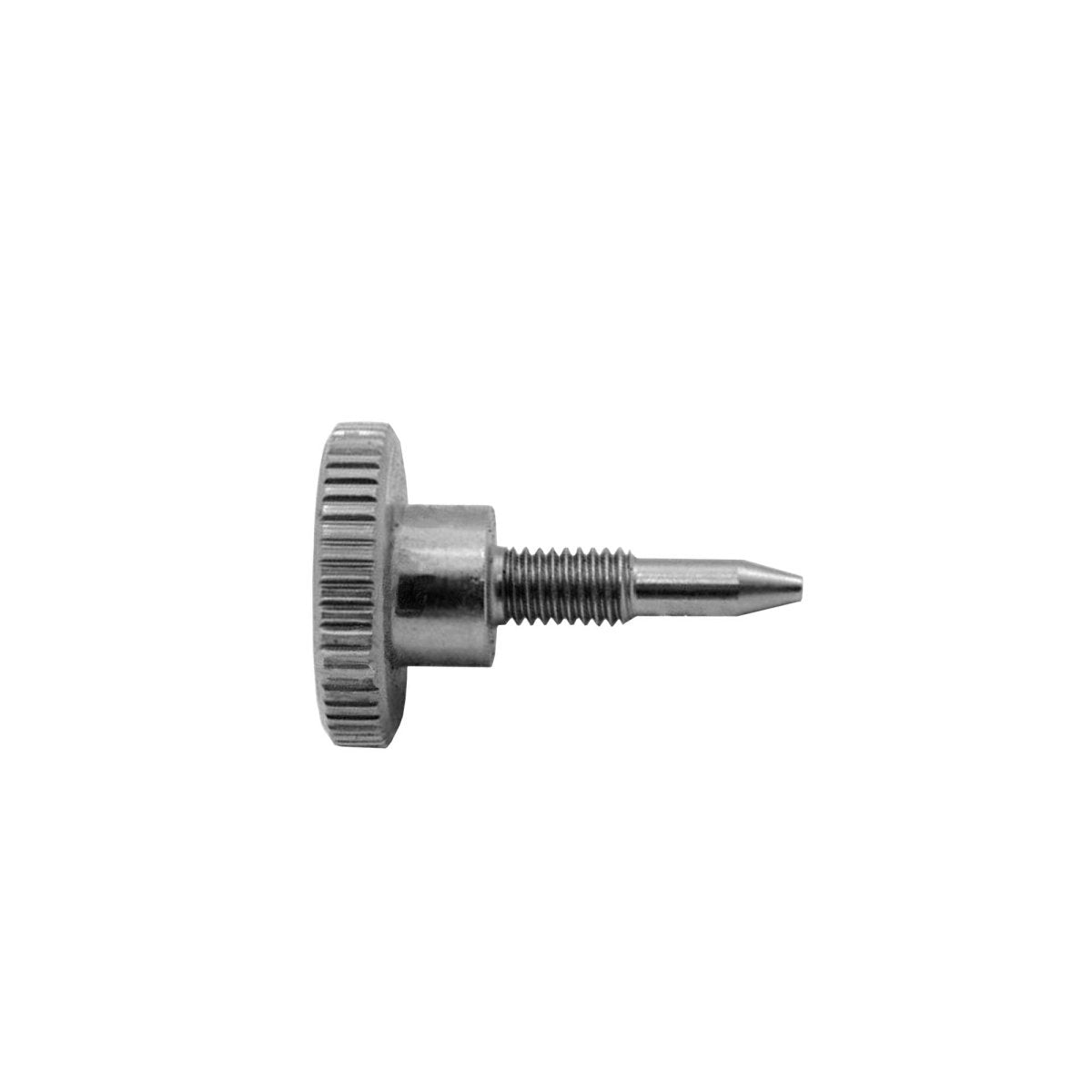

The Graco 295677 air needle valve meters air inside the Graco GX-7 plural-component spray gun. A bent or worn needle valve can cause uneven air flow, affecting how the gun purges and actuates.Features Genuine Graco GX-7 needle valve Restores precise air control Replace if...

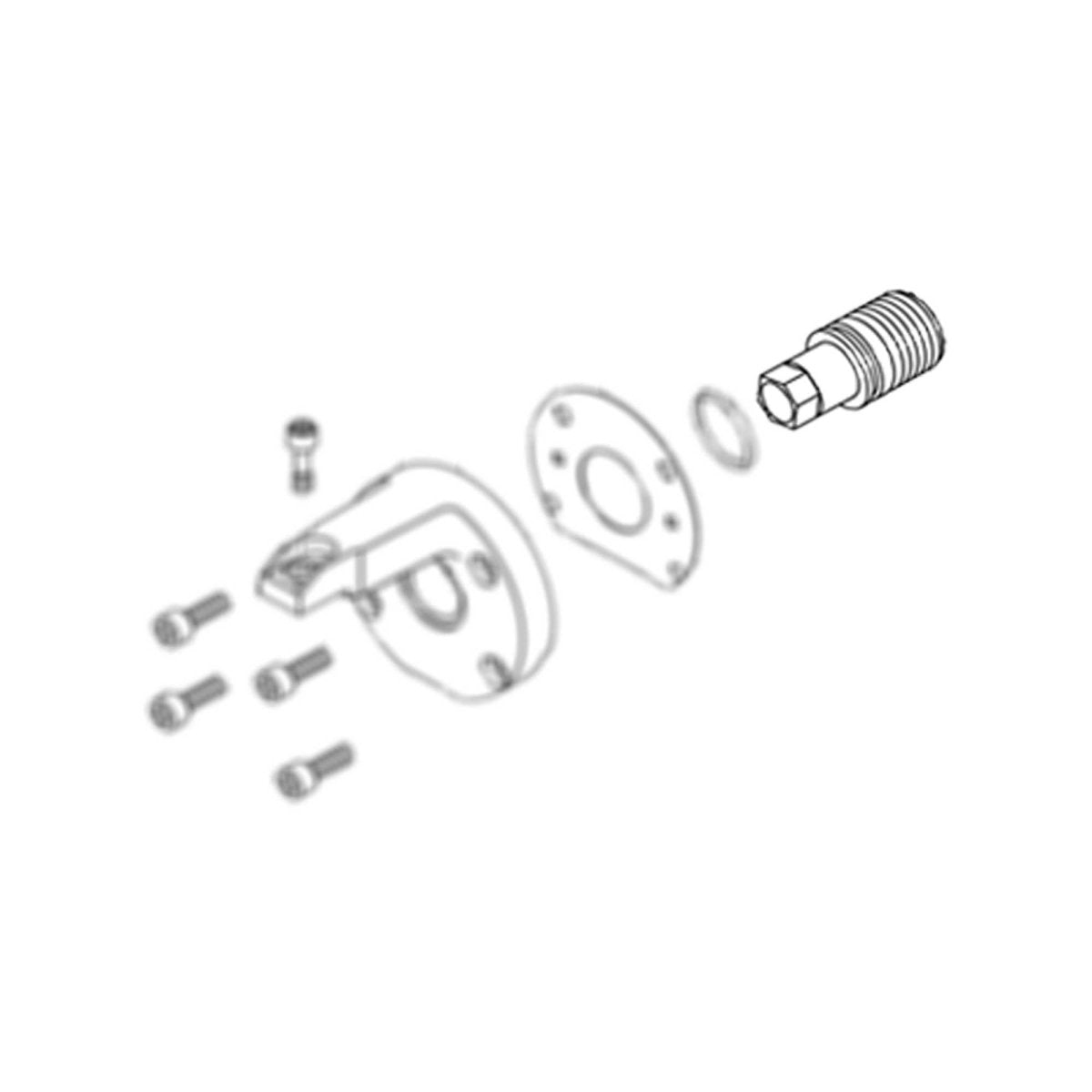

The Graco 295663 front cylinder stop sits at the front of the air cylinder on the Graco GX-7 spray gun and limits the travel of the air piston. Correct piston travel keeps valving and purge timing consistent from trigger pull to trigger pull.Features Genuine...

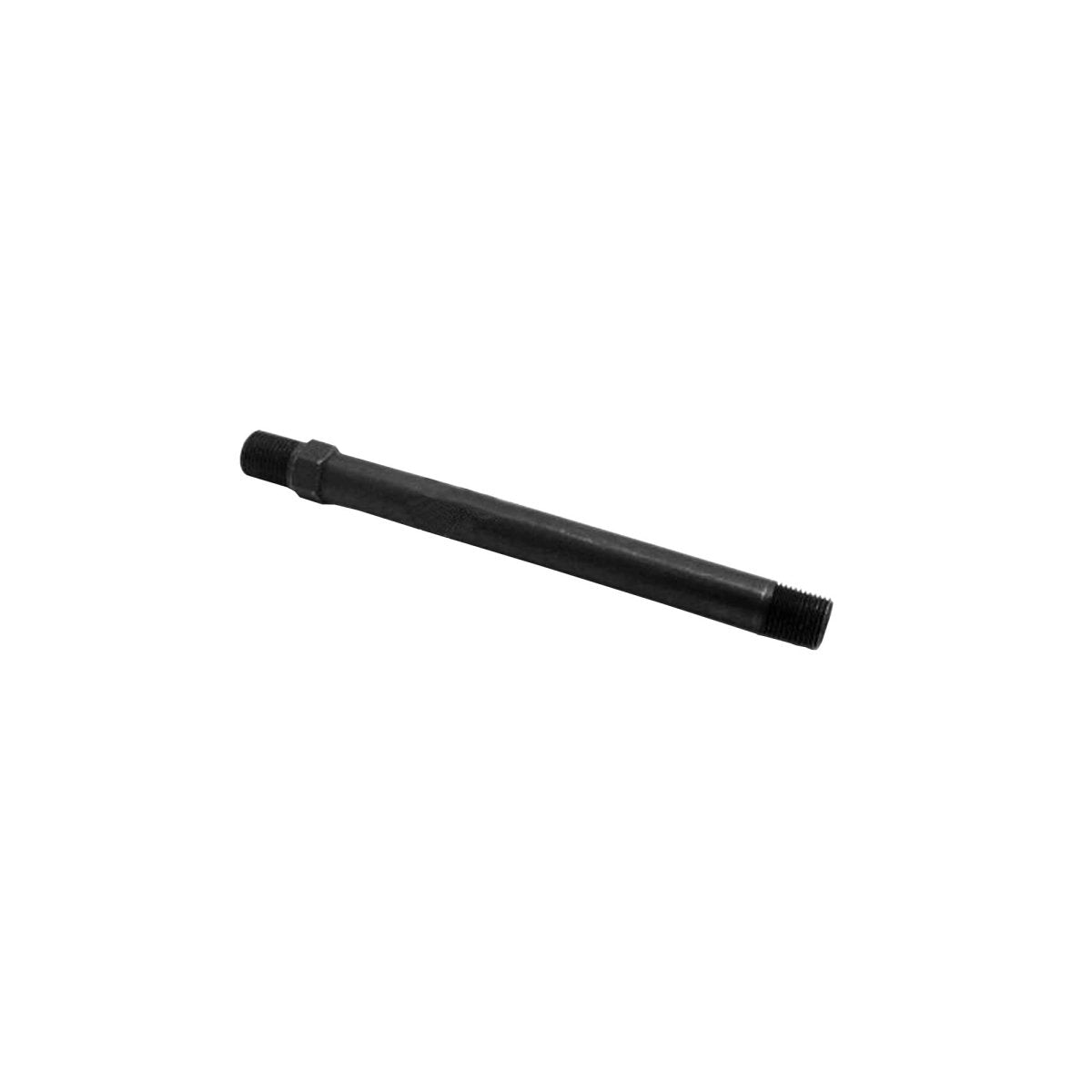

The Graco 295665 pipe nipple is a threaded fitting used in the air path of the Graco GX-7 spray gun. It connects components in the handle so trigger air reaches the air piston without leaks.Features Genuine Graco GX-7 fitting Replace when threads are damaged...

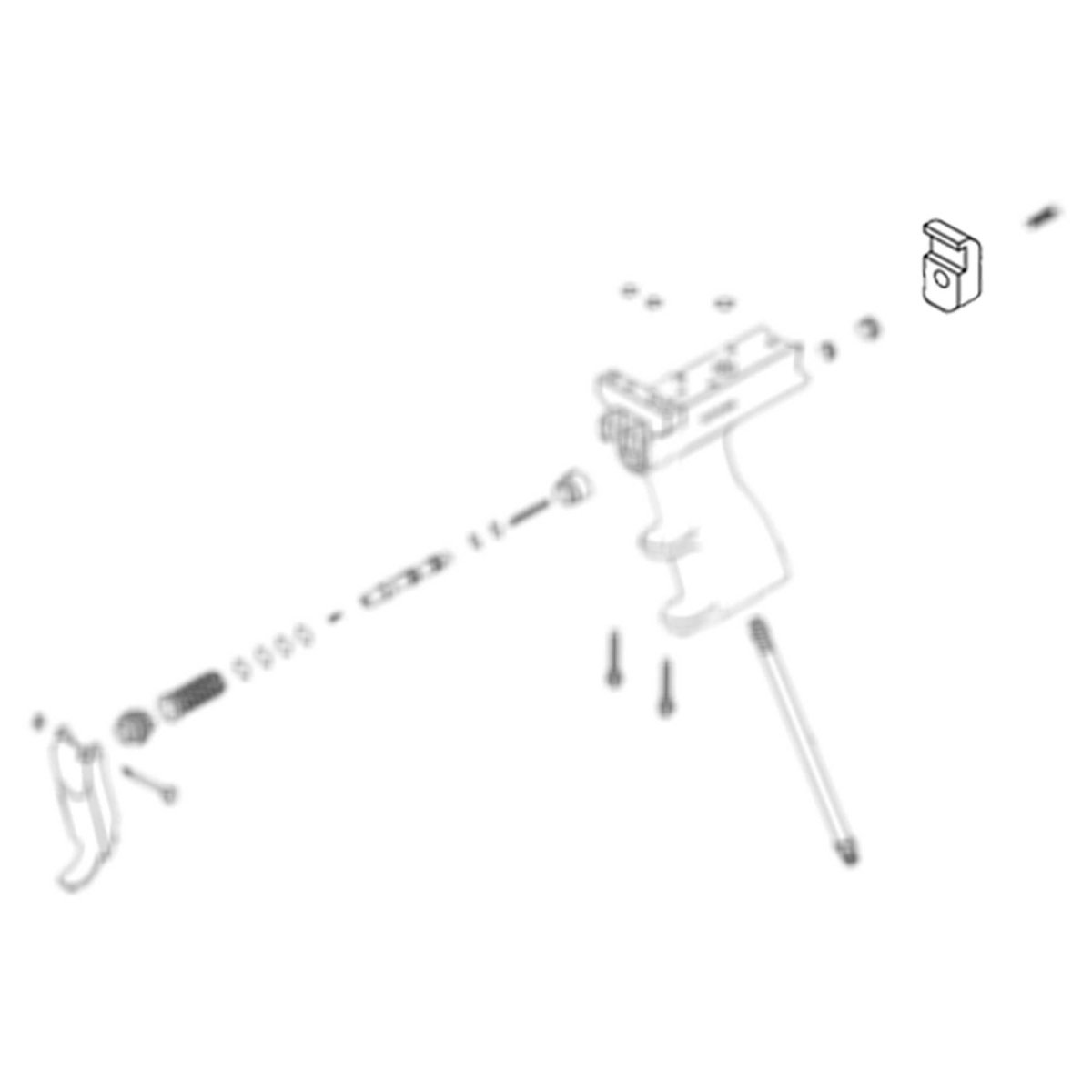

The Graco 295690 cylinder clamp secures the air cylinder assembly on the Graco GX-7 spray gun. A bent or cracked clamp can let the cylinder move, causing air leaks and misaligned piston travel.Features Genuine Graco GX-7 clamp Holds the air cylinder securely Replace if...

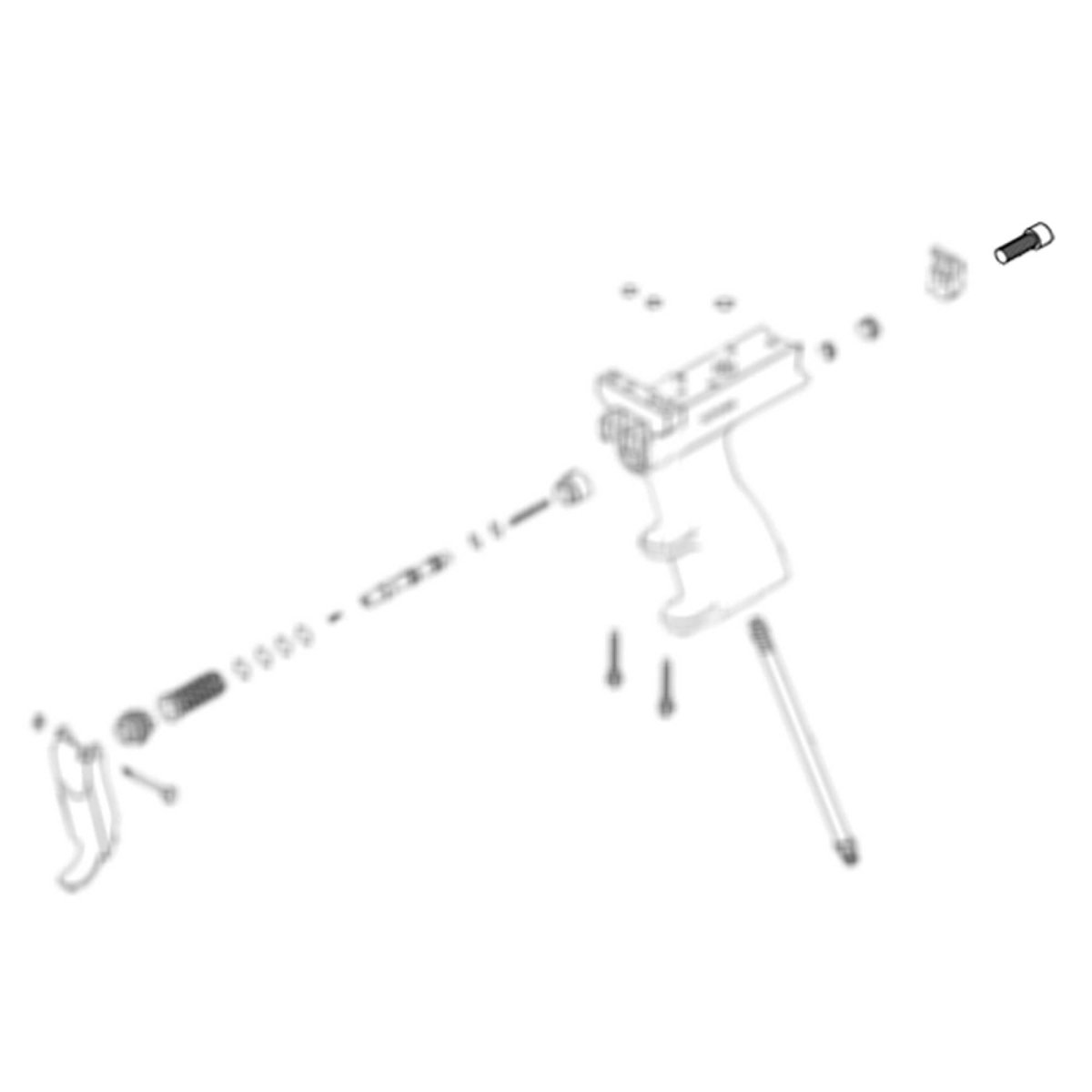

The Graco C20003 screw is a 10-32 x 1/2 in. socket head cap screw used on the Graco GX-7 plural-component spray gun. Keep a few on hand for gun rebuilds and field repairs.Features Genuine Graco fastener 10-32 x 1/2 in. socket head Replace stripped...

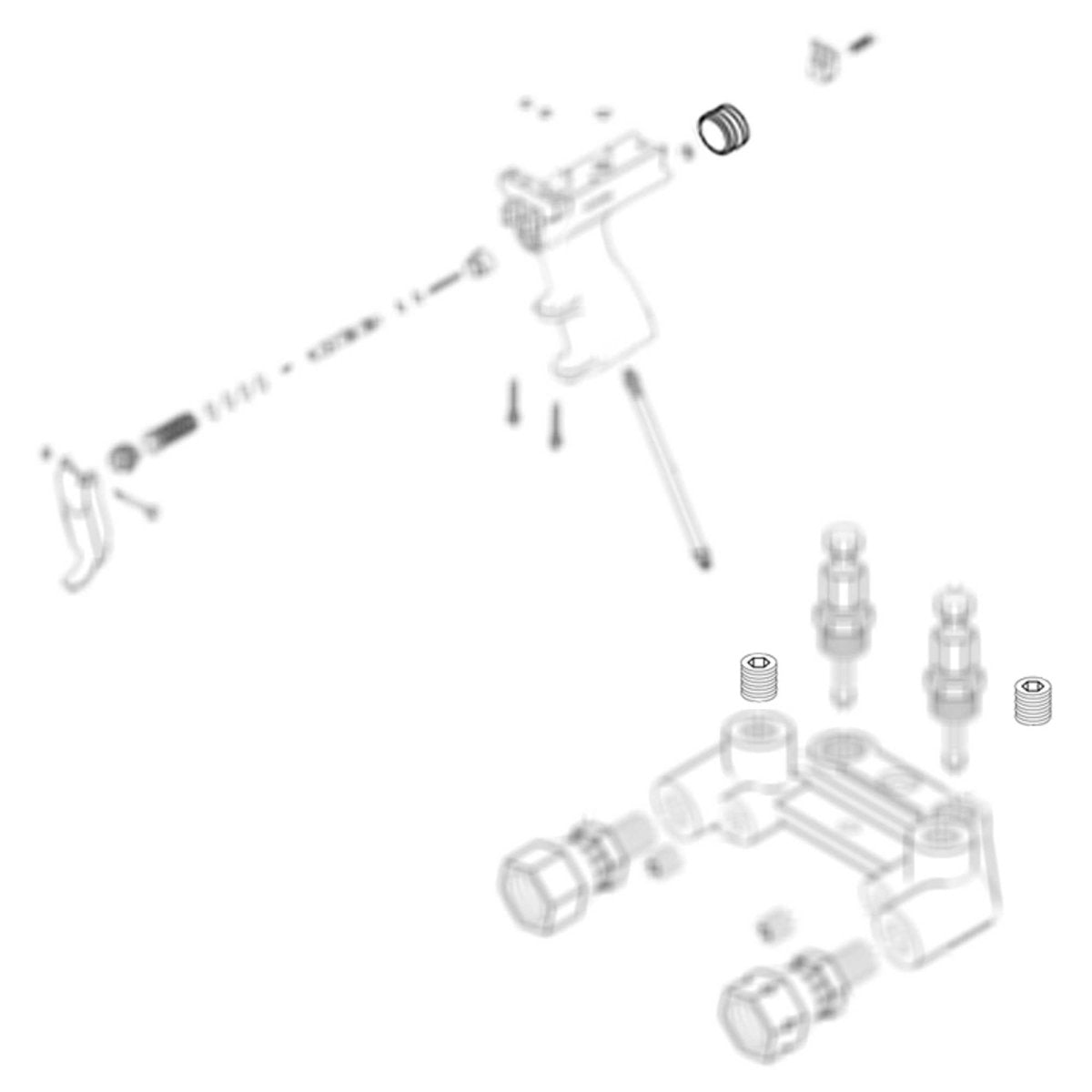

The Graco 295662 pipe plug is a 1/8 in. flush-seal plug used on the Graco GX-7 spray gun. It closes off a threaded port in the gun so air and fluid stay where they belong.Features 1/8 in. flush-seal design Genuine Graco GX-7 replacement Replace...

The Graco 295693 plug is a 1/16 in. flush-seal pipe plug used on the Graco GX-7 plural-component spray gun. It seals a small threaded port so air and material cannot escape.Features 1/16 in. flush-seal plug Genuine Graco GX-7 part Replace if lost or leaking...

The Graco 295685 o-ring is a genuine replacement seal for the Graco GX-7 spray gun. Swapping o-rings whenever you open the gun is the easiest way to prevent air leaks after service.Features Genuine Graco GX-7 o-ring Restores a reliable seal Replace during every rebuild...

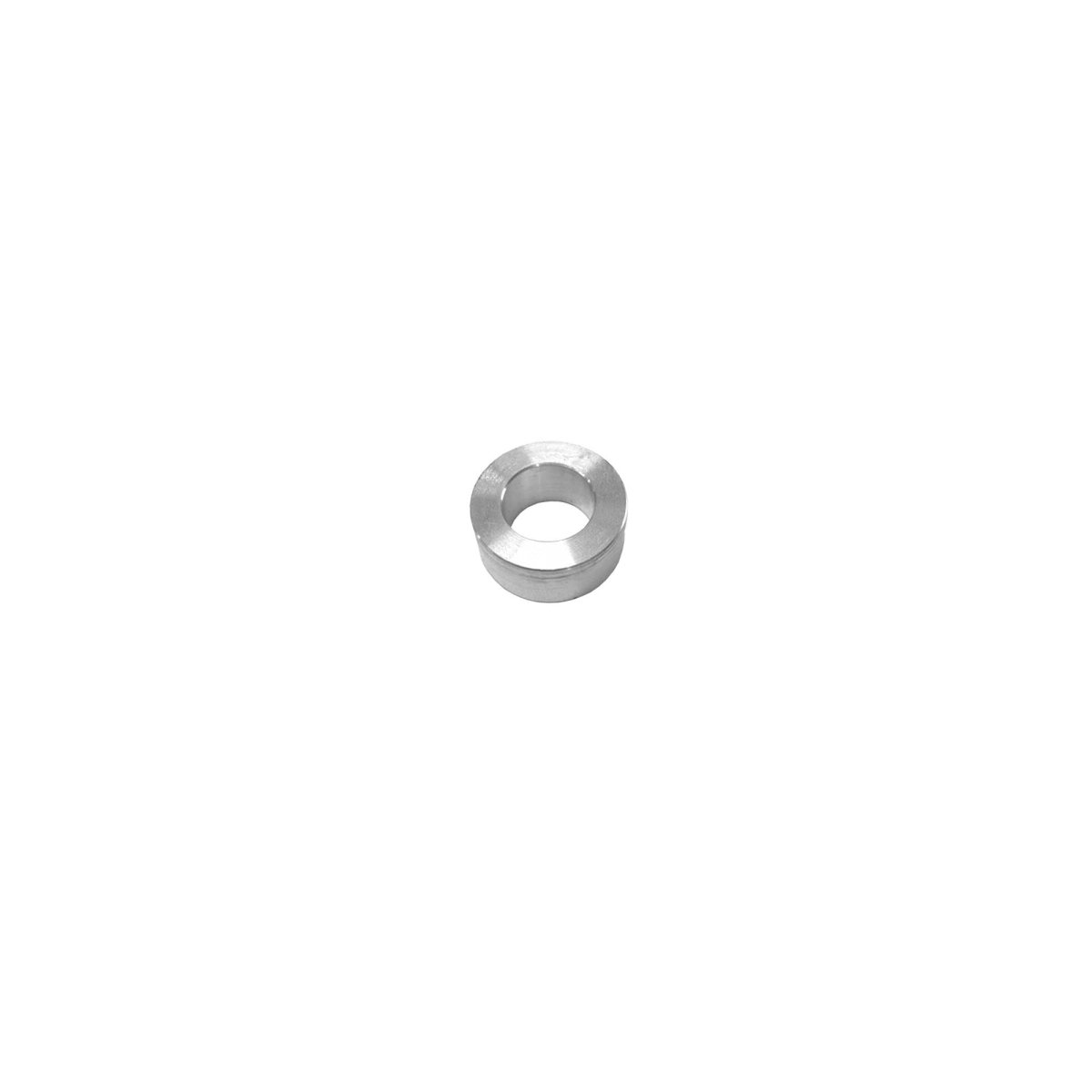

The Graco 295708 spacer is a genuine replacement part for the Graco GX-7 400 plural-component spray gun. It maintains correct spacing between assembled components so parts seat and align as designed.Features Genuine Graco GX-7 400 part Maintains correct component spacing Replace if lost or...

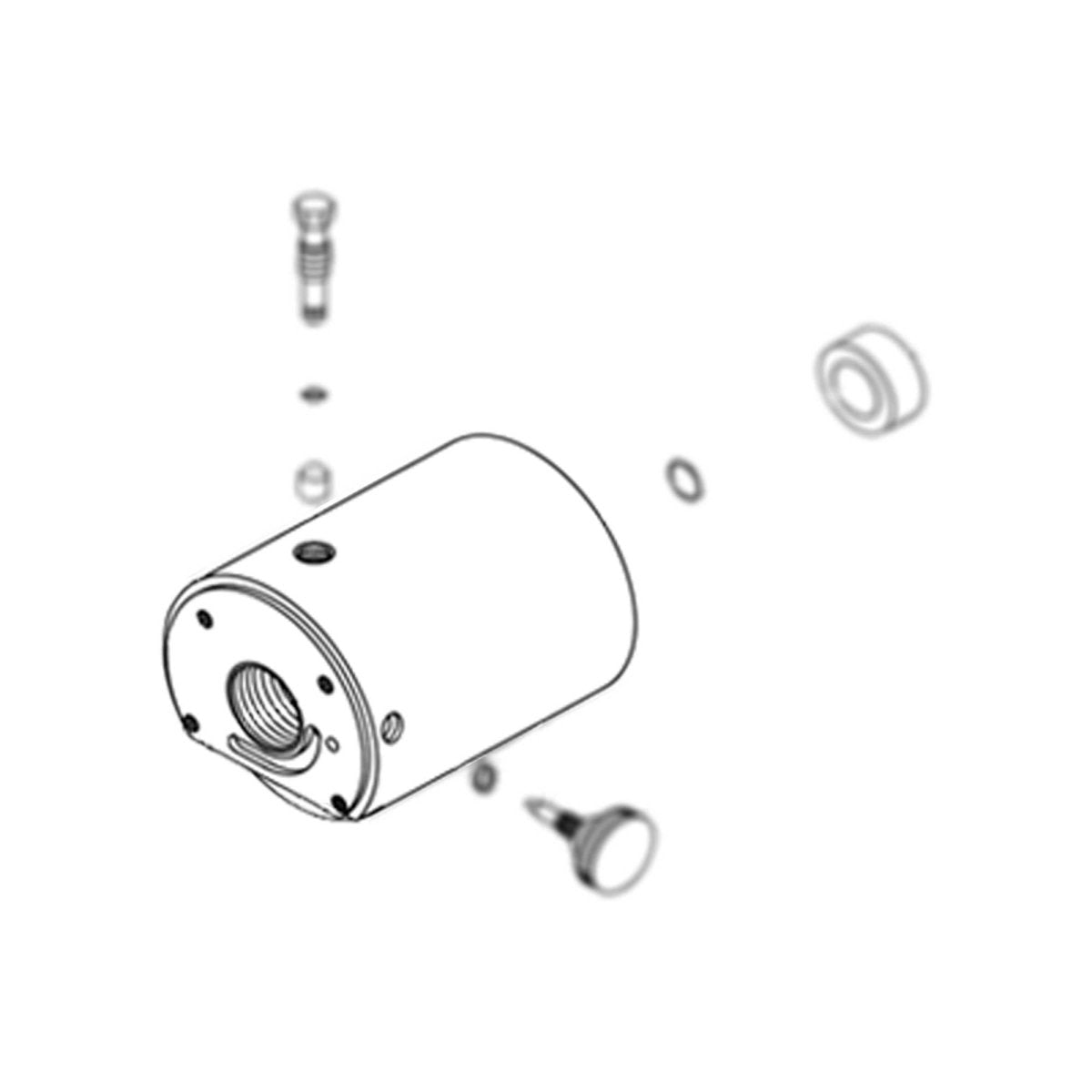

The Graco 295675 air cylinder houses the air piston (295664) on the Graco GX-7 spray gun. Trigger air enters the cylinder and drives the piston to open and close the gun, so a damaged cylinder causes leaks and weak actuation.Features Genuine Graco GX-7 air...
