Graco GX-7 Gun Parts

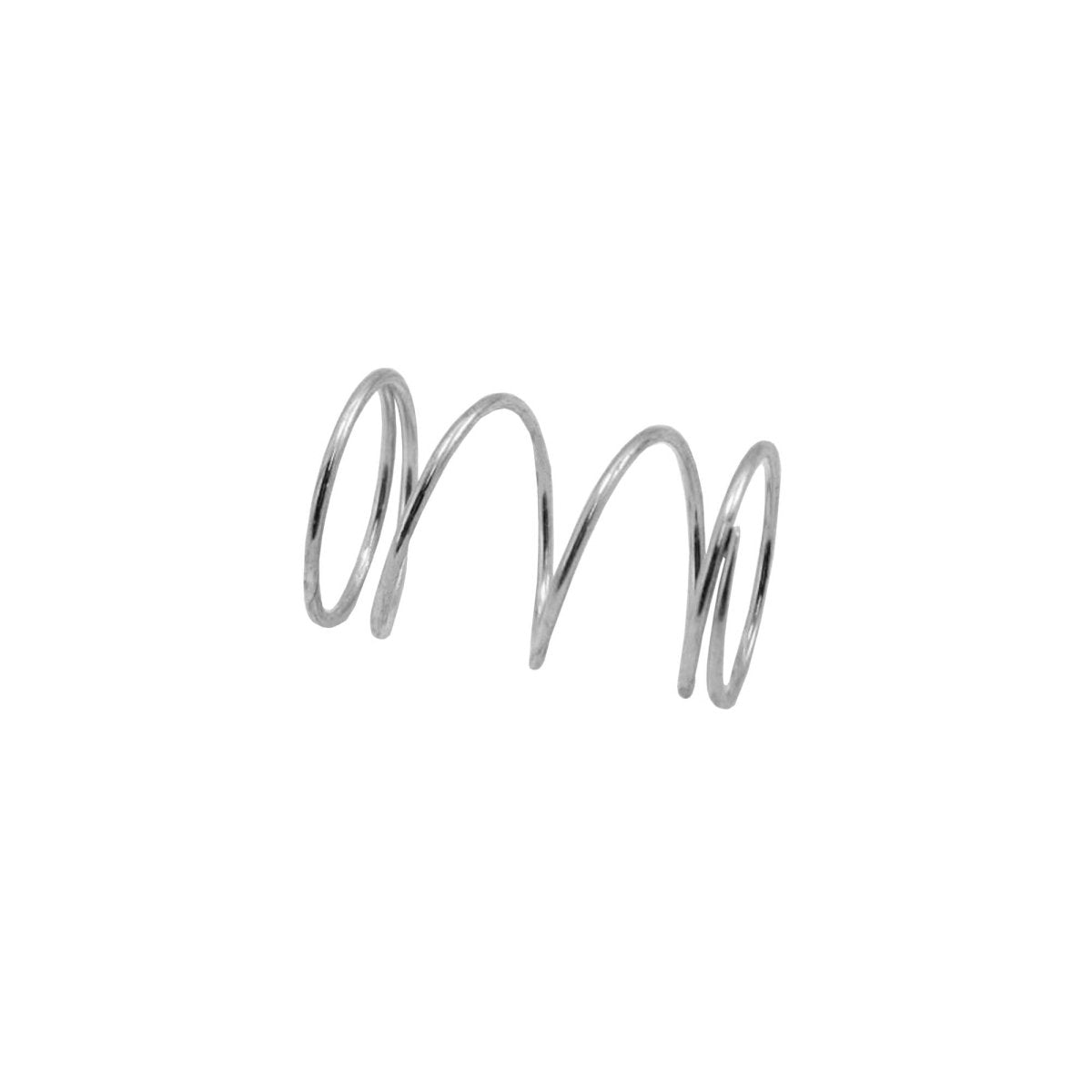

The Graco 295676 spring is a genuine replacement spring for the Graco GX-7 spray gun. Replacing tired springs during service keeps the gun's return action crisp and predictable.Features Genuine Graco GX-7 spring Restores consistent spring tension Good preventive replacement at rebuild time Distinct from...

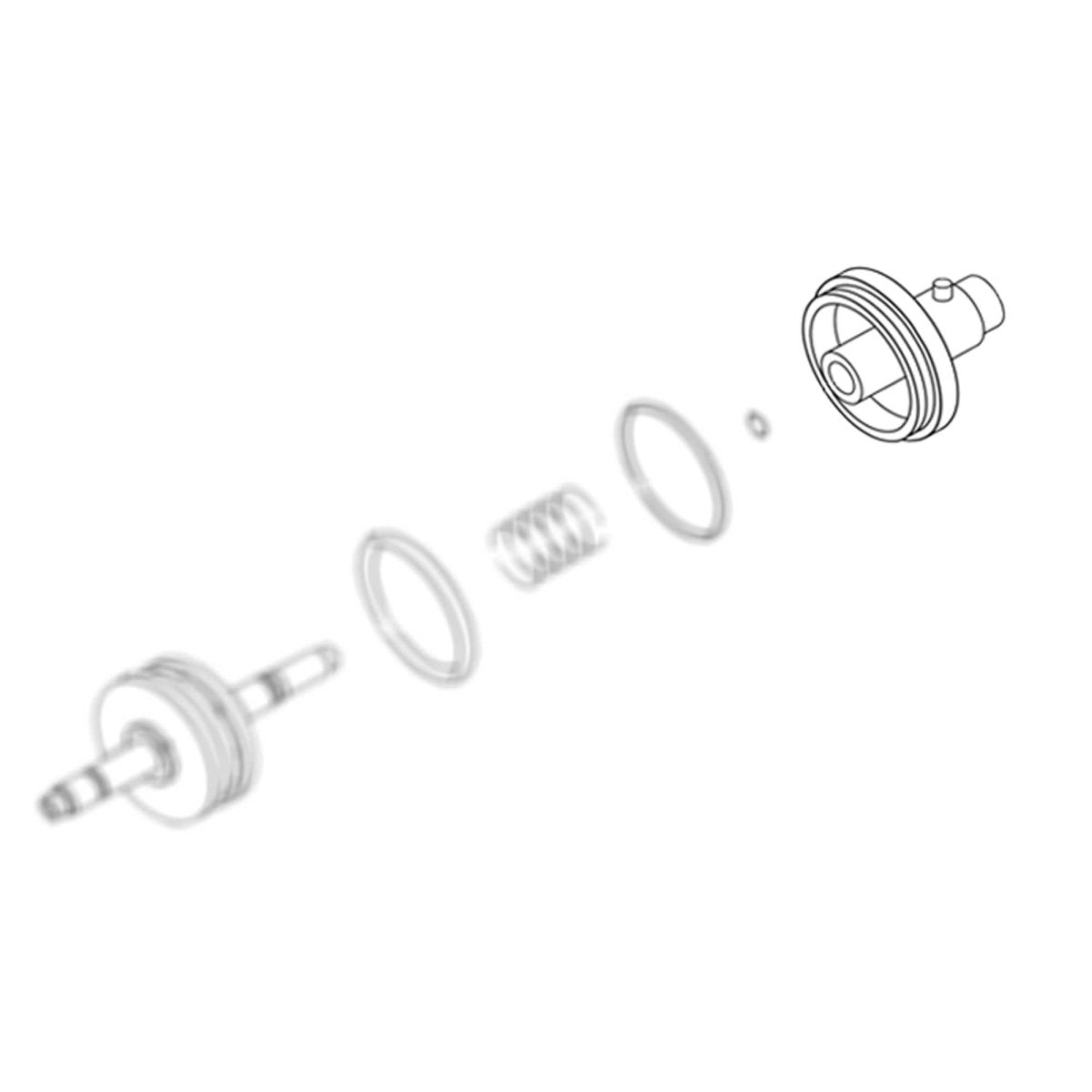

The Graco 295678 cylinder end cap assembly closes off the air cylinder of the Graco GX-7 plural-component spray gun. It seals the cylinder so trigger air can drive the air piston efficiently.Features Genuine Graco GX-7 end cap assembly Seals the air cylinder Replace if...

The Graco 295681 o-ring is a handle seal for the Graco GX-7 spray gun. Graco includes it in the GX-7 handle seal rebuild kit (296895), and it is sold here individually for targeted repairs.Features Genuine Graco GX-7 o-ring Seals air passages in the gun...

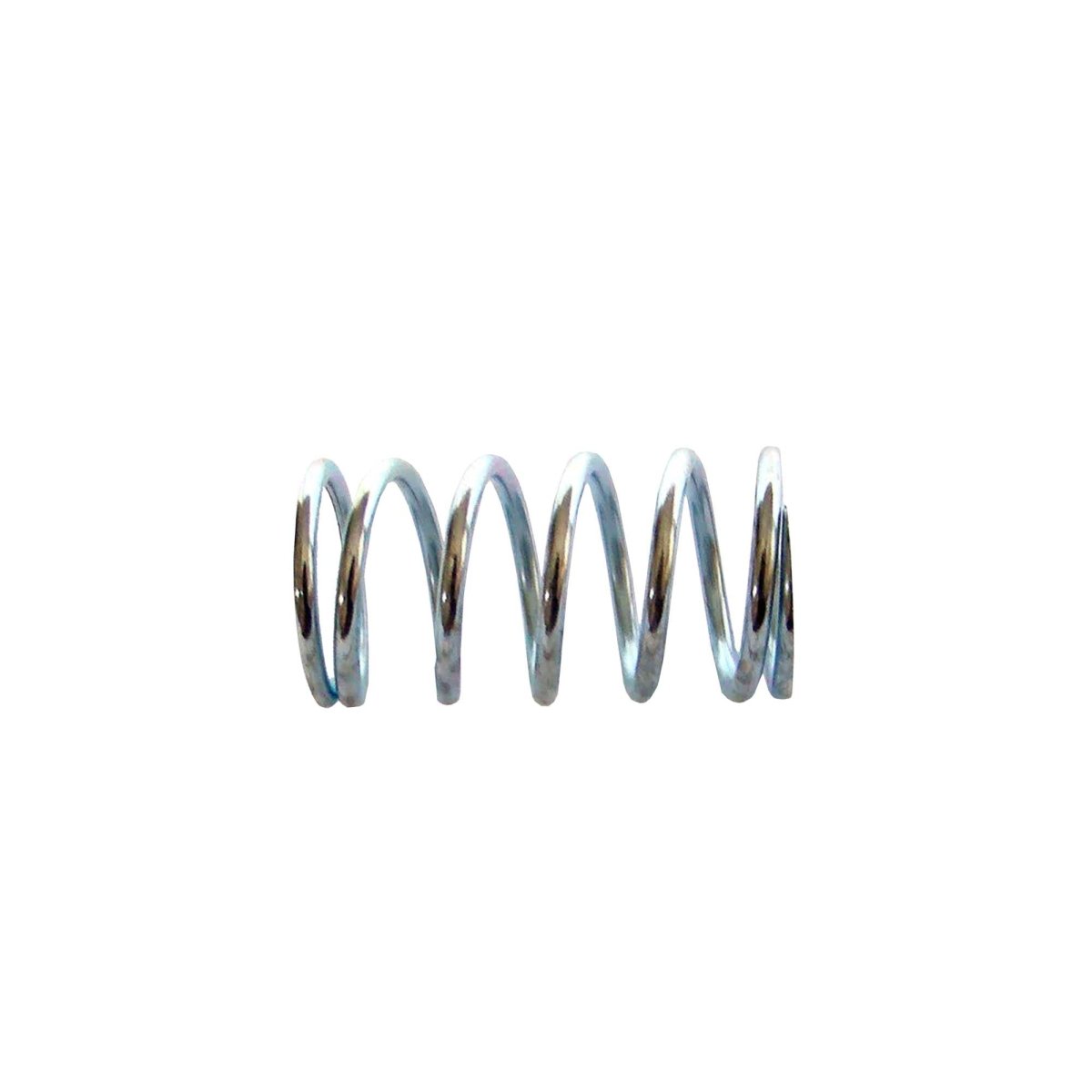

The Graco 295668 spring is a genuine replacement spring for the Graco GX-7 plural-component spray gun. Springs in the GX-7 return moving parts to their resting position; a fatigued spring can leave the gun slow to close.Features Genuine Graco GX-7 spring Restores reliable return...

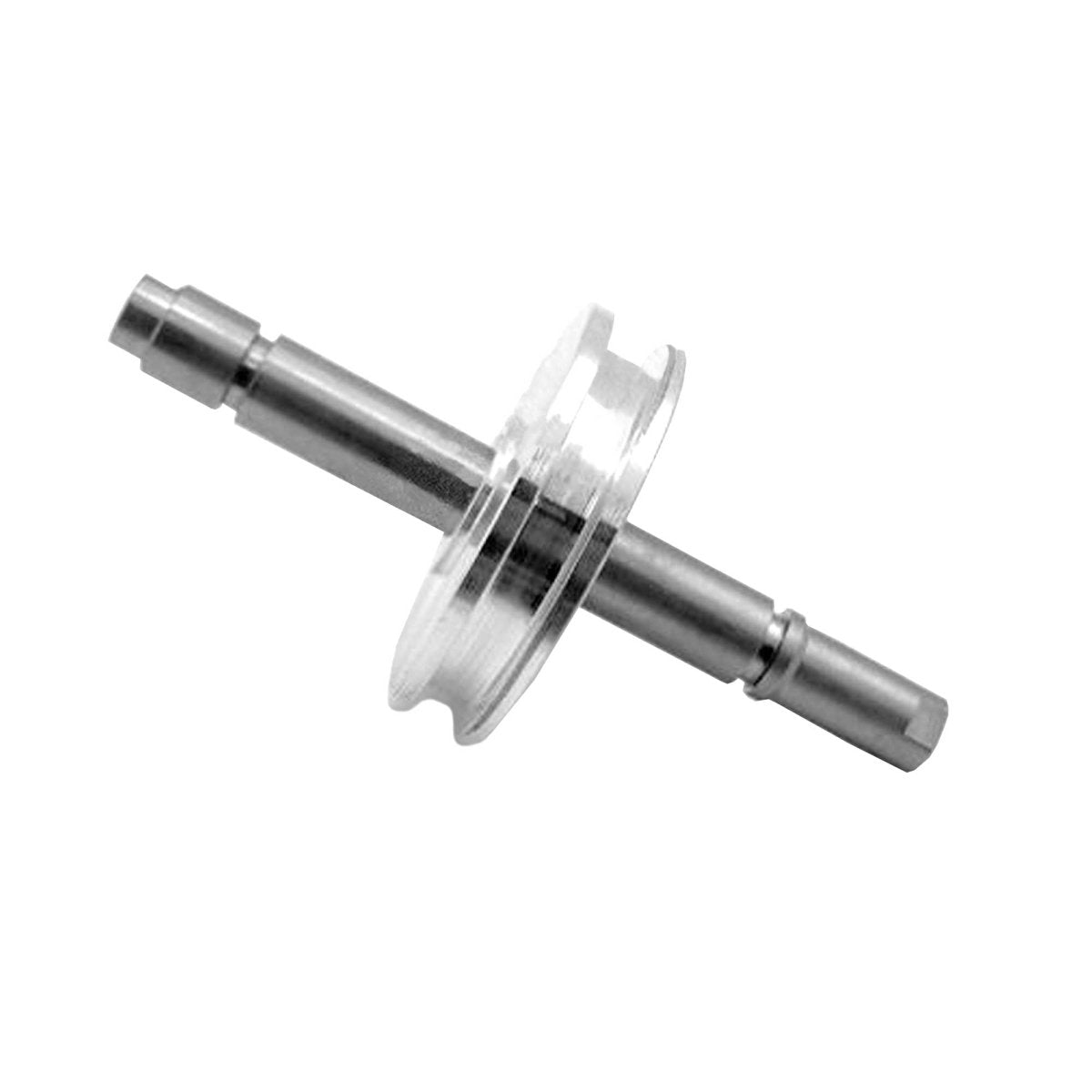

The Graco 295664 air piston assembly is the pneumatic piston that opens and closes the Graco GX-7 spray gun when you pull the trigger. A worn or damaged piston can cause sluggish triggering, air leaks or incomplete shut-off.Features Genuine Graco GX-7 air piston assembly...

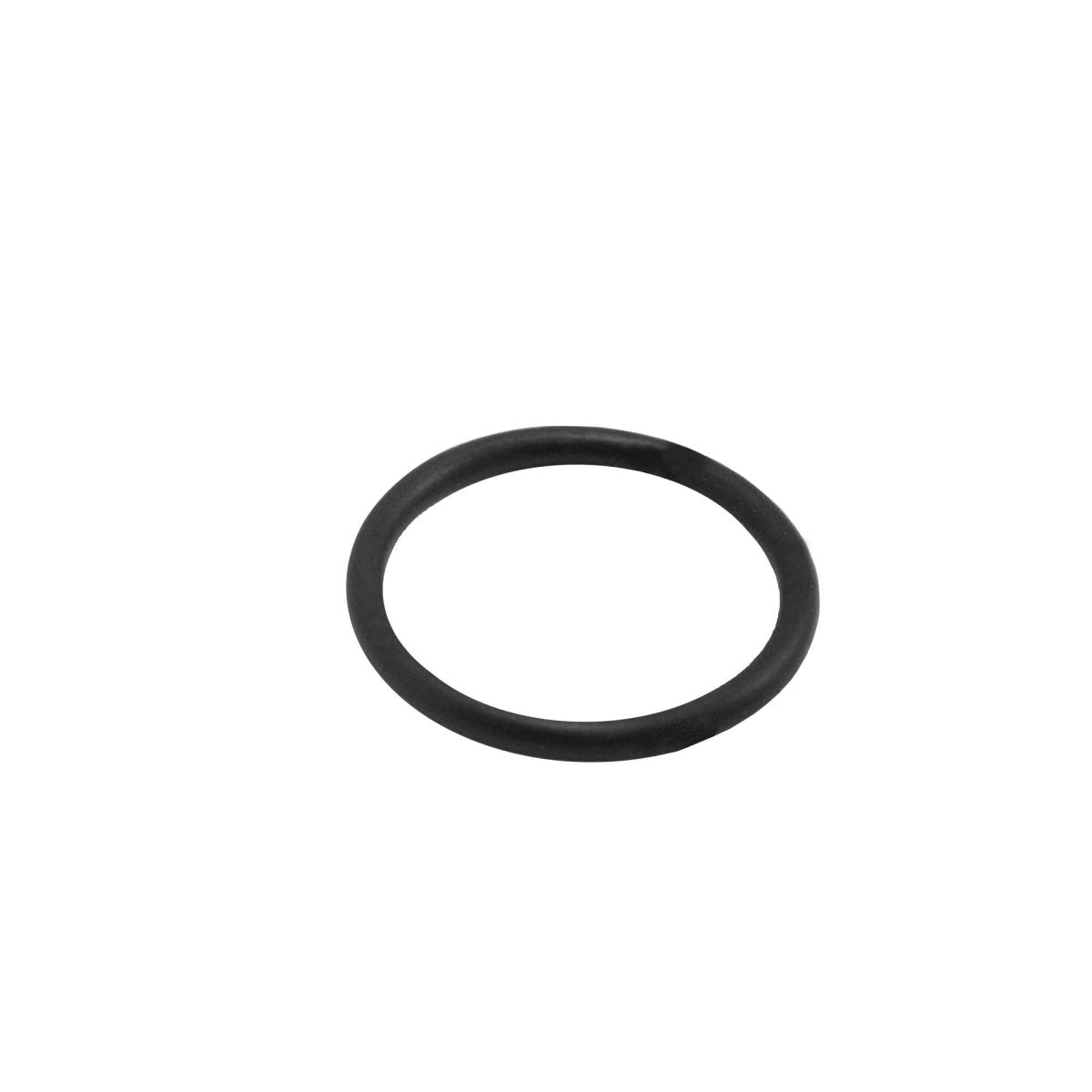

The Graco 295683 o-ring is one of the handle seals in the Graco GX-7 plural-component spray gun. It is part of Graco's handle seal rebuild kit 296895 and is offered here as a single replacement.Features Genuine Graco o-ring for the GX-7 handle Restores an...

The Graco 208536 air line coupler is the quick-disconnect coupler for the air line on the GX-7 plural-component spray foam gun.Keeping GX-7 wear parts on hand helps crews avoid downtime on spray foam jobs.Features Replaces a leaking or damaged air line coupler Restores a...

Graco 24K734 is the cylinder handle kit for the GX-7 plural-component spray foam gun, replacing the handle assembly at the gun's air cylinder.Keeping GX-7 wear parts on hand helps crews avoid downtime on spray foam jobs.Features Replaces a cracked or worn cylinder handle Restores...

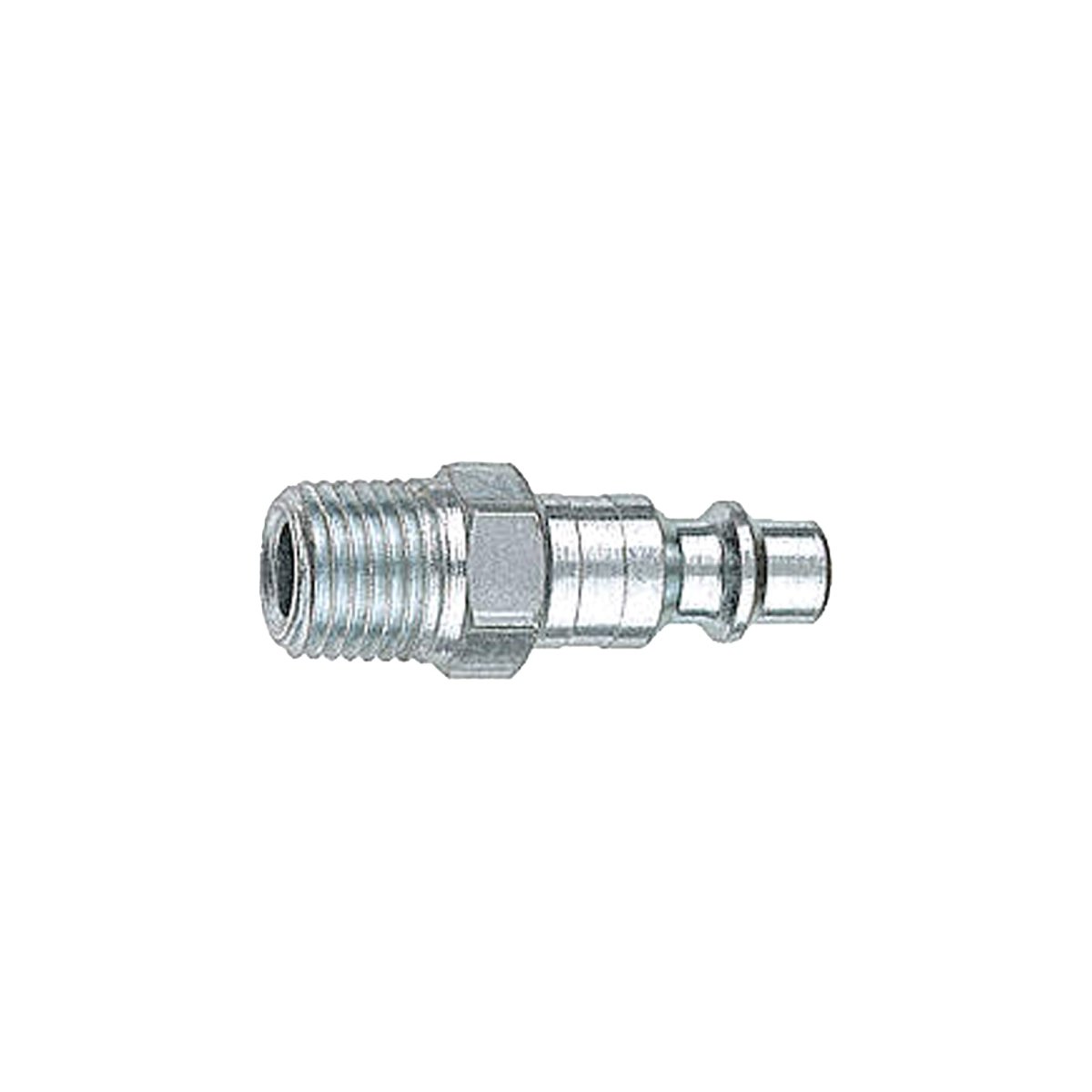

The Graco 295596 coupler plug is the air connection plug used on the Graco GX-7 spray gun. It mates with the air line coupler so the gun receives the shop air that drives the trigger piston and purge functions.Features Genuine Graco GX-7 air fitting...

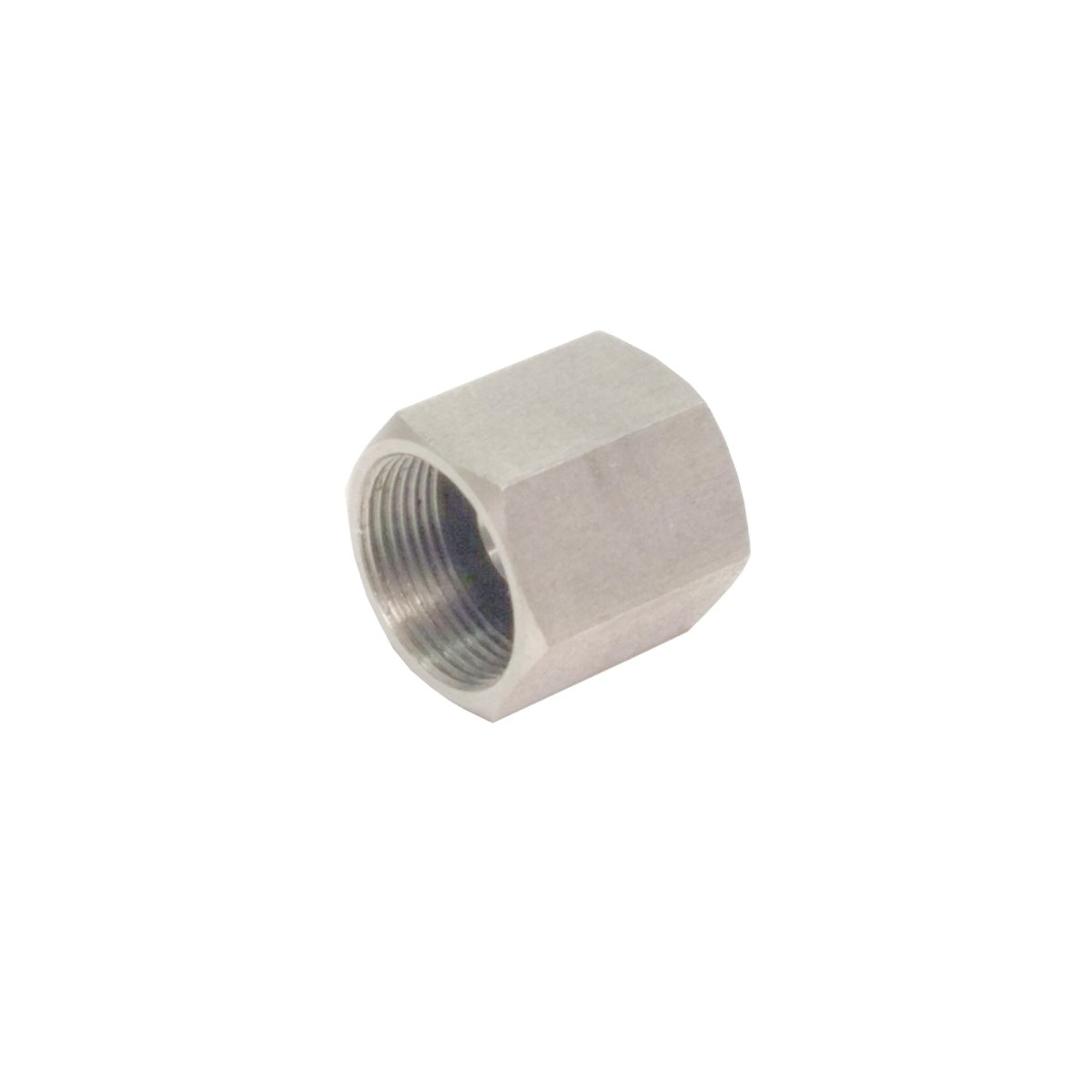

The Graco 296830 rear seal retainer secures the rear seal assembly on the Graco GX-7 gun block. Together with the rear packing retainer (296828) and rear seal packing (296829), it keeps the back of the gun sealed around the valving rod.Features Genuine Graco GX-7...

The Graco 296829 rear seal packing seals around the valving rod at the rear of the Graco GX-7 gun block. When material starts weeping from the back of the gun, the rear packing is usually the first part to replace.Features Pack of 5 genuine...

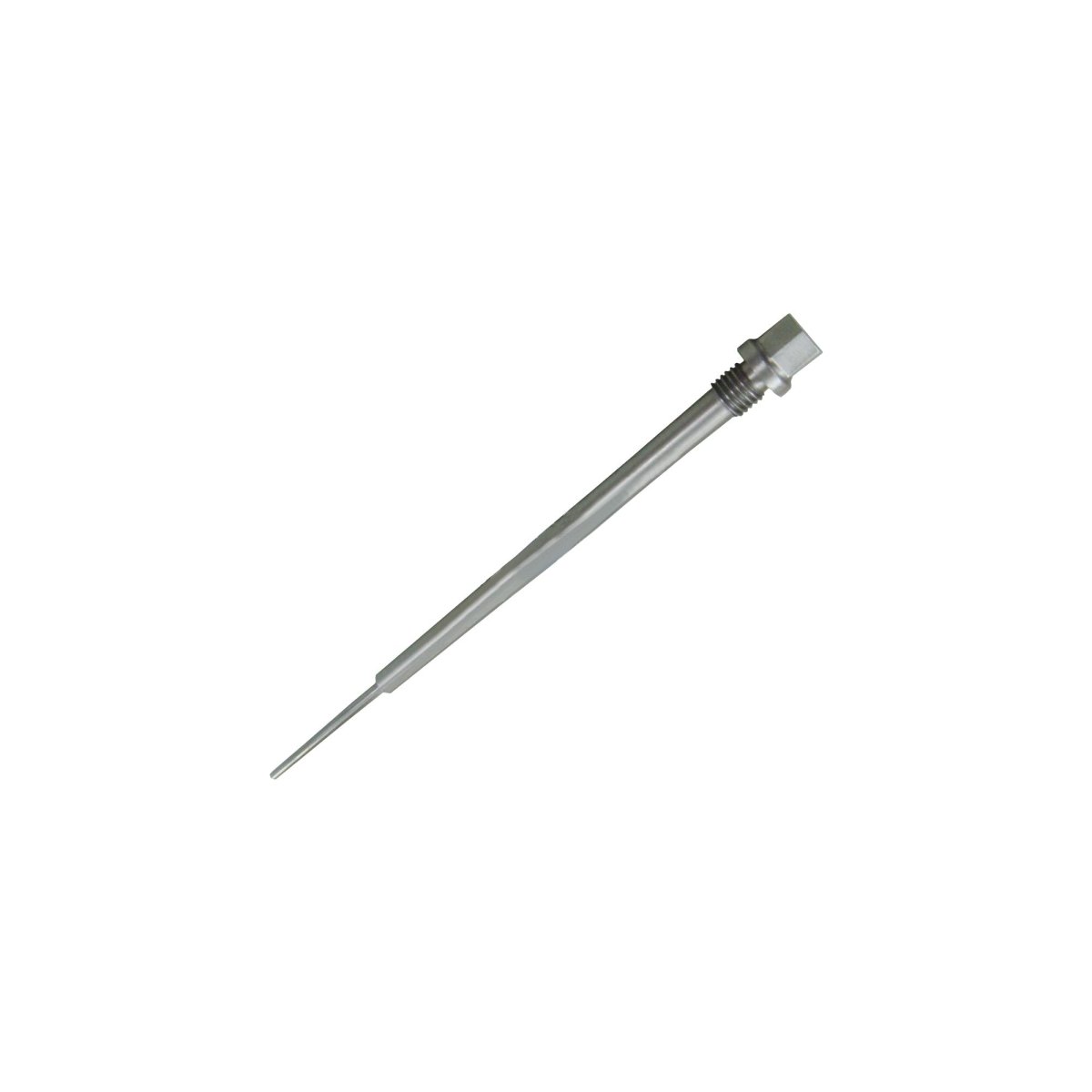

The Graco 16K136 valving rod is a genuine Graco replacement part. Order it by part number to match the valving rod called out in your Graco gun's parts list.Features Genuine Graco valving rod Ordered by Graco part number for an exact match Replace a...

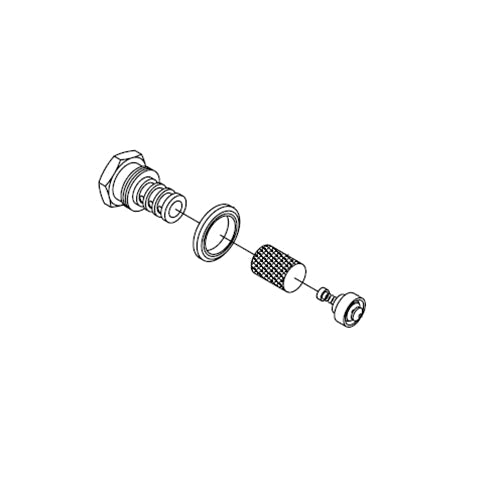

The Graco 296834 R-gun block screen screw assembly installs in the R (resin) side of the Graco GX-7 gun block. It retains the resin-side screen so you can remove, clean and replace it without disturbing the rest of the gun.Features Genuine Graco GX-7 R-side...

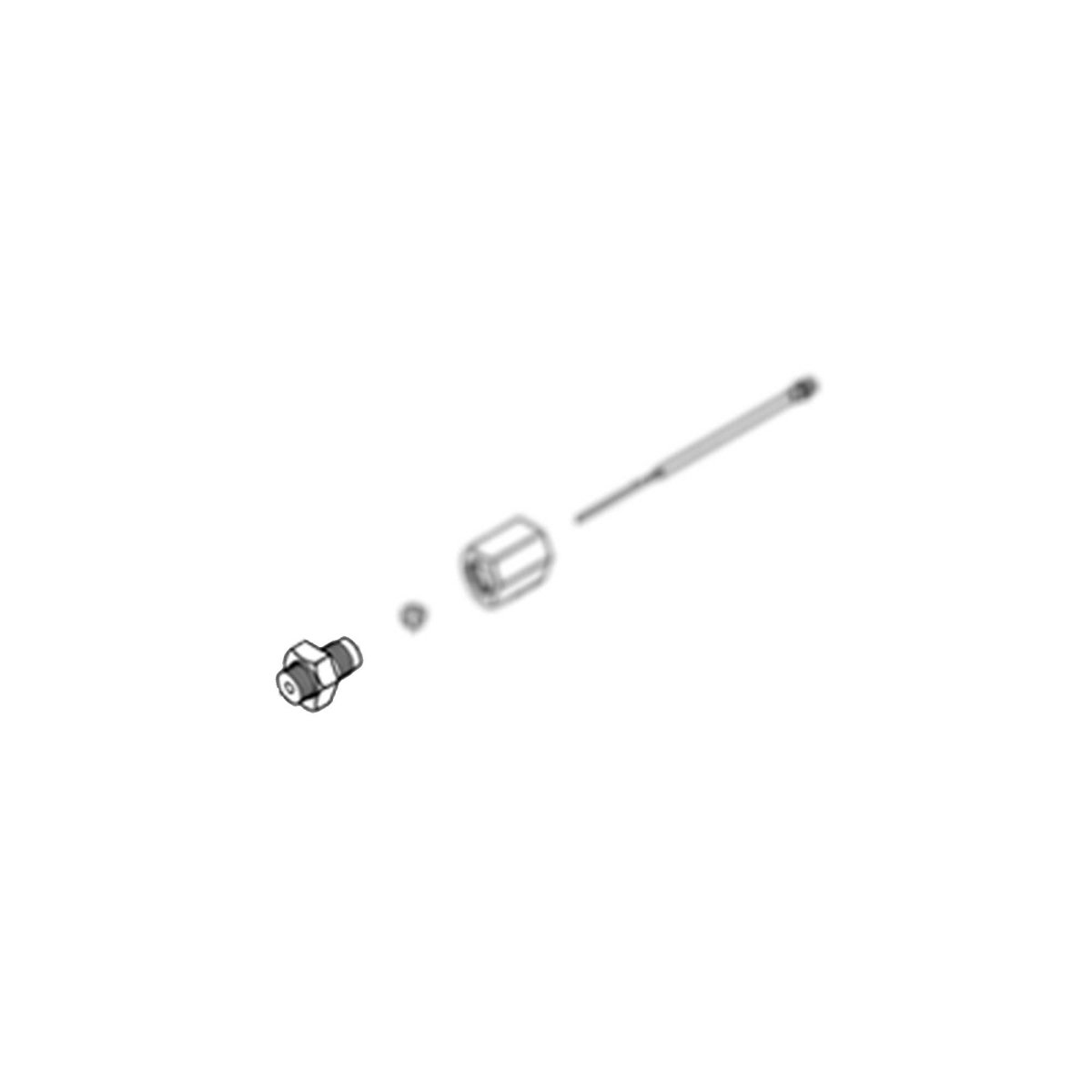

The Graco 296828 rear packing retainer holds the rear seal packing in position around the valving rod of the Graco GX-7 spray gun. A worn retainer can allow the packing to shift, leading to leaks at the rear of the gun block.Features Genuine Graco...

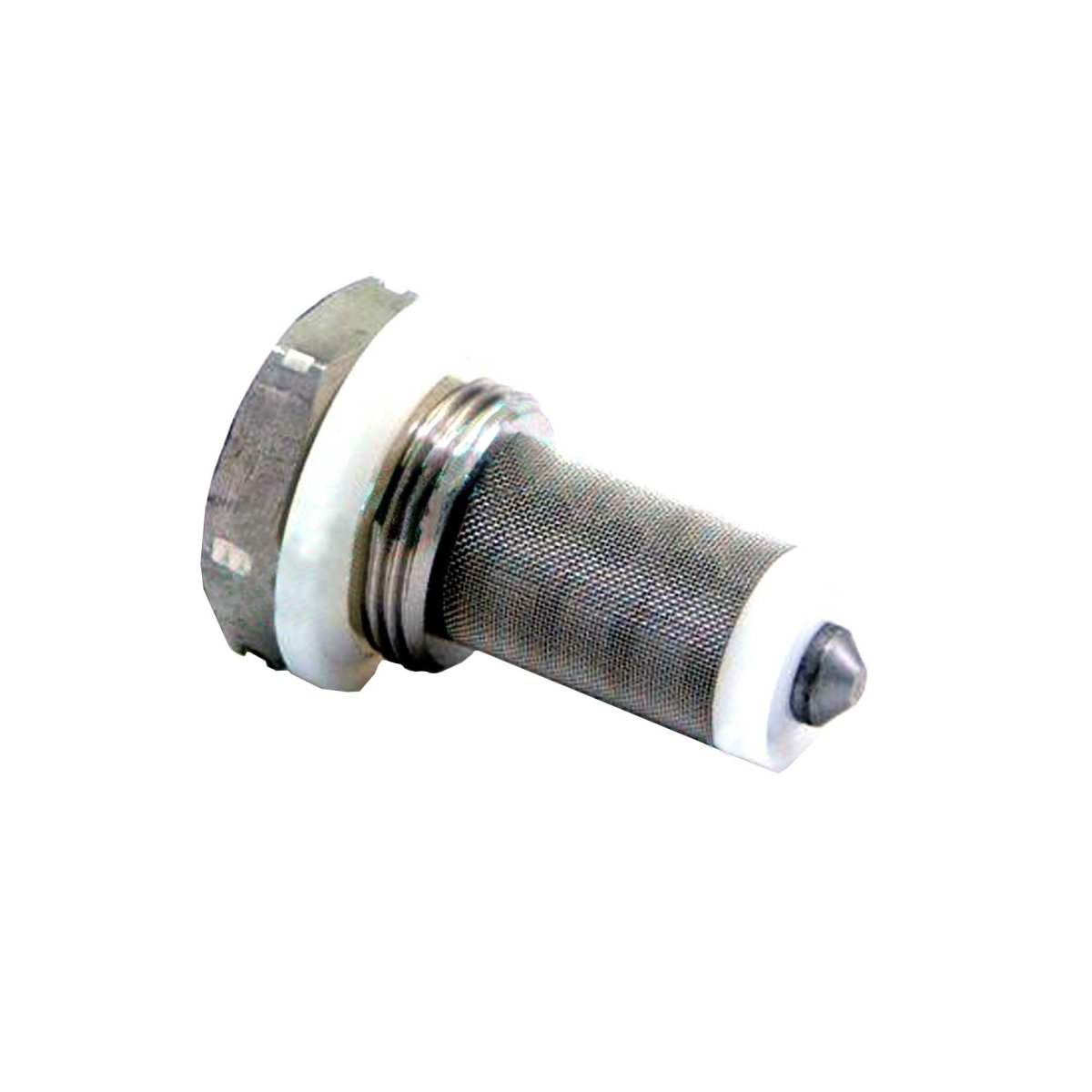

The Graco 296833 A-gun block screen screw assembly installs in the A (iso) side of the Graco GX-7 gun block. It retains the screen that filters material before it enters the mix module; remove it to clean or replace the screen.Features Genuine Graco GX-7...

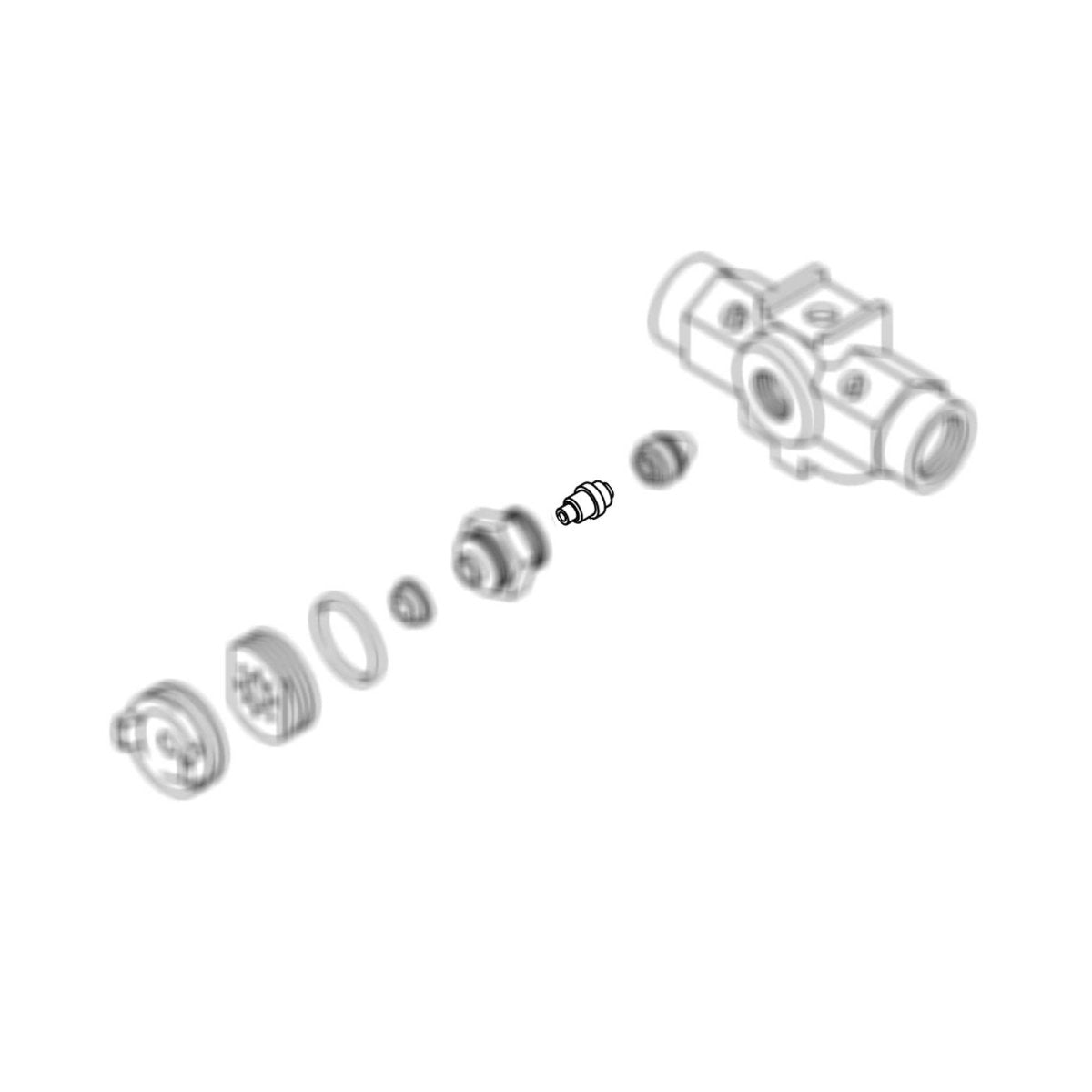

The Graco 296978 front packing seals the front end of the Graco GX-7A air-purge spray gun, installed with the PCD body (296976) under the PCD retainer and air cap. Replace it whenever the front end is disassembled.Features Pack of 5 genuine Graco packings Seals...

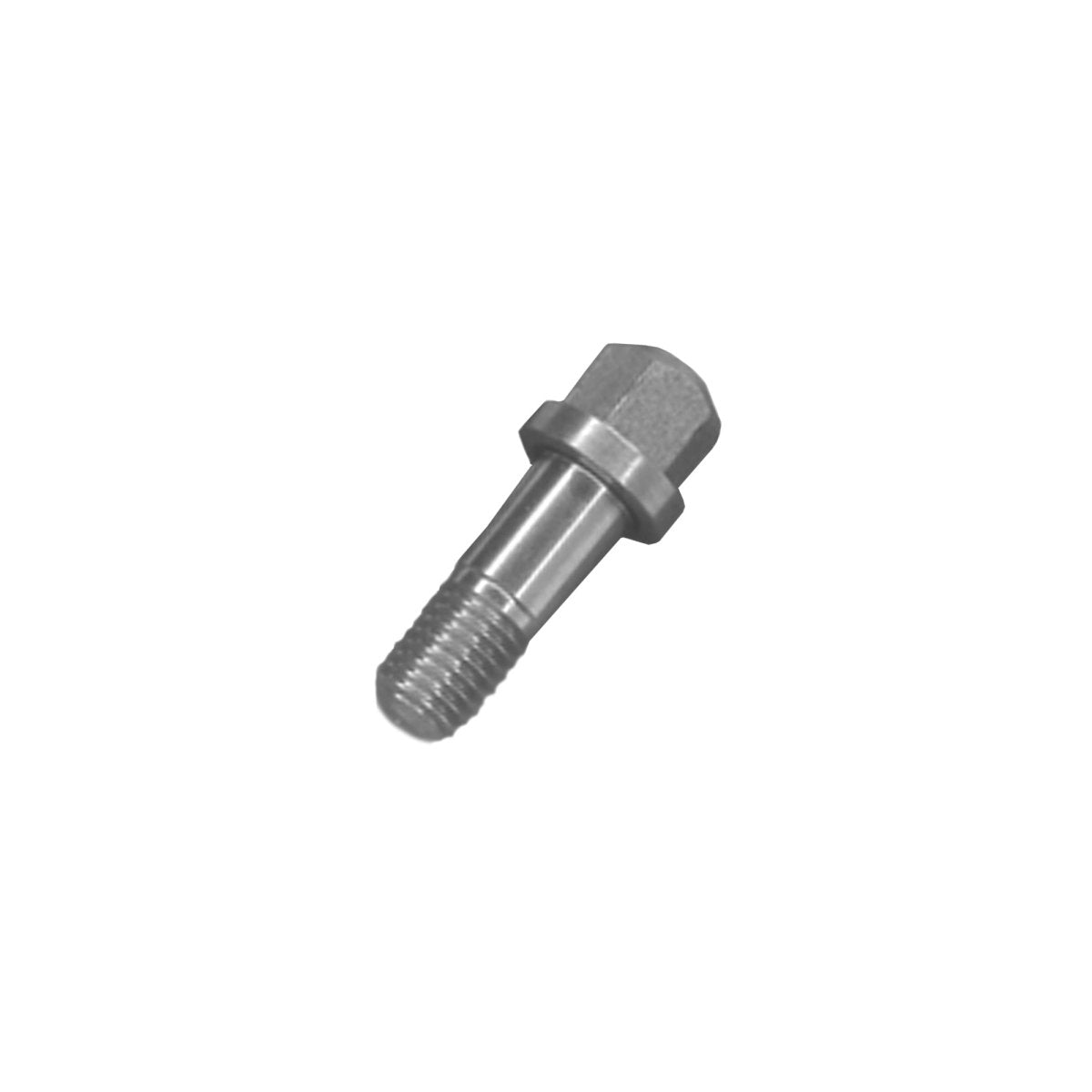

The Graco 295433 coupling block mounting screw fastens the coupling block to the Graco GX-7 plural-component spray gun. It clamps the coupling block against its gasket so the A and R fluid paths stay sealed and separated.Features Genuine Graco GX-7 fastener Holds the coupling...

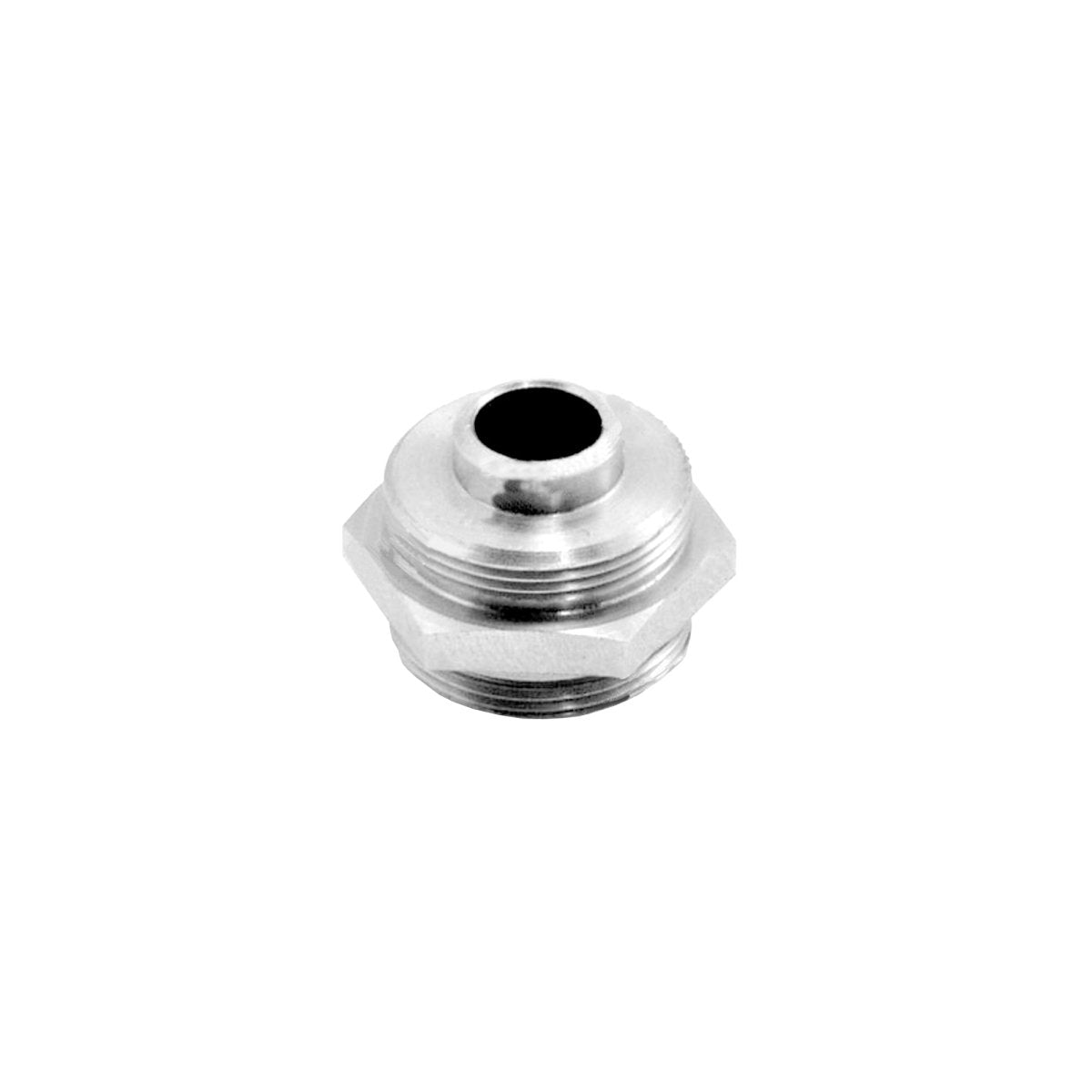

The Graco 296976 PCD body is a front-end component of the Graco GX-7A air-purge spray gun. It installs with the front packing (296978) and is held in place by the PCD retainer (296832) and air cap (296831).Features Genuine Graco GX-7A PCD body Front-end component...

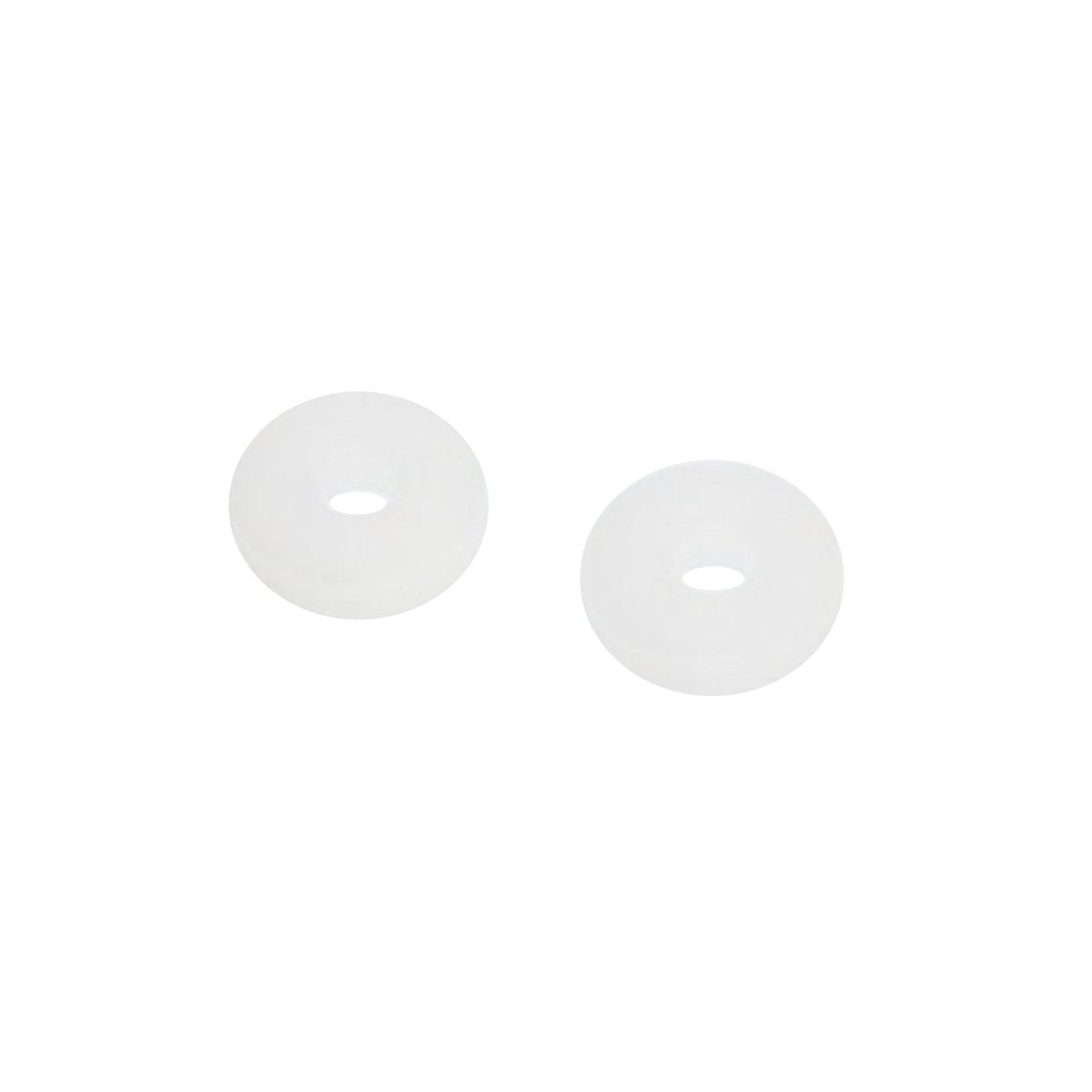

The Graco 296128 coupling block gasket seals the coupling block to the Graco GX-7 spray gun, keeping the A and R components separated until they reach the mix module. A worn gasket can leak or allow crossover, so it is a routine replacement item.Features...

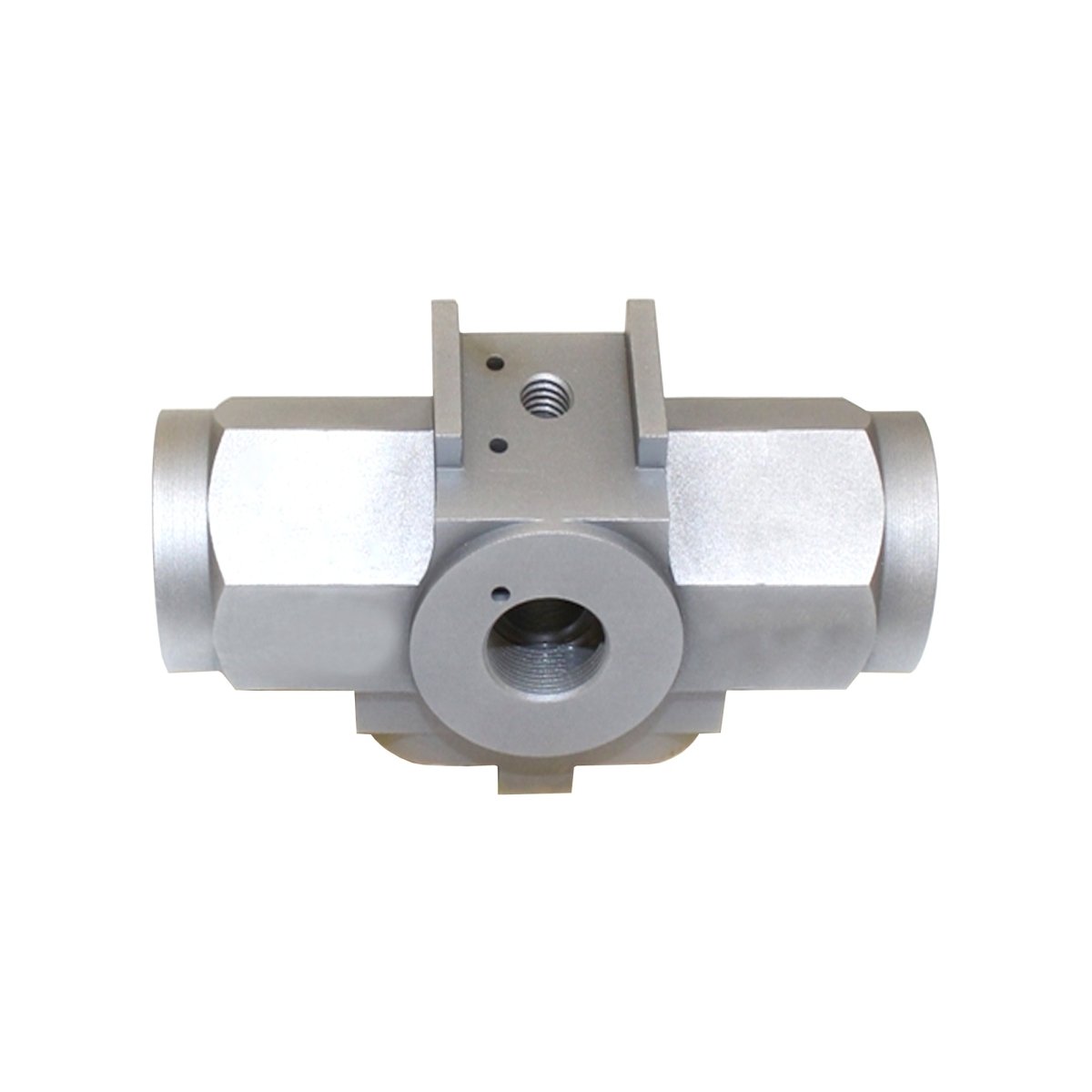

The Graco 295384 gun block is the main fluid block of the Graco GX-7 plural-component spray gun (originally a Gusmer design). It houses the fluid passages that carry the A and R components toward the mixing module, so a scored or damaged block affects...

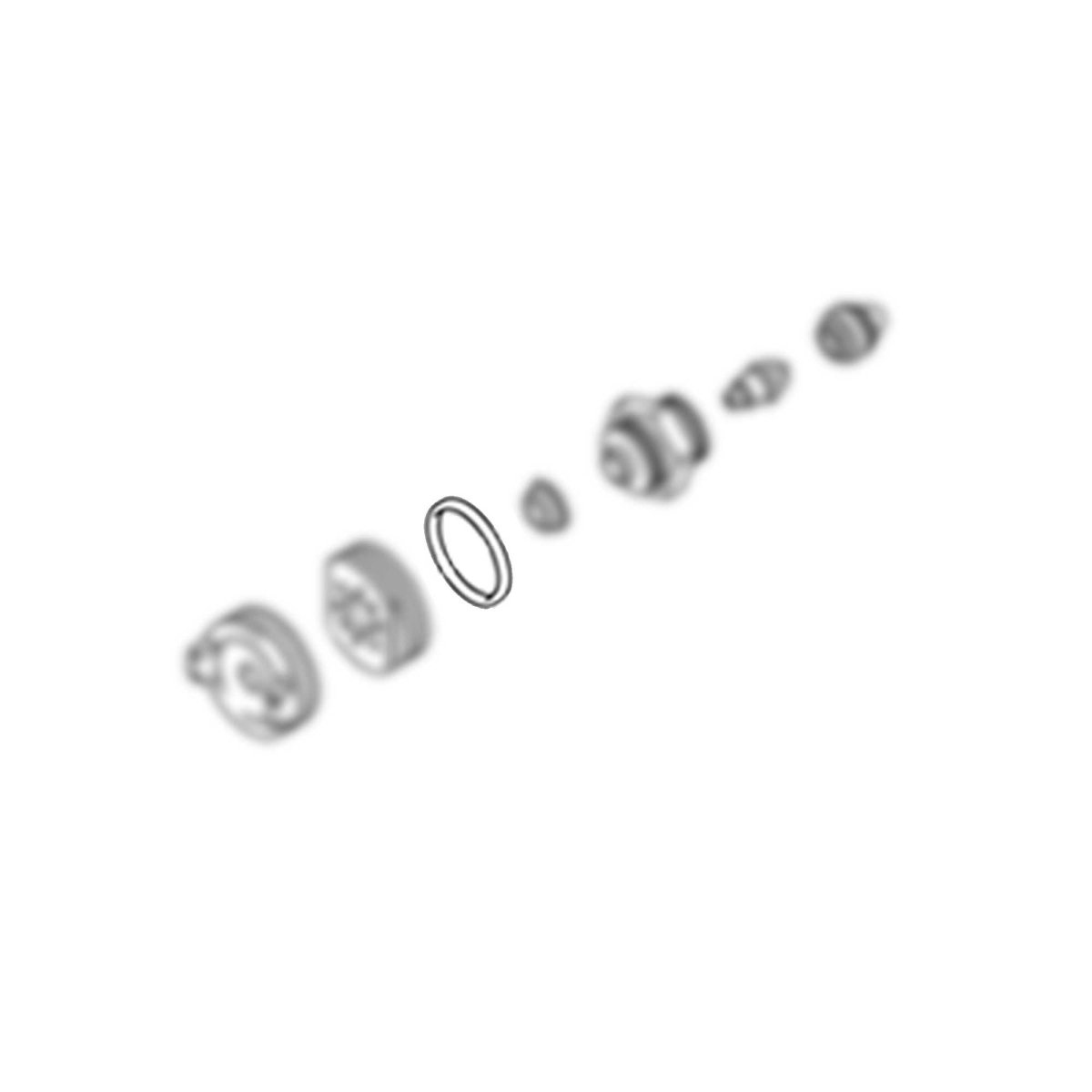

The Graco 295868 o-ring is a genuine replacement seal for the Graco GX-7A air-purge spray gun used for spray foam and polyurea. Fresh o-rings at every teardown help prevent air and material leaks.Features Genuine Graco o-ring Restores a reliable seal Replace whenever the gun...

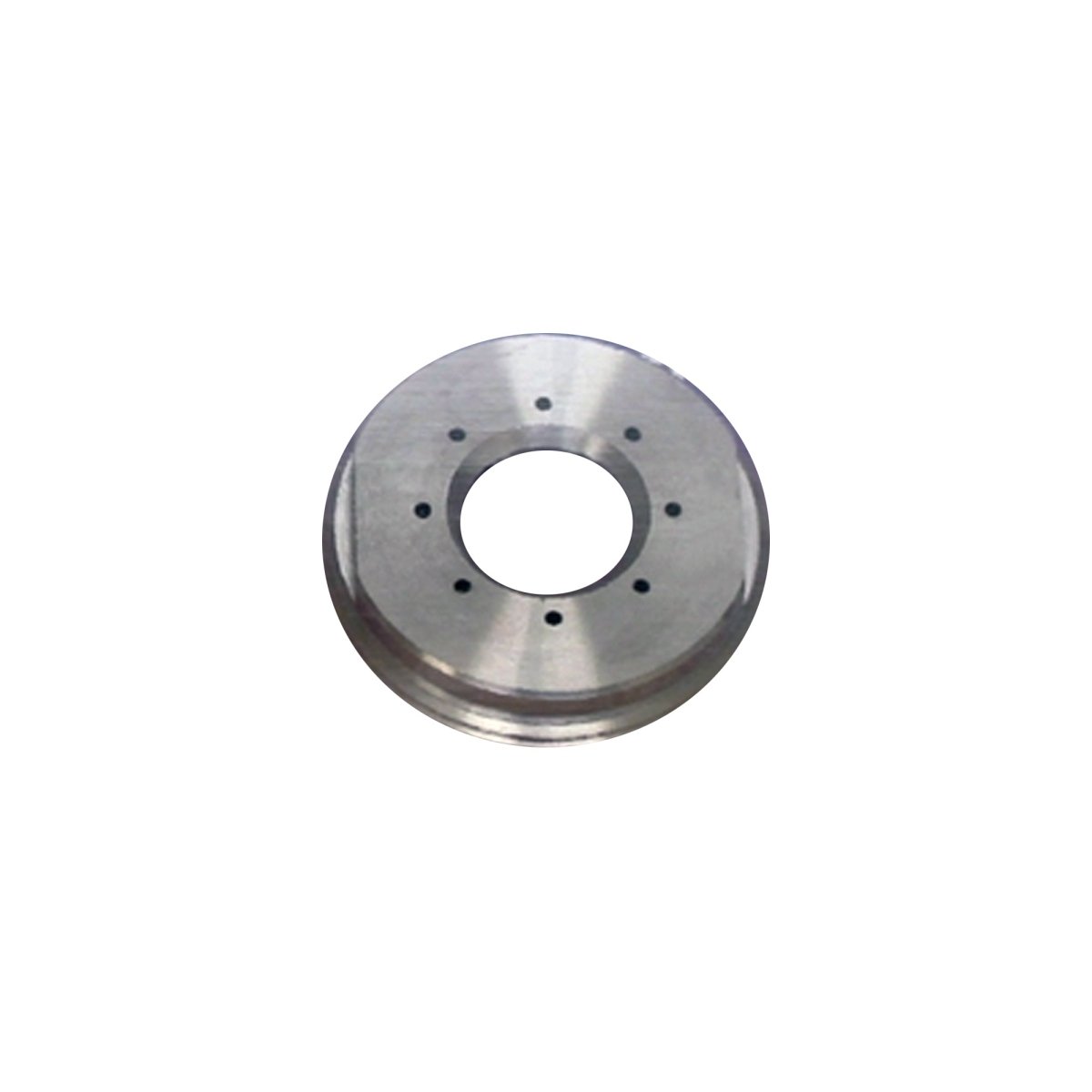

The Graco 296832 PCD retainer holds the PCD body (296976) and front packing (296978) in the front end of the Graco GX-7A spray gun. It sits under the 296831 air cap.Features Genuine Graco GX-7A part Retains the PCD body and front packing Replace if...

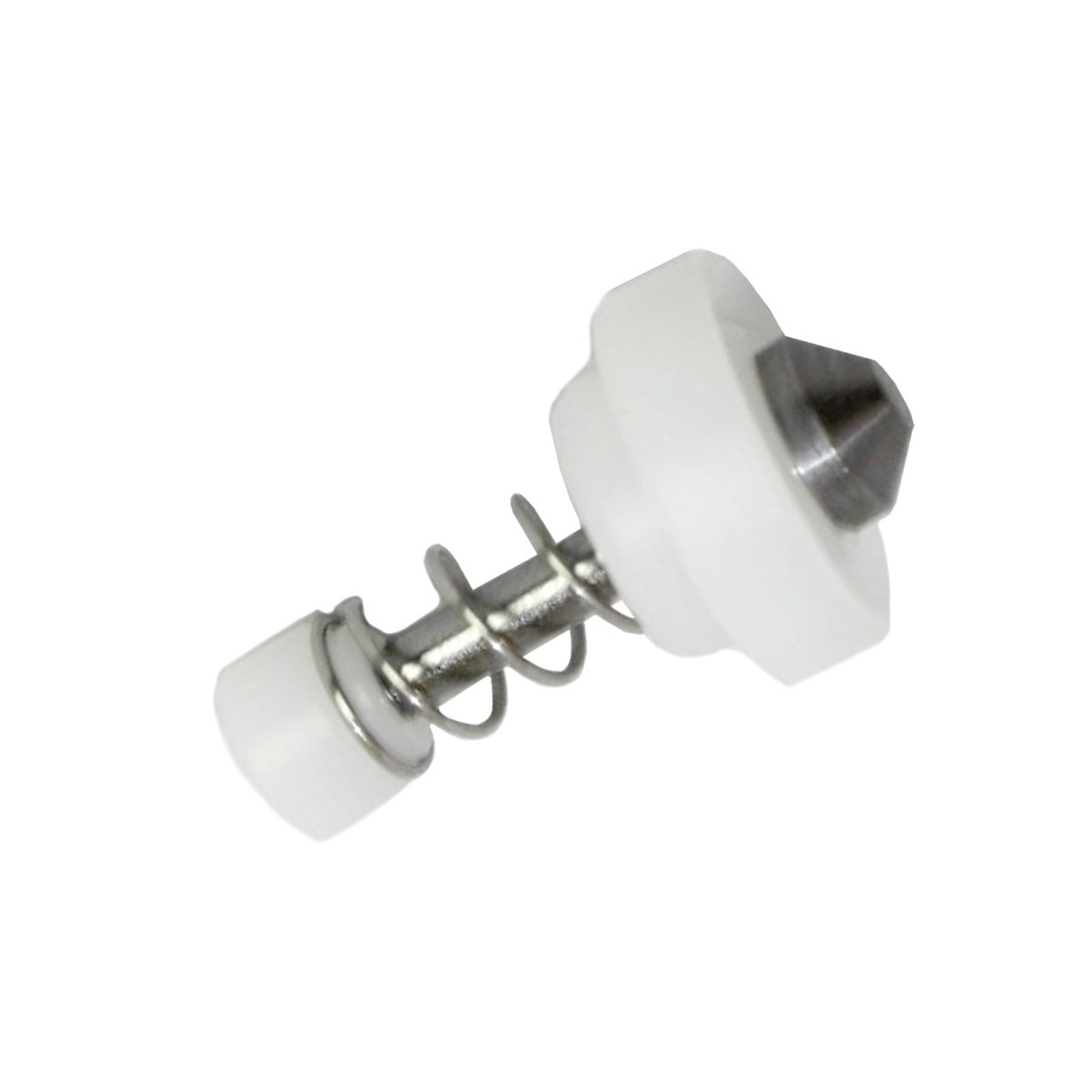

The Graco 296722 check valve assembly is used in the Graco GX-7 gun block to let material flow forward while preventing it from backing up. Healthy check valves help prevent crossover of A and R components, one of the most common causes of gun...
