Graco Fusion FX Gun Parts

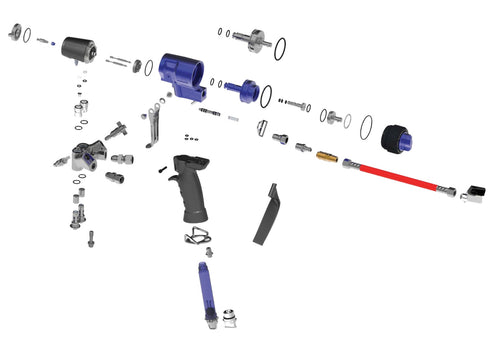

Replacement parts for the Graco Fusion FX spray gun. Use our interactive Gun Parts Finder to pick parts from the exploded diagram.
Categories
-

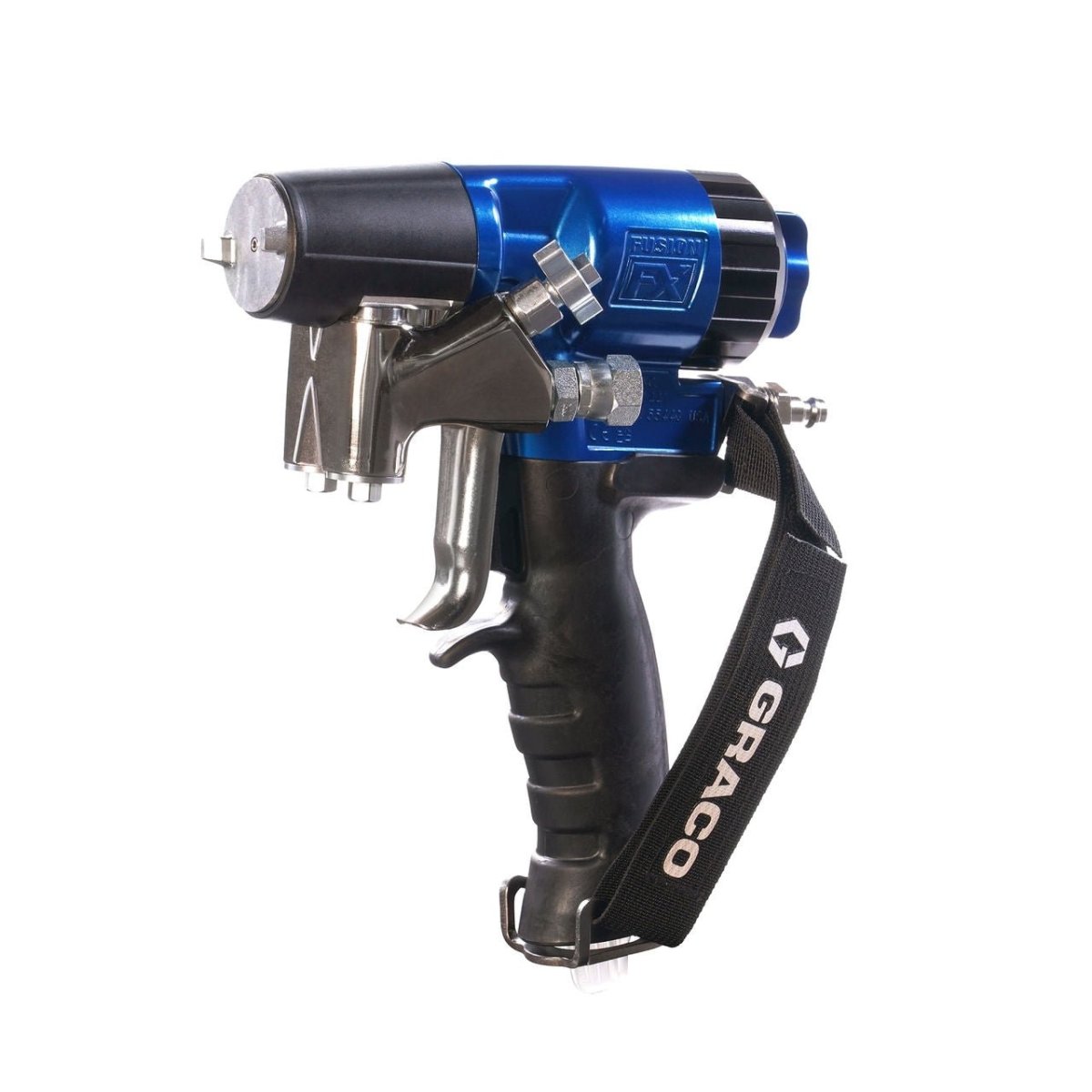

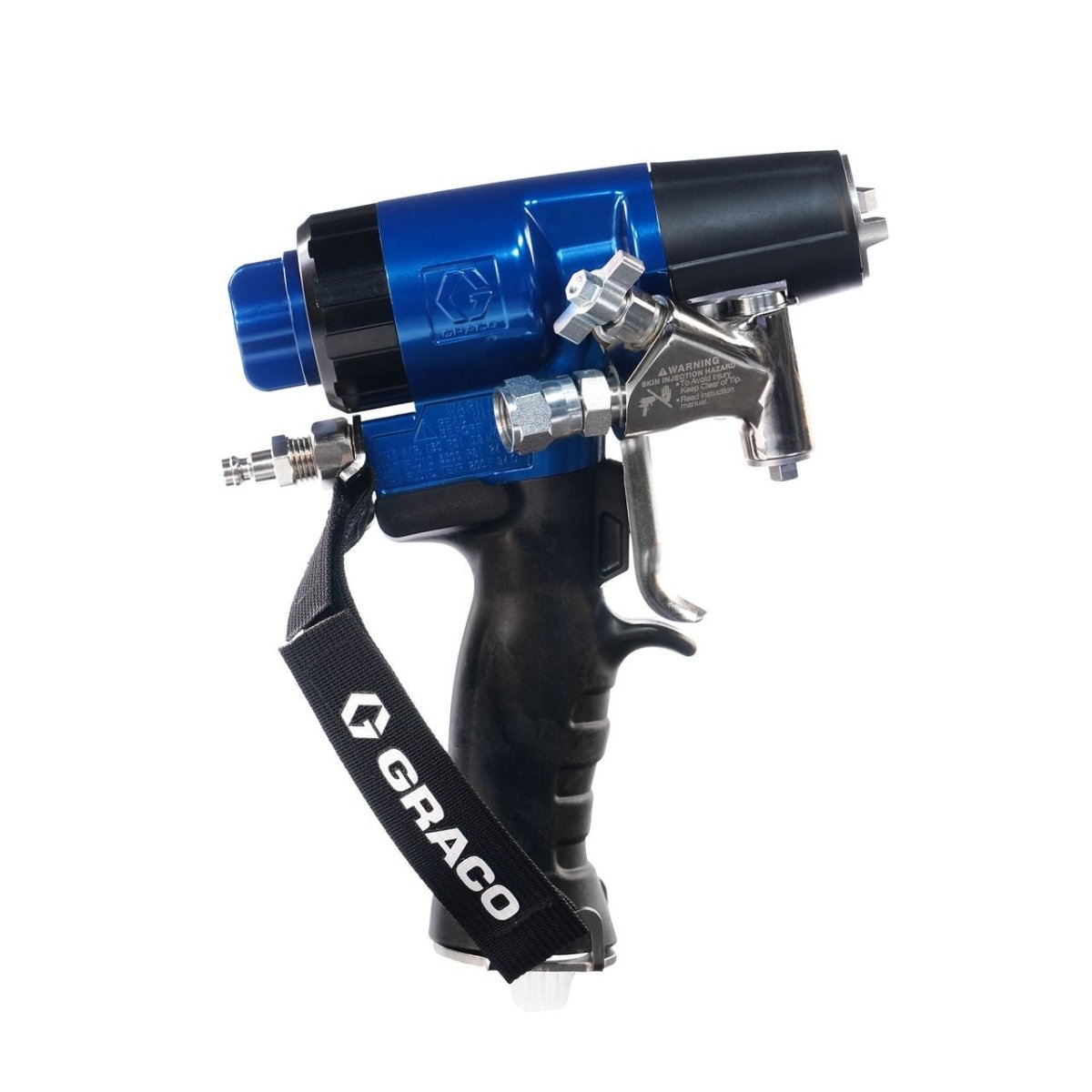

Vendor:The Graco Fusion FX Polyurea Gun (FX9011) is the lightest, smallest and most balanced gun in the Fusion family, purpose-built for polyurea. It ships with round mix chambers in sizes 0.029, 0.034 and 0.037.Features 30% lighter and 9× better balanced than the Fusion PC...Applicator priceRegular price $4,150.00Regular priceUnit price per
-
Vendor:The Graco FX42FL mix chamber is a flat-pattern RapidSwap mix chamber for the Graco Fusion FX plural-component spray gun, sized at 0.042 in. It lets spray foam and polyurea applicators change chamber sizes quickly to match output to the job without swapping guns.Features RapidSwap...Applicator priceRegular price $0.00Regular priceUnit price per
-
Vendor:The Graco FX29FL mix chamber is a flat-pattern RapidSwap mix chamber for the Graco Fusion FX plural-component spray gun, sized at 0.029 in. It lets spray foam and polyurea applicators change chamber sizes quickly to match output to the job without swapping guns.Features RapidSwap...Applicator priceRegular price $0.00Regular priceUnit price per
-
Vendor:The Graco FX20FL mix chamber is a flat-pattern RapidSwap mix chamber for the Graco Fusion FX plural-component spray gun, sized at 0.020 in. It lets spray foam and polyurea applicators change chamber sizes quickly to match output to the job without swapping guns.Features RapidSwap...Applicator priceRegular price $0.00Regular priceUnit price per
-

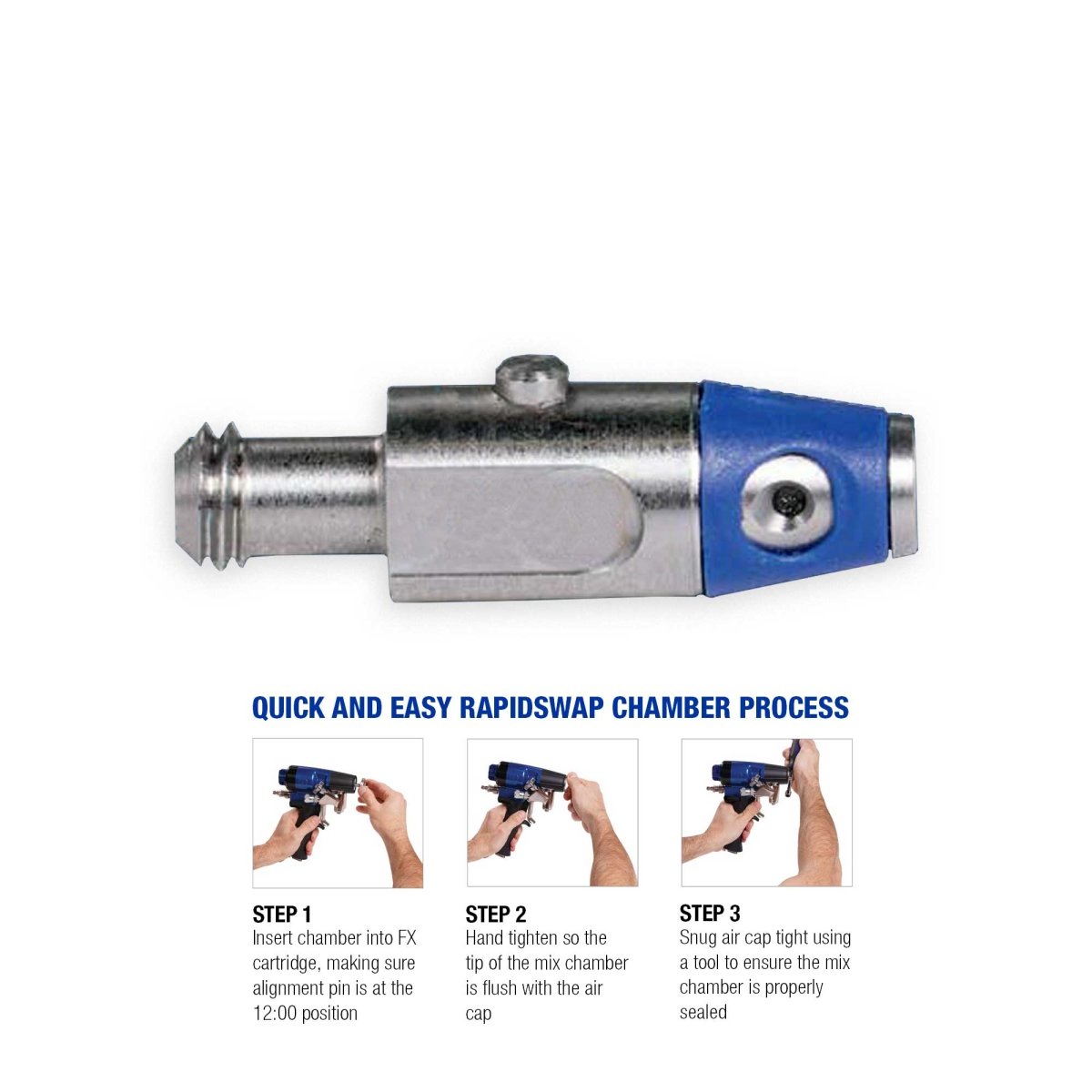

Vendor:The Graco FX34RD mix chamber is a round-pattern RapidSwap mix chamber for the Graco Fusion FX plural-component spray gun, sized at 0.034 in. It lets spray foam and polyurea applicators change chamber sizes quickly to match output to the job without swapping guns.Features RapidSwap...Applicator priceRegular price $151.00Regular priceUnit price per
-
Vendor:The Graco 131971 o-ring is a genuine Graco replacement o-ring, offered here as a package (store SKU 131971PKG). Keeping fresh o-rings on hand helps you stop air and fluid leaks during routine service.Features Genuine Graco o-rings Packaged for maintenance and rebuilds Order by Graco...Applicator priceRegular price $24.60Regular priceUnit price per
-

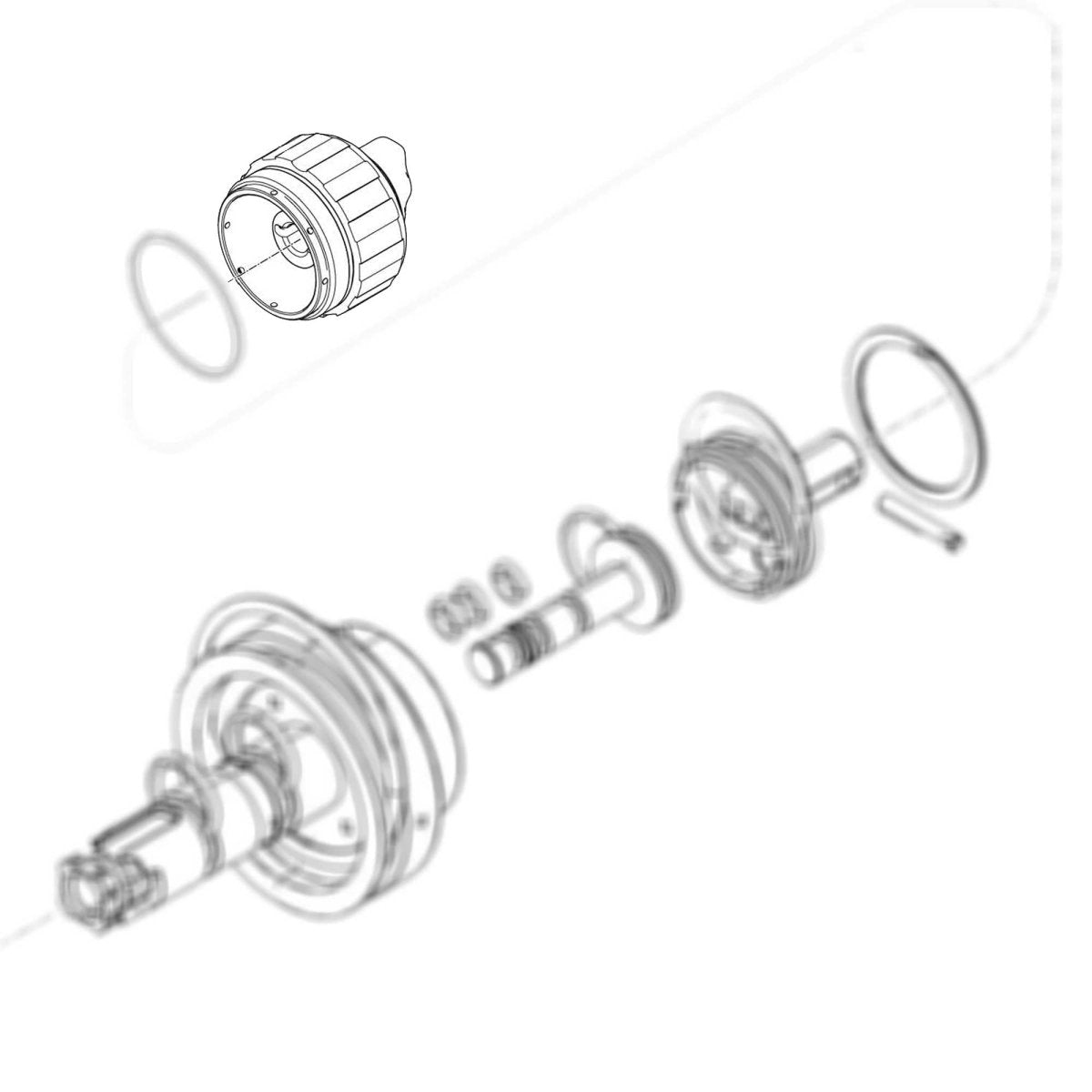

Vendor:The Graco 2000971 rear cap assembly is the rear safety cap for the Graco Fusion FX plural-component spray gun. Replace it if the cap is cracked, damaged or lost so the rear of the gun is properly closed and protected.Features Genuine Graco Fusion FX...Applicator priceRegular price $292.50Regular priceUnit price per
-
Vendor:The Graco 2001032 Fusion FX safety stem kit is the safety stem stop for the Graco Fusion FX plural-component spray gun. The Fusion FX CS air piston kit (2001166) does not include the safety stem, so order it separately if yours is worn or...Applicator priceRegular price $65.00Regular priceUnit price per
-

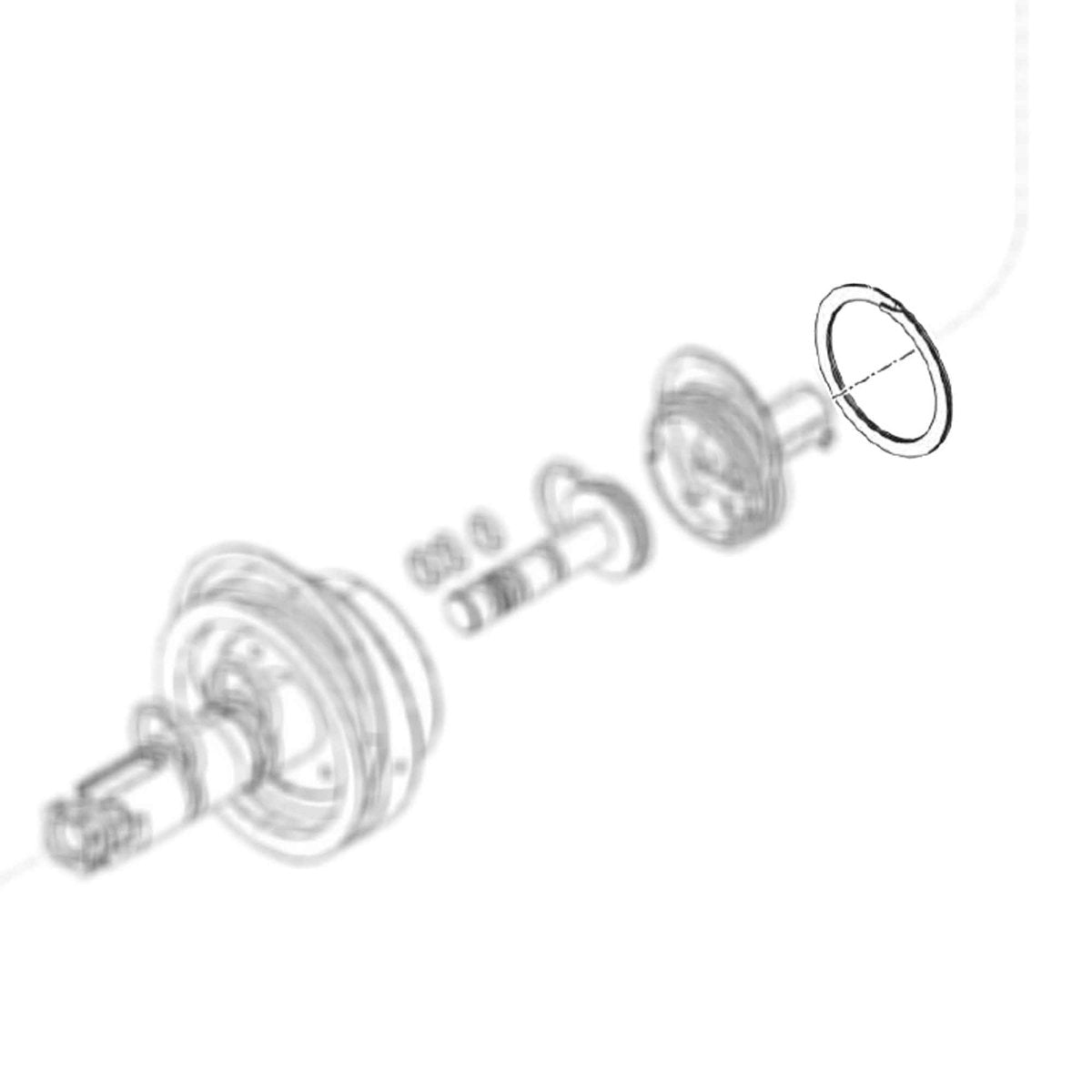

Vendor:The Graco 2001167 retaining ring is the spiral retaining ring used in the Graco Fusion FX plural-component spray gun. This listing is for a quantity of 5, so you have spares on hand for the next rebuild.Features Genuine Graco spiral retaining ring Quantity: 5...Applicator priceRegular price $23.50Regular priceUnit price per
-
Vendor:Graco 2005698 is a 5-pack of genuine O-rings listed in the Graco Fusion FX spray gun parts breakdown, used when rebuilding the gun's rear piston section.Before servicing any Fusion gun, follow the Pressure Relief Procedure in the Graco manual and close the manifold valves.Features...Applicator priceRegular price $38.00Regular priceUnit price per
-

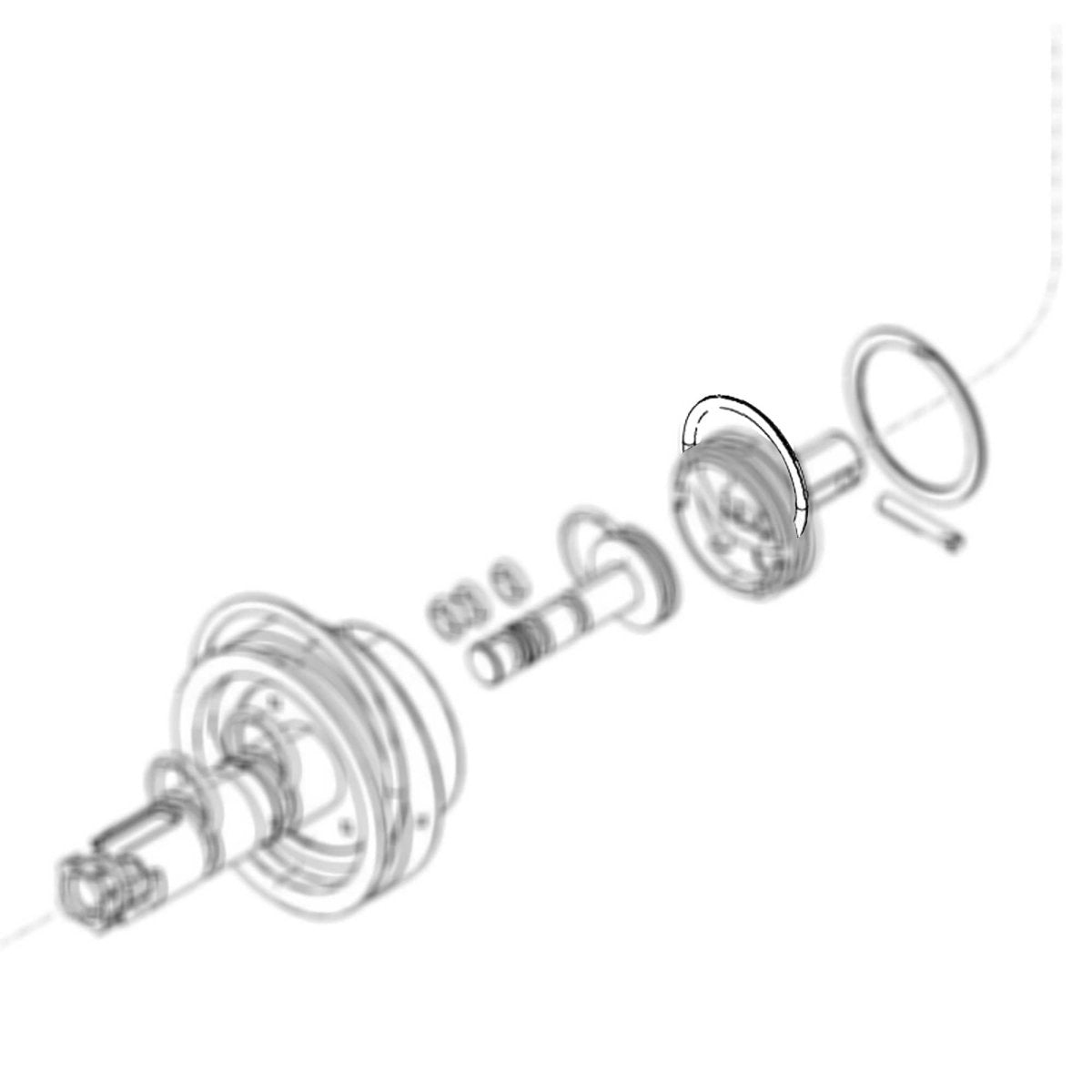

Vendor:The Graco 117559 o-ring is a genuine Graco replacement o-ring for Graco spray equipment.Features Genuine Graco part 117559 OEM o-ring Exact factory size and material Specifications Part number: 117559 Graco description: O-ring Brand: Graco (genuine OEM) CompatibilityConfirm this part number in the parts list...Applicator priceRegular price $5.35Regular priceUnit price per
-
Vendor:The Graco 2001166 Fusion FX CS air piston kit is the air piston with o-rings for the CS configuration of the Graco Fusion FX plural-component spray gun (ref. 2a). The kit does not include a dosing piston or safety stem.Features Genuine Graco Fusion FX...Applicator priceRegular price $265.00Regular priceUnit price per
-

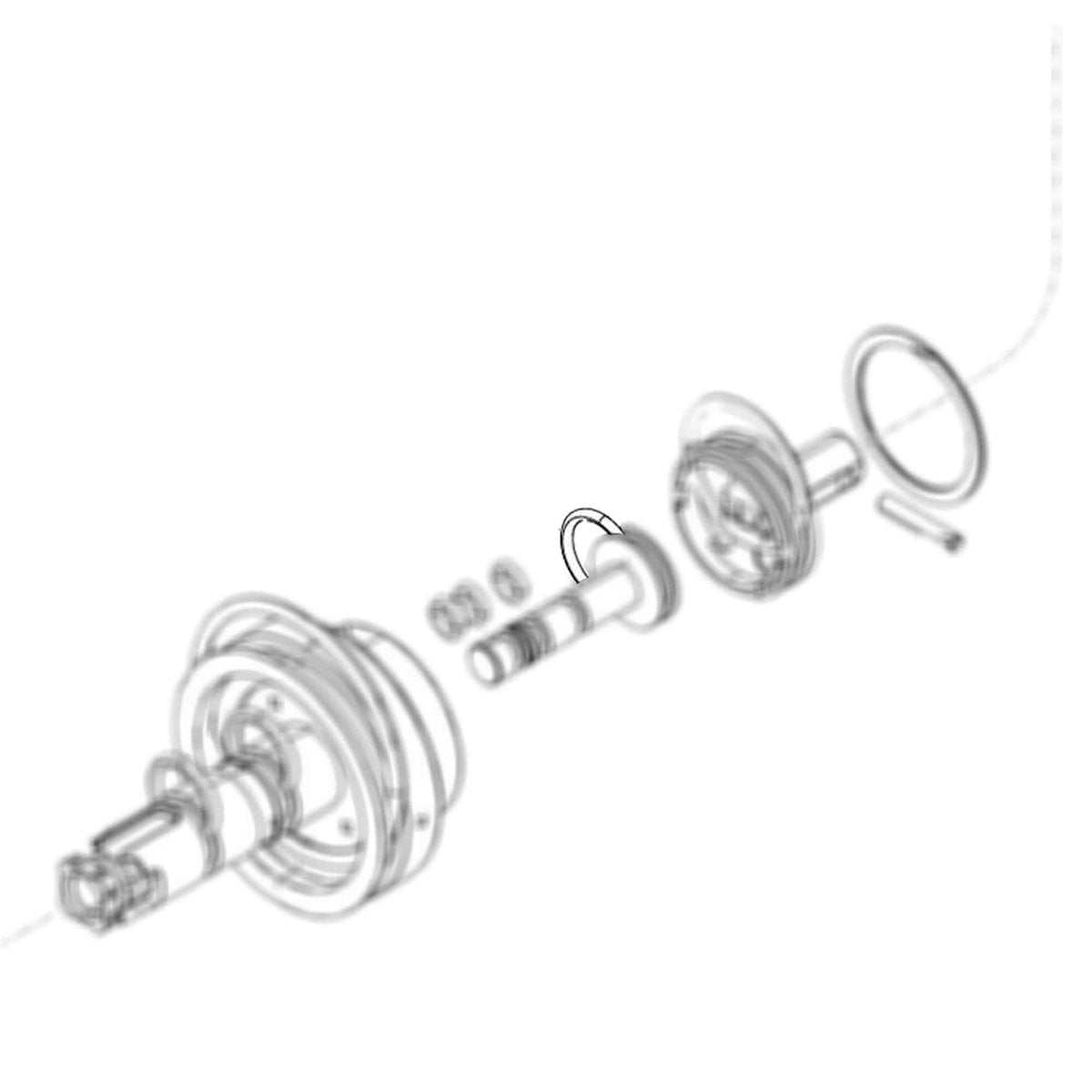

Vendor:The Graco 2005697 O-ring packing (5 pack) is a genuine replacement seal for the Graco Fusion FX plural-component spray gun, listed at reference 2c in the gun's piston assembly.Worn seals and O-rings are the most common cause of crossover, leaks and pattern problems on...Applicator priceRegular price $24.00Regular priceUnit price per
-
Vendor:The Graco 2001031 Fusion FX dosing piston kit replaces the dosing piston in the Graco Fusion FX plural-component spray gun. Note that the Fusion FX CS air piston kit (2001166) does not include a dosing piston, so order this part separately when needed.Features Genuine...Applicator priceRegular price $65.00Regular priceUnit price per
-

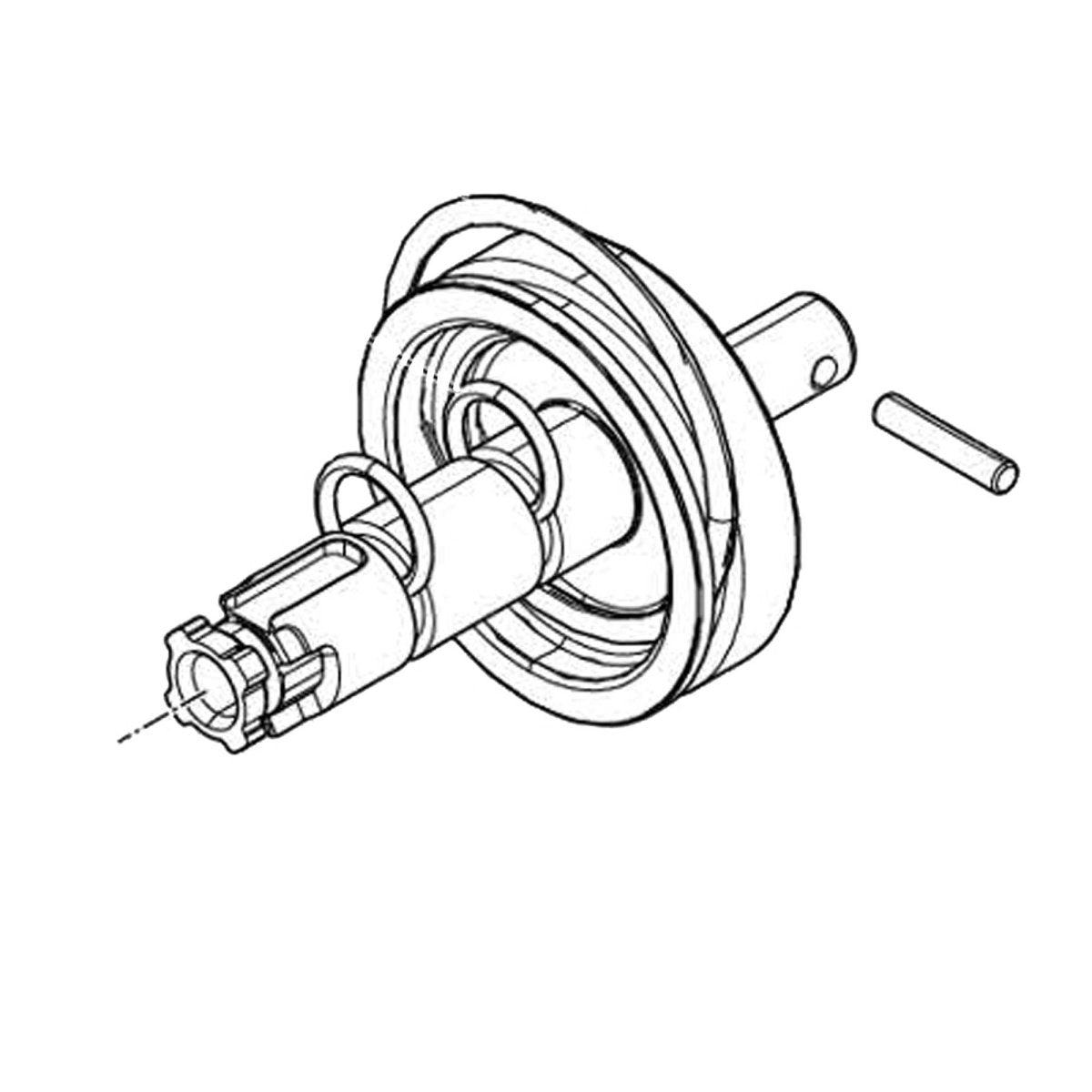

Vendor:The Graco 2000979 Fusion FX AP piston air kit is the air piston assembly for the Graco Fusion FX plural-component spray gun (ref. 99). The air piston drives the gun open and closed, so wear or damage here shows up as slow or unreliable...Applicator priceRegular price $175.00Regular priceUnit price per
-

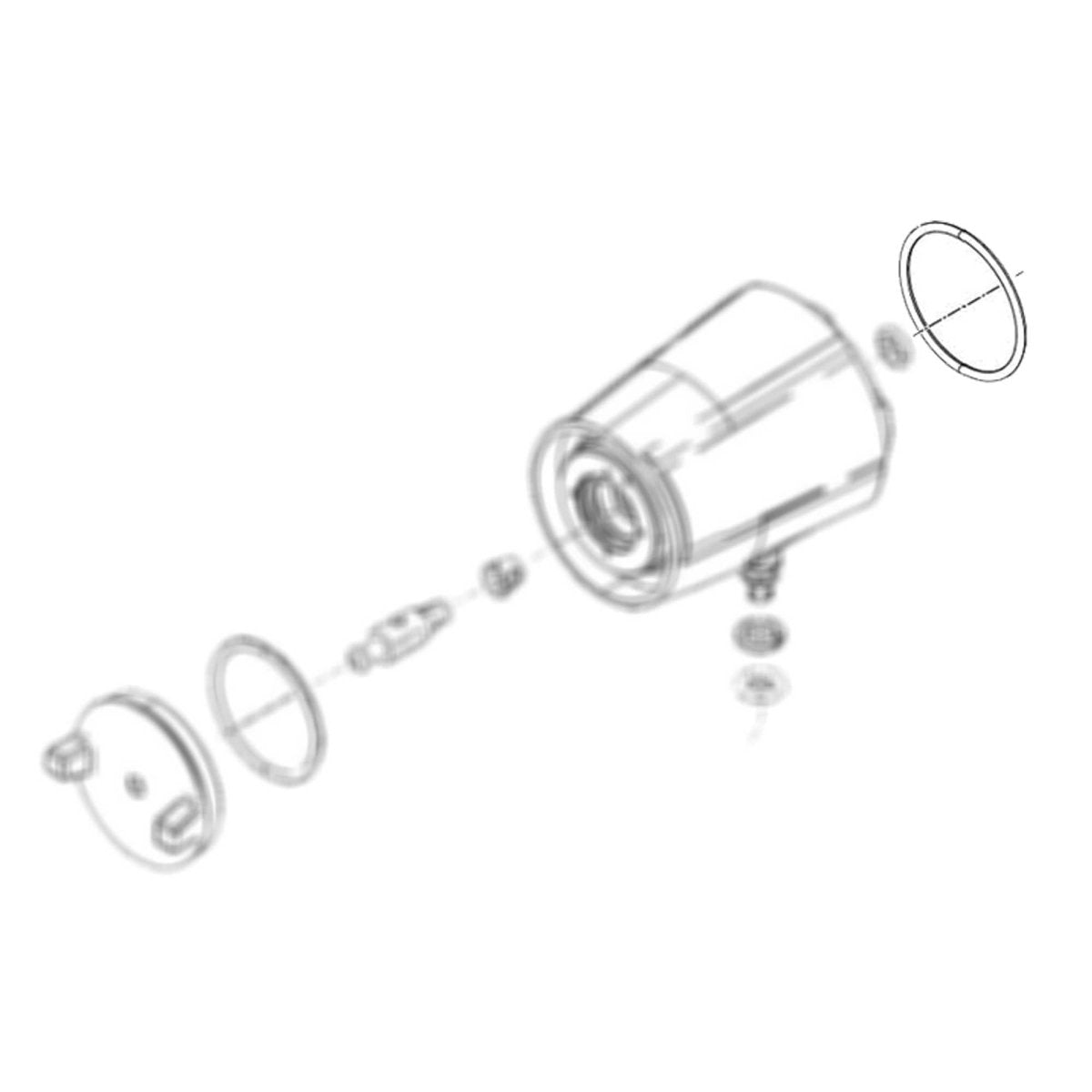

Vendor:The Graco 2001150 is a 5-pack of o-rings for the Graco Fusion FX plural-component spray gun (listed at ref. 20 in the FX parts list). Replacing o-rings on schedule helps prevent air and fluid leaks.Features Genuine Graco o-rings Pack of 5 For the Fusion...Applicator priceRegular price $48.50Regular priceUnit price per
-

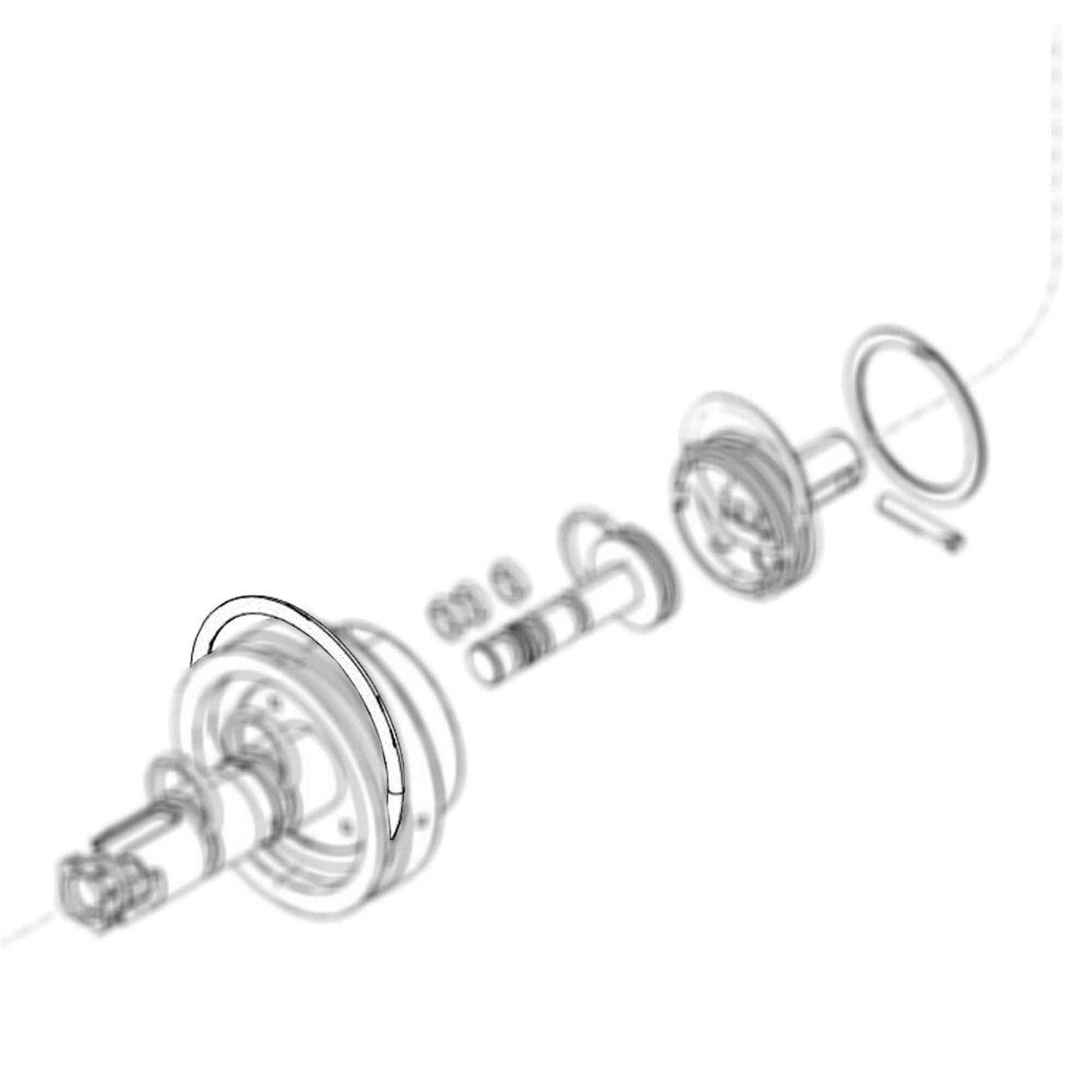

Vendor:Graco 2006158 is a 5-pack of size 129 O-rings for the air piston assembly of the Graco Fusion FX plural-component spray gun (manual reference 2d).Plural-component guns see heat, pressure and isocyanate exposure every day, so scheduled replacement of wear parts is part of normal...Applicator priceRegular price $134.00Regular priceUnit price per
-
Vendor:The Graco 2001027 Fusion FX valving repair kit contains two shuttle valves and one shuttle valve yoke for the Graco Fusion FX plural-component spray gun, according to Graco manual 3A9329. Use it to service the gun's valving when the shuttle valves are worn or...Applicator priceRegular price $78.50Regular priceUnit price per
-
Vendor:The Graco 17V093 packing o-ring is a genuine Graco replacement seal. Order it by part number to match the packing o-ring in your equipment's parts list, and keep spares for routine service.Features Genuine Graco packing o-ring Ordered by Graco part number Helps stop leaks...Applicator priceRegular price $7.06Regular priceUnit price per
-
Vendor:The Graco 2001028 Fusion FX shuttle valve kit contains 10 shuttle valves for the Graco Fusion FX plural-component spray gun. Buying the 10-pack keeps replacements on hand for crews running several FX guns or spraying every day.Features Genuine Graco Fusion FX shuttle valves 10...Applicator priceRegular price $245.00Regular priceUnit price per
-

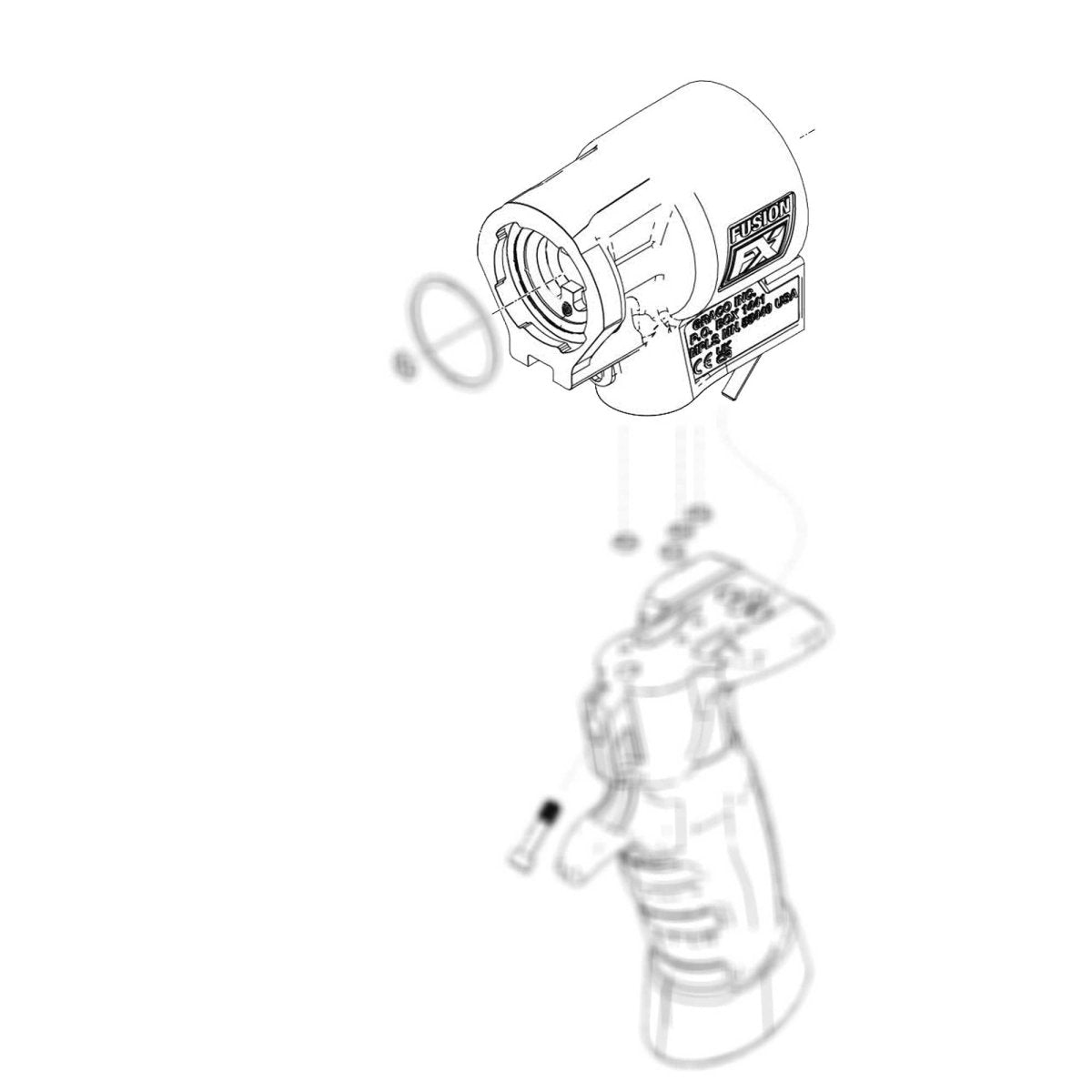

Vendor:The Graco 2000973 Fusion FX gun body kit supplies the air-section body of the Graco Fusion FX plural-component spray gun. It is the part to order when the body itself is damaged and the gun cannot be repaired with seals and small parts alone.Features...Applicator priceRegular price $1,150.00Regular priceUnit price per
-
Vendor:The Graco 2006911 upper strap bracket anchors the top of the hand strap on the Graco Fusion FX spray gun (manual reference 80c).Crews that spray foam or polyurea daily typically keep a stock of Fusion wear parts in the rig to avoid losing a...Applicator priceRegular price $22.00Regular priceUnit price per
-

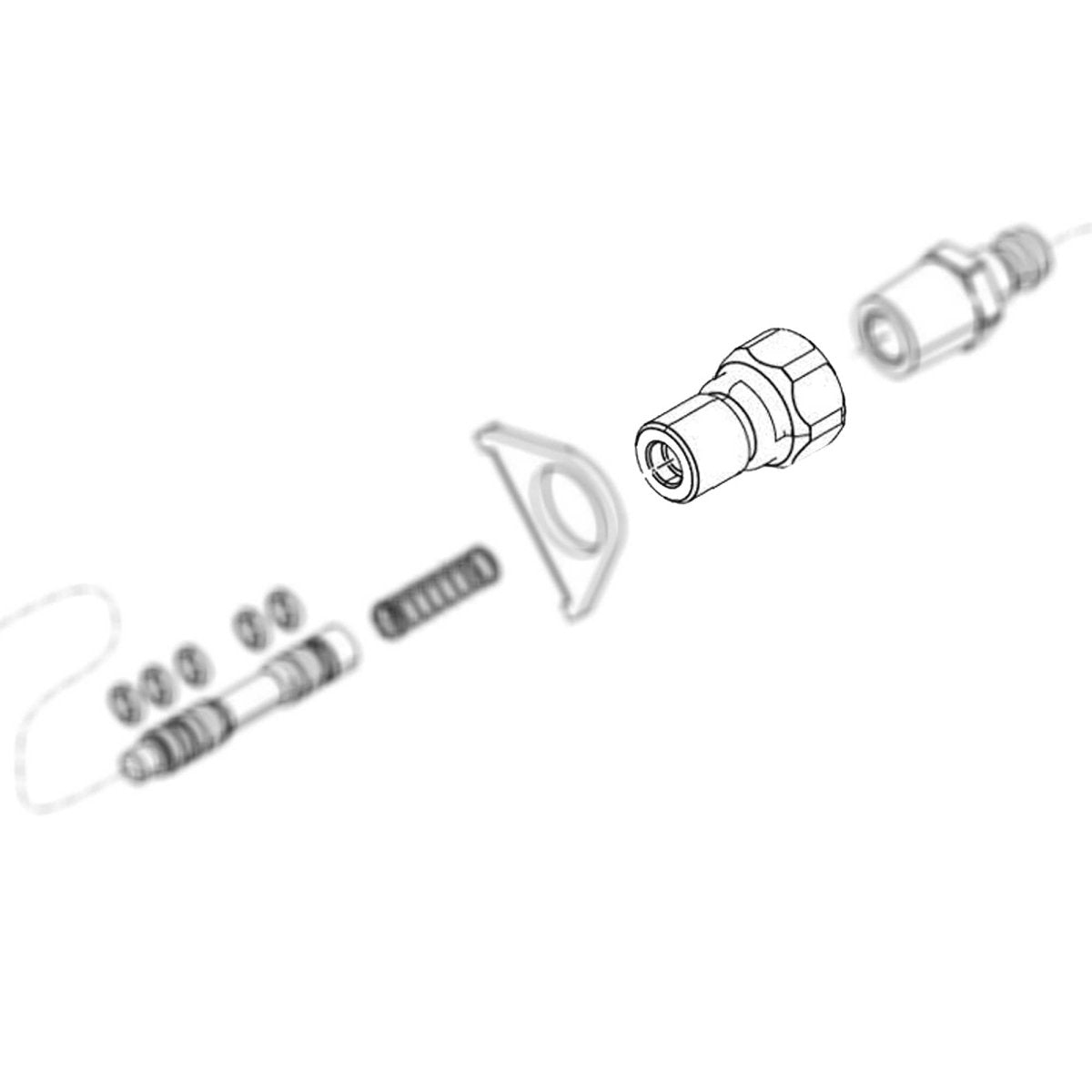

Vendor:The Graco 2001148 air valve fitting is a genuine replacement fitting for the air valve of the Graco Fusion FX plural-component spray gun. Replace it if the fitting is damaged or leaking air.Features Genuine Graco Fusion FX air valve fitting Helps stop air leaks...Applicator priceRegular price $36.00Regular priceUnit price per
-

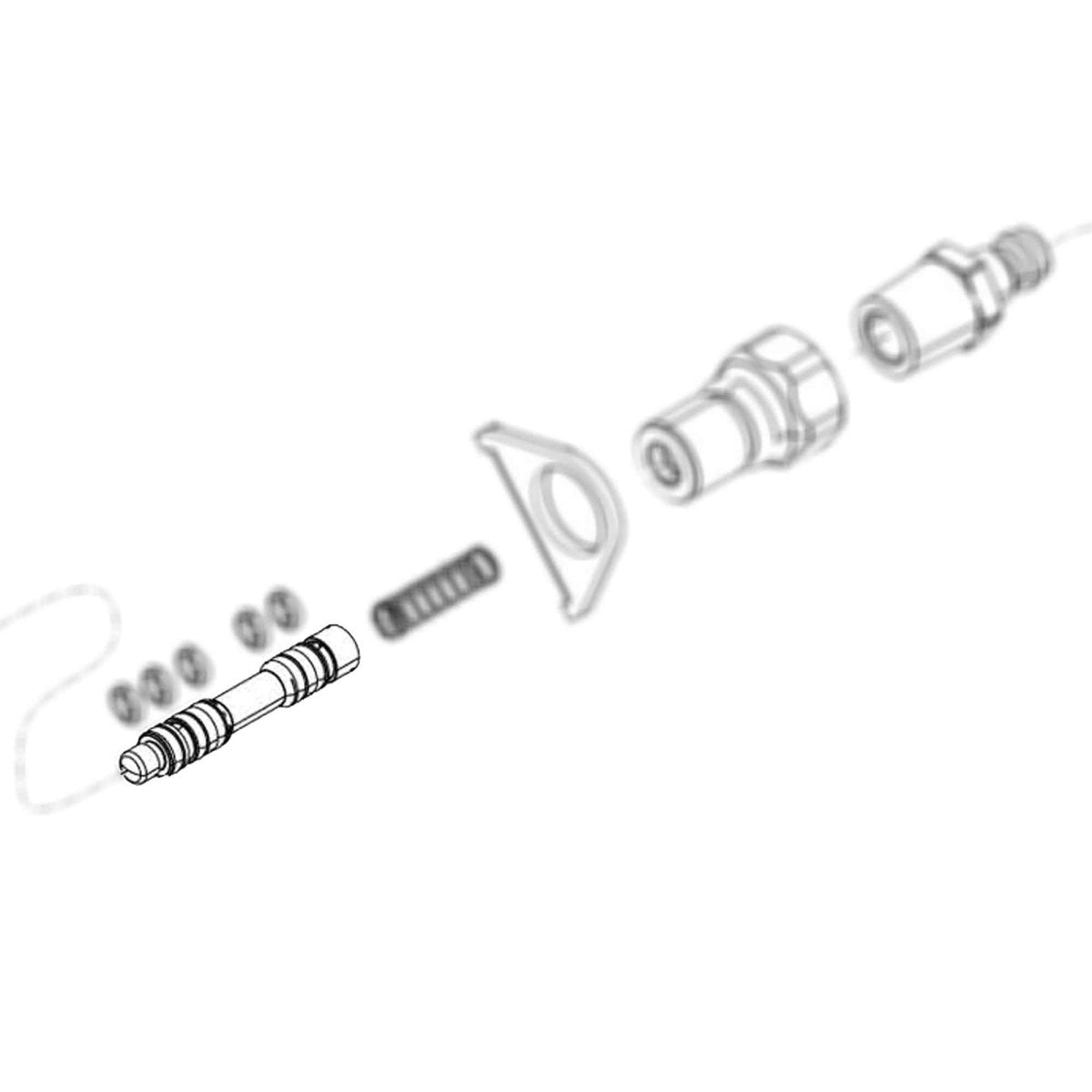

Vendor:The Graco 2000980 Fusion FX spool valve is the spool valve assembly for the air section of the Graco Fusion FX plural-component spray gun. Replace it when the air valve sticks or leaks and the gun no longer opens and closes cleanly.Features Genuine Graco...Applicator priceRegular price $28.75Regular priceUnit price per
