Graco Fusion FX Gun Parts

The Graco 2001152 is a 10-pack of o-rings for the Graco Fusion FX plural-component spray gun (listed at refs. 2e and 9 in the FX parts list). A 10-pack is a practical way to keep spares on hand for crews spraying every day.Features Genuine...

The Graco 2001153 Fusion FX trigger bolt kit supplies the bolts that mount the trigger on the Graco Fusion FX plural-component spray gun. Replace them when they are worn, bent or lost during service.Features Genuine Graco Fusion FX trigger hardware Mounts the trigger (2000976)...

The Graco 2000976 Fusion FX trigger kit replaces the trigger on the Graco Fusion FX plural-component spray gun. A bent or cracked trigger makes the gun harder to actuate, so replace it when you see damage.Features Genuine Graco Fusion FX trigger Restores smooth trigger...

The Graco 2000972 Fusion FX handle kit is the polymer (overmolded) CS handle for the Graco Fusion FX plural-component spray gun (ref. 7). Replace it if the handle is cracked or damaged.Features Genuine Graco Fusion FX handle Overmolded polymer construction Graco lists handle bolt...

The Graco 2000716 handle strap kit includes the strap and mounting brackets for the Graco Fusion FX plural-component spray gun (ref. 80). The strap helps you hold and control the gun during long spray sessions; replace it when it is torn, stretched or its...

The Graco 2001151 Fusion FX handle screw is sold as a handle bolt kit for attaching the handle of the Graco Fusion FX plural-component spray gun. Replace it if the hardware is stripped, damaged or lost.Features Genuine Graco Fusion FX handle hardware Secures the...

The Graco 2000715 CS tube plug is a Fusion FX handle part. Graco describes the kit as a CS plug for the handle supplied with its o-ring already assembled, so it is ready to install when you service or convert the gun handle.Features Genuine...

Graco 2007692 is a 3-pack of replacement hand straps for the Graco Fusion FX plural-component spray gun (manual reference 80a).Rebuilding with genuine Graco parts keeps factory tolerances in the gun, which matters for mix quality in spray foam and polyurea work.Features Three straps per...

The Graco 2000981 Fusion FX muffler kit is listed in the Graco Fusion FX parts list as the breather plug in the handle (ref. 7b). Replace it when it is clogged, damaged or missing.Features Genuine Graco Fusion FX part Handle breather plug (ref. 7b)...

Graco 2006912 is the lower strap bracket kit for the hand strap on the Graco Fusion FX plural-component spray gun (manual reference 80b).Worn seals and O-rings are the most common cause of crossover, leaks and pattern problems on plural-component guns, so keeping replacements on...

The Graco 2001025 ISO filter kit is the A-side filter housing for the Graco Fusion FX plural-component spray gun (ref. 6l). It filters the ISO (A-side) material before it enters the gun, helping protect the cartridge from debris.Features Genuine Graco Fusion FX A-side filter...

The Graco 127596 side swivel is the B-side swivel fitting. It is a #6 JIC male x #6 JIC female swivel, used to connect a fluid hose while letting it turn freely.Features Genuine Graco swivel fitting B-side (resin) connection #6 JIC male x #6...

The Graco 2001170 Fusion FX bolt is the manifold bolt for the Graco Fusion FX plural-component spray gun. It secures the fluid manifold to the gun; replace it if it is bent, stretched or has damaged threads.Features Genuine Graco Fusion FX manifold bolt Secures...

The Graco 127597 side swivel is the A-side (ISO) swivel fitting, the companion to the B-side swivel 127596. A swivel at the gun lets the fluid hose turn freely and reduces strain on the connection.Features Genuine Graco swivel fitting A-side (ISO) connection Pairs with...

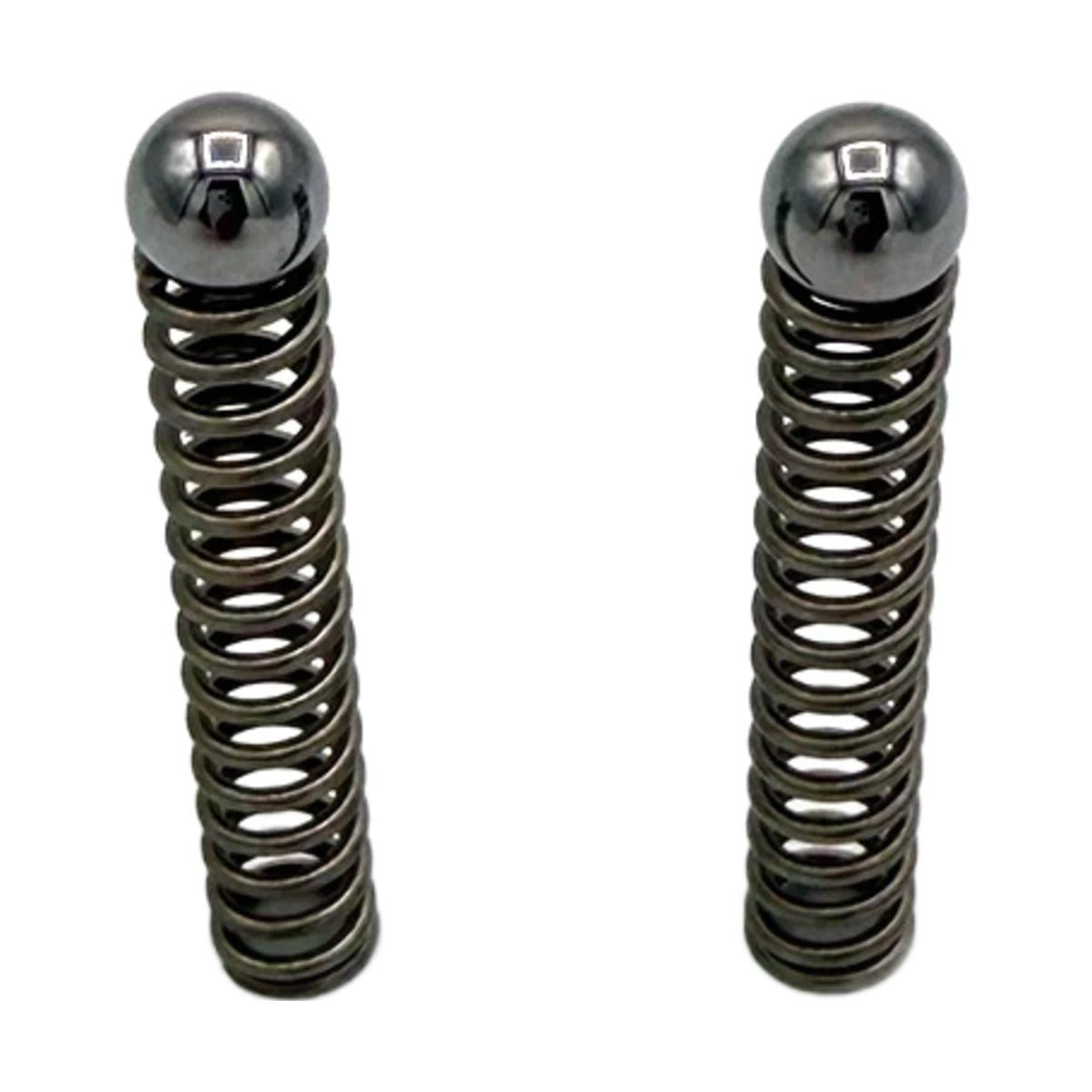

The Graco 2007204 ball and spring kit supplies the check ball and spring for the fluid check valves of the Graco Fusion FX spray gun.Before servicing any Fusion gun, follow the Pressure Relief Procedure in the Graco manual and close the manifold valves.Features Check...

The Graco 2001026 resin filter kit is the B-side filter housing for the Graco Fusion FX plural-component spray gun (ref. 6m). It filters the resin (B-side) material as it enters the gun.Features Genuine Graco Fusion FX B-side filter housing For the resin (B) side...

Graco 24R894 is a 10-pack 40 mesh filter kit listed for the Graco Fusion FX plural-component spray gun, used to screen material before it reaches the mix chamber.Plural-component guns see heat, pressure and isocyanate exposure every day, so scheduled replacement of wear parts is...

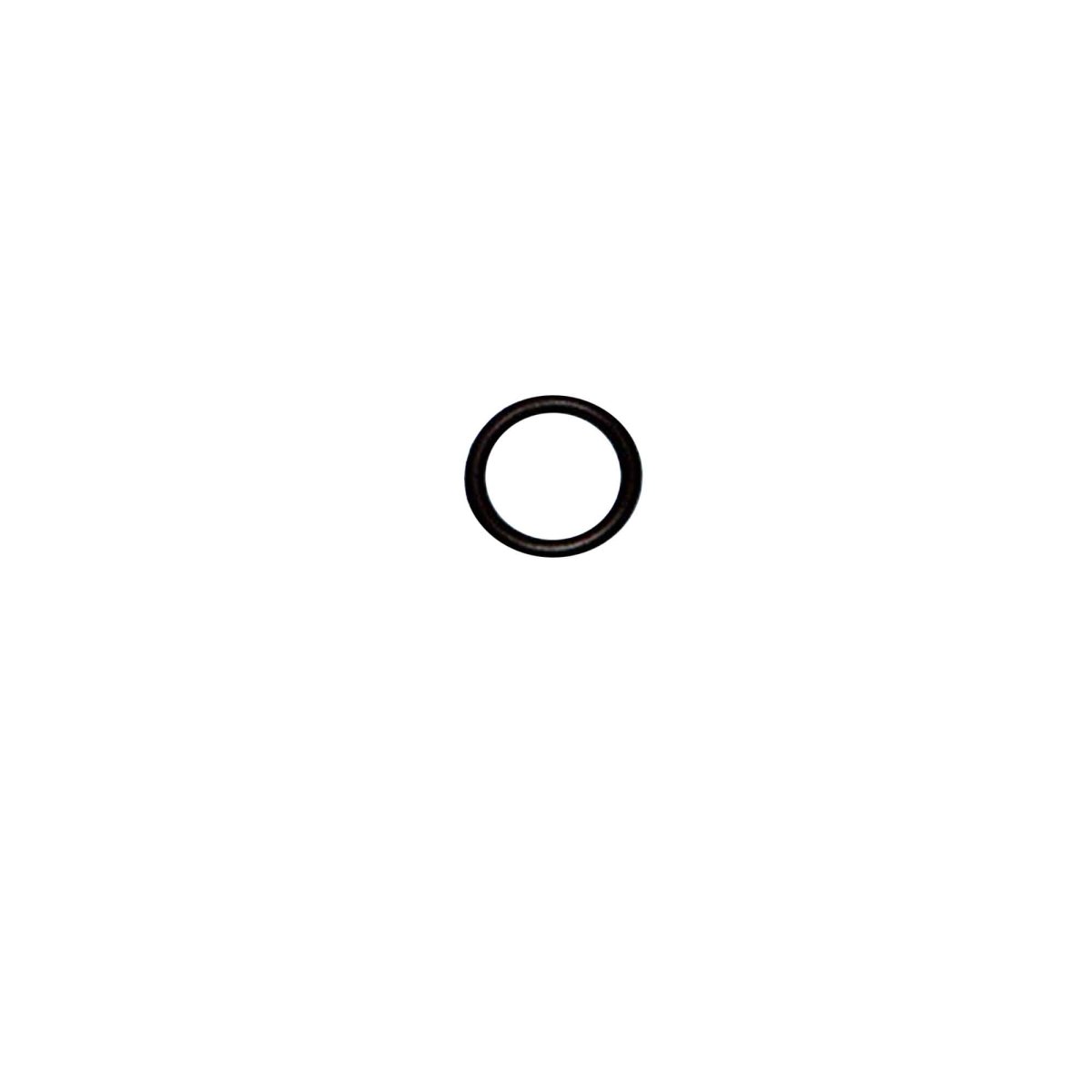

The Graco 25M247 O-ring kit provides 25 check valve housing O-rings for the Graco Fusion FX spray gun, a fast-wearing seal in plural-component service.Rebuilding with genuine Graco parts keeps factory tolerances in the gun, which matters for mix quality in spray foam and polyurea...

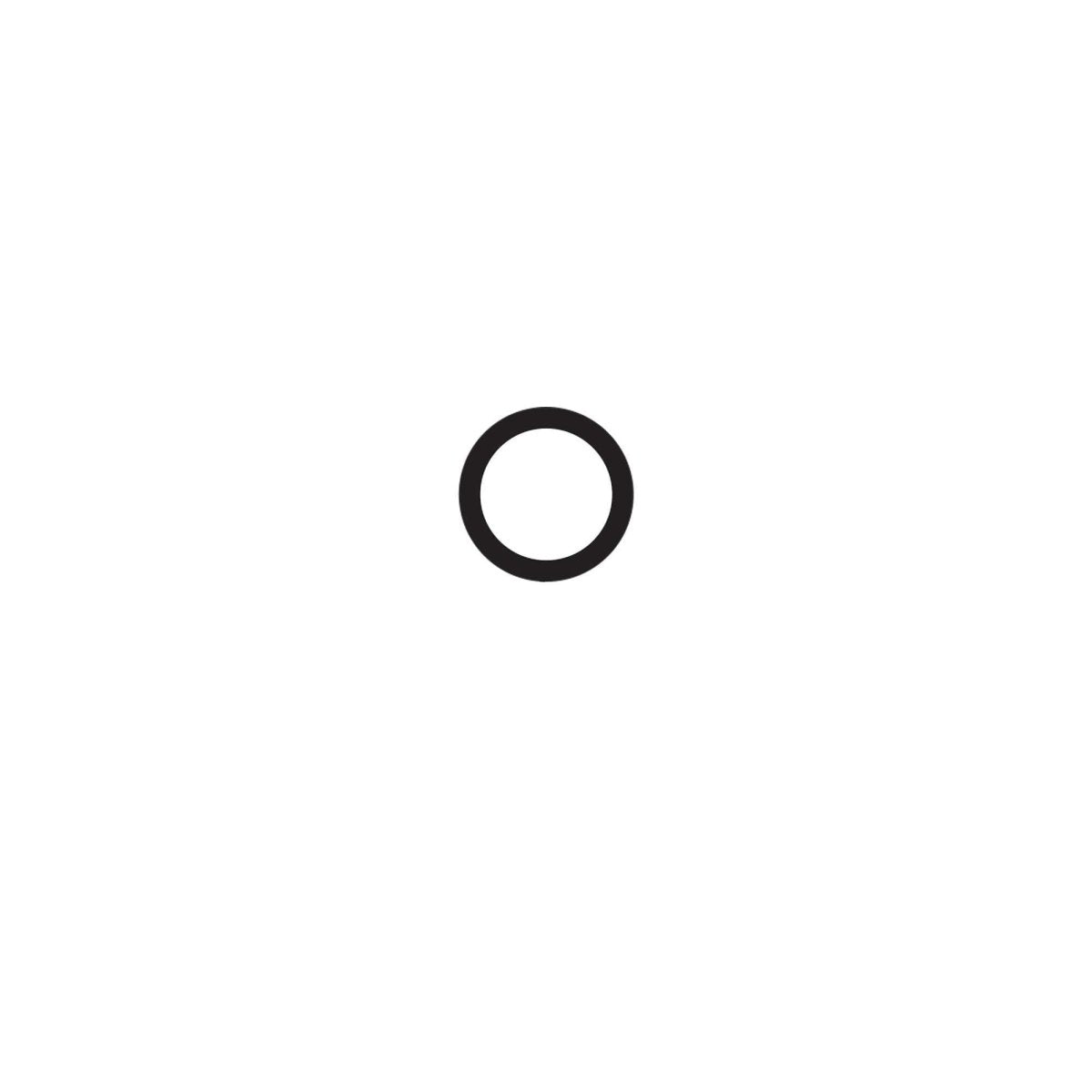

The Graco 2005699 O-ring 10 pack supplies genuine replacement O-rings for the piston assembly of the Graco Fusion FX spray gun (manual reference 2k).Rebuilding with genuine Graco parts keeps factory tolerances in the gun, which matters for mix quality in spray foam and polyurea...

The Graco 2001169 screw is an 8-32 x 0.25 in. flat-head screw used in the Graco Fusion FX plural-component spray gun. Replace it if the head is stripped or the screw is lost during service.Features Genuine Graco fastener 8-32 thread, flat head For the...

The Graco 118594 o-ring is a fluoroelastomer o-ring included in Graco's premium o-ring kit for the Graco (GlasCraft) Probler P2 dispense gun.Features Genuine Graco o-ring Fluoroelastomer material Part of the Probler P2 premium o-ring kit Specifications Part number: 118594 Graco description: O-ring, fluoroelastomer Material:...

The Graco 2001029 Fusion FX cartridge inlet check seal kit is the o-ring kit for the inlet checks of the Graco Fusion FX plural-component spray gun. Fresh inlet check seals help prevent leaks and crossover at the fluid inlets.Features Genuine Graco o-ring kit For...

The Graco 2000788 is the front air cap for the Graco Fusion FX plural-component spray gun, supplied with its o-ring. It mounts at the front of the gun and is a routine replacement when the cap is cracked, deformed or heavily coated with material.Features...
