NPT, NPSM and JIC: Reading Spray Equipment Fitting Labels

A fitting listing can contain a fraction, an acronym, a part number and the word “swivel,” all in the same short title. Each detail answers a different question. Treating the fraction as the whole specification is a quick way to order something that looks plausible but is wrong for the connection.

NPT, NPSM and JIC appear in spray-equipment parts catalogs because equipment uses more than one connection design. This guide explains the vocabulary for reading a listing and asking better parts questions. It is not an assembly, repair or substitution procedure.

Separate the thread from the place that seals

The threaded portion holds a connection together, but the threads are not always where the fluid seal is made. Some connections seal at tapered threads. Others use a shaped seat or another specified sealing feature.

That distinction matters when two pieces appear to start threading together. Engagement alone does not establish the correct seat, pressure capability, material compatibility or approved use. A replacement needs to match the complete connection described by the equipment manufacturer.

Keep three questions separate: What thread is specified? Where is the seal intended to form? Which complete part is approved for this location?

NPT identifies a tapered pipe thread

Swagelok's Thread and End Connection Identification Guide places NPT among tapered thread connections and describes the standard NPT seal at the threads. Its tables also separate nominal thread size from measured thread diameter.

In other words, a “1/8 NPT” description is a named thread size, not a promise that a ruler placed across the outside will read one-eighth inch. Do not rename an unidentified fitting from a quick diameter estimate.

For a real catalog example, the Probler P2 parts list identifies Graco 15U395 as a male-by-female 1/8 NPT adapter. That description includes both the thread designation and the two end types. Keep all of those details when comparing a listing.

NPSM needs the rest of the connection description

NPSM is a straight pipe-thread designation. In hose-fitting catalogs, it often appears with a female swivel and a described sealing seat. The additional words are important; “straight thread” alone does not tell you the whole sealing arrangement.

Parker's Pioneer fittings catalog, for example, lists NPSM female swivels with a 60-degree cone and separately lists a gasket-joint NPSM configuration. That is a useful reminder to read the complete entry rather than assuming every fitting with the same acronym works the same way.

Do not turn a catalog's general connection description into permission to pair an unknown hose with a spray gun. The exact hose assembly, mating part and equipment instructions still control the choice.

JIC describes a different sealing geometry

Parker describes JIC fittings as a metal-to-metal sealing design with a 37-degree flare and straight threads. The flare angle refers to the sealing surface; it is not the thread angle and it is not a pressure rating.

That is why a JIC description should not be shortened to “threaded swivel.” The geometry is part of what makes the connection a particular type. Similar-looking fittings from other families cannot be selected by appearance alone.

The same Graco Probler P2 manual, 313213ZAE, gives a concrete example: its parts list distinguishes 117634, a #6 JIC swivel union, from 117635, a #5 JIC swivel union. One digit changes the listed part. The fact that both are swivels does not make them interchangeable.

Use the part number to narrow the search

Start with the exact equipment model and the applicable parts drawing. Find the callout for the component, then carry its complete part number and description into your search. If the machine has been modified, identify the current configuration before assuming the original drawing still describes it.

Save the manual number and revision alongside the part number. A cropped photograph of a fitting may help explain a question, but it should accompany the equipment identity and drawing reference rather than replace them.

If a seller offers a replacement or superseding number, ask for the documented relationship. A search result containing the same acronym is not evidence of a manufacturer-approved substitute.

Know when the catalog explanation stops

Neither this vocabulary guide nor a product photograph establishes how to service a pressurized system. Follow the equipment maker's shutdown, pressure-relief and servicing instructions, and use qualified support where required. Do not disconnect, tighten or test a connection just to identify it while equipment is pressurized.

Before ordering, your notes should identify the equipment, manual revision, drawing callout, full part number, connection description and any unresolved question. If one item conflicts with the listing, stop there and resolve it with the equipment provider.

The useful result is a confirmed replacement, not a fitting that merely looks close. Reading every part of the label helps you reach that result without treating thread size as the entire specification.

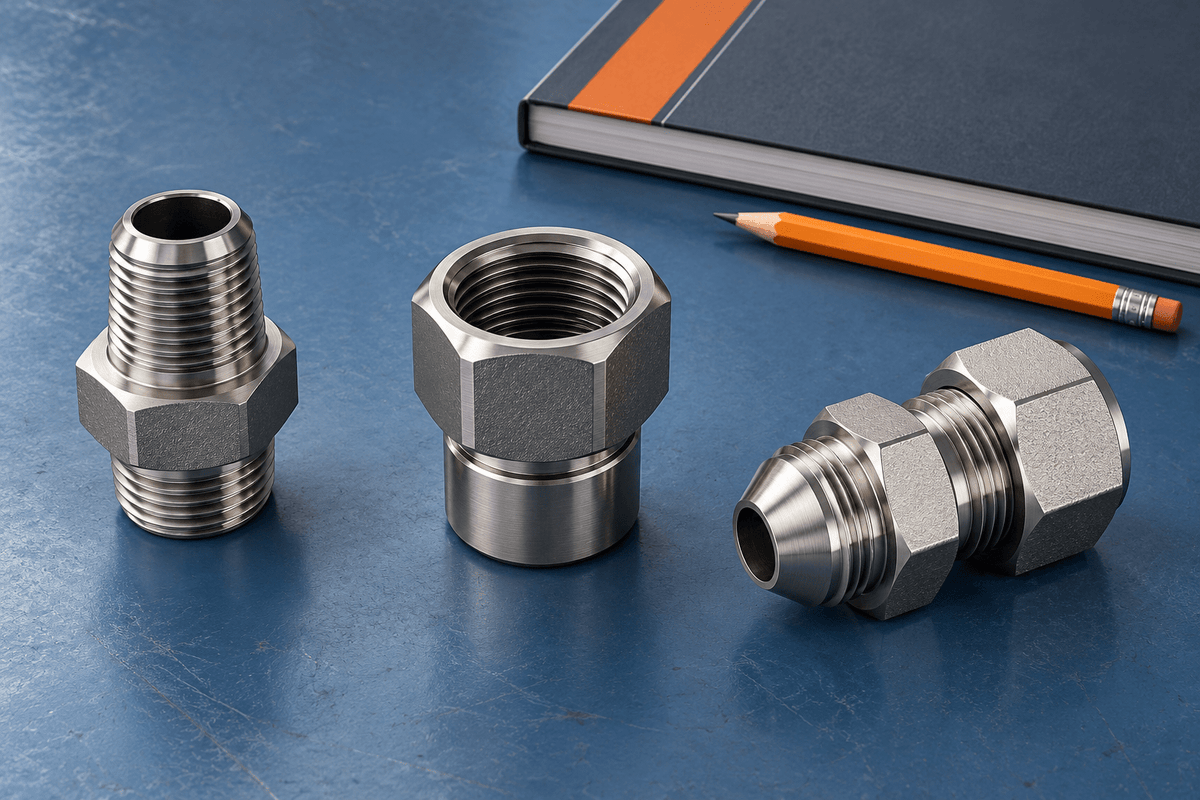

Cover: original conceptual illustration. It is not a connection diagram or a depiction of the listed Graco parts.
