Mesh and Microns: What Spray-Equipment Filter Numbers Actually Describe

A spray-equipment parts list may offer 40-mesh and 100-mesh screens. Another supplier may describe a filter in microns. It is tempting to turn those figures into a simple ranking and choose the biggest number.

The numbers describe different things. Understanding the vocabulary helps you read a parts listing, but it does not replace the equipment manufacturer's selection instructions. A screen with a familiar number is not automatically the right replacement for your gun or proportioning system.

Mesh is a count; microns measure size

For square woven wire cloth, mesh count describes the number of openings along a linear inch. A micron, also called a micrometer, is a unit of length: 0.001 millimeter. When a specification gives an opening in microns, it describes the gap rather than counting how often the pattern repeats.

Wire thickness matters. At the same mesh count, thicker wires leave smaller clear openings. That is why a mesh-to-micron table needs an assumed wire diameter; the count alone is incomplete. Cleveland Wire Cloth explains this relationship in its manufacturer's mesh-count guide.

For comparable square-weave constructions, a higher mesh count generally indicates a finer screen, while a smaller opening measurement indicates a finer opening. Do not mistake “100 mesh” for “100 microns,” and do not apply a square-weave conversion to every kind of filter medium.

Why a conversion chart cannot choose your part

A chart can explain a dimension. It cannot confirm the complete assembly. Imagine two listings with the same mesh count, but different screen diameters, lengths, end shapes or intended equipment models. Matching the count answers only one of the purchasing questions.

Similarly, a micron figure may be presented as an opening dimension or as part of a stated filtration-performance rating. Preserve the manufacturer's terminology and ask what it means in that listing. Do not silently replace a part description with a number from a general chart and treat the result as an approved equivalent.

This is especially important when searching by a photograph. A cylindrical screen can look much like another cylindrical screen while having a different part number and intended location. A visually close result is a lead to investigate, not confirmation.

A parts-list example: the Probler P2

Graco's Probler P2 manual, 313213ZAE, identifies GC2496 as a 40-mesh filter screen in its parts list. Its bulk-supply table separately lists 24R894 as a ten-screen 40-mesh kit and 24R895 as a ten-screen 100-mesh kit.

Those entries show why the whole line matters. The equipment family, reference position, mesh description, ordering number and package quantity each carry information. The presence of an optional mesh does not mean every user should switch to it.

When requesting a replacement, distinguish an individual component identifier from a bulk-kit ordering number. A request for “one filter” can otherwise mean one screen or one package. Confirm the current part and package with the manufacturer or authorized supplier for your exact equipment.

Application guidance has a boundary

Graco's airless spray-tip filter guide relates filter selection to the material and tip application. That is useful evidence that selection is application-dependent. Its advice is written for the airless equipment covered there; it should not be copied as a universal filter rule for plural-component guns.

A useful question is therefore, “Which documented screen option applies to this equipment configuration and material?” It is more precise than asking whether a higher mesh number is an upgrade. Keep the material supplier's requirements and the equipment manufacturer's instructions together when resolving that question.

Bring three pieces of information to the supplier

• The equipment reference: exact model and relevant manual revision, plus the screen's position in the illustrated parts list.
• The complete part description: current part or kit number, mesh description and package quantity. Keep any micron wording as written.
• The application question: whether you need the documented replacement or are asking about an alternative for a particular material or configuration.

If the seller's description and manual disagree, ask for a documented resolution before substitution. Do not resolve uncertainty by selecting whichever screen seems finer.

This guide is for reading and ordering information, not servicing pressurized equipment. Follow the applicable safety, pressure-relief and service instructions, and use qualified support for equipment work. Do not remove or bypass filtration, alter a screen or change operating pressure as an experiment based on a mesh number.

The practical takeaway is simple: understand the number, then identify the part. Mesh count can help describe a screen; only the complete, application-appropriate specification can establish the replacement you need.

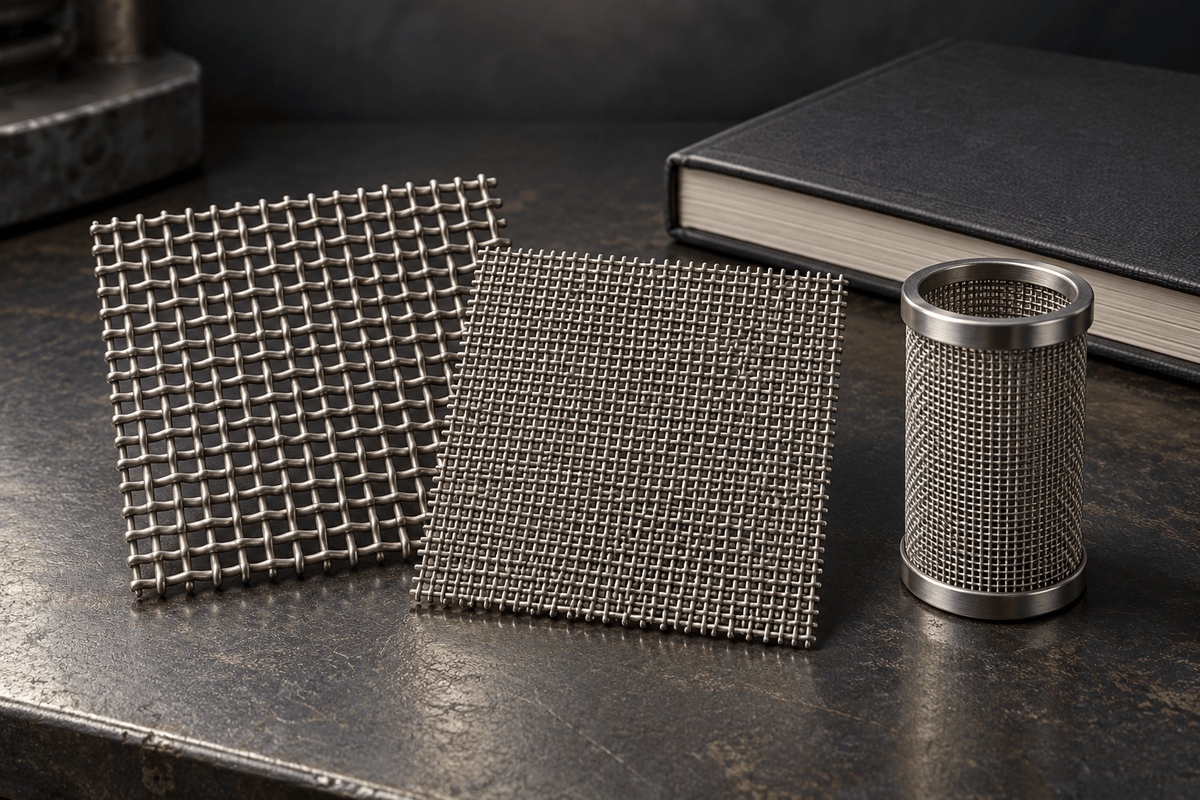

Conceptual illustration; the screen samples are not a dimensional reference or a parts-identification chart.
