PMC Xtreme Air-Purge Spray Gun with 00 Chamber (202718)
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Send us your machine model or part number and we'll confirm the fit before you order.

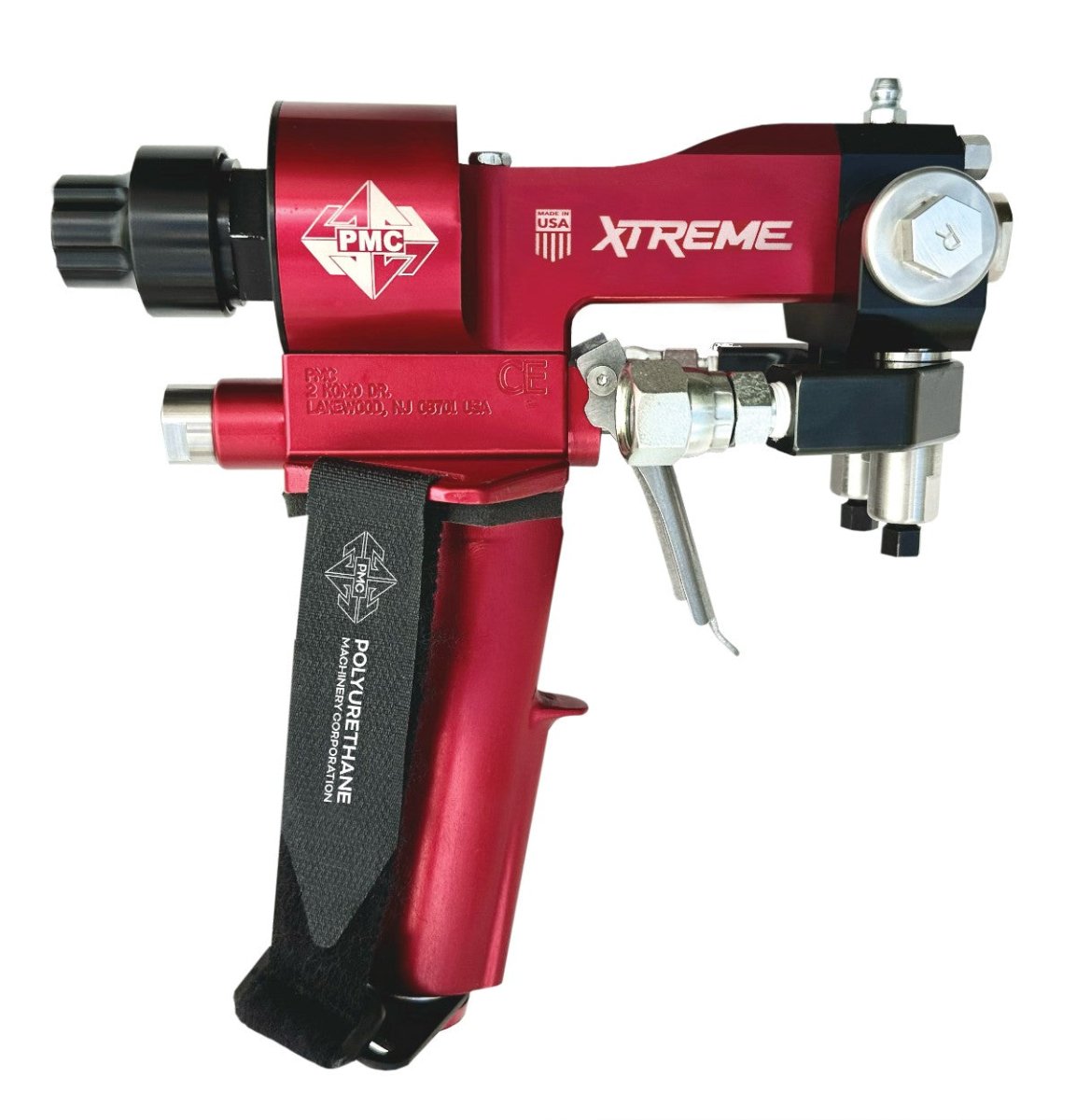

The PMC Xtreme air-purge spray gun with 00 chamber (PMC 202718, Xtreme w/00 chamber/PCT pkg) is a plural-component gun for spray foam and polyurea coatings. PMC built the Xtreme by combining the most useful features of its AP-2 and AP-3 guns, and the 00 diamond-plated mixing chamber suits lower-output work and detail spraying.
Features
- Diamond-plated mixing chamber; PMC rates it for up to 60 material spray cycles with the same chamber and resin side seal set
- Spool-and-liner trigger assembly for reliable, consistent spraying
- Spring-loaded check valve chemical lockout keeps material out of the handle porting and trigger area
- Fewer components than earlier PMC guns to cut downtime and service cost
Specifications
- PMC part number: 202718
- Mixing chamber: GU-814-DP-00 (diamond-plated)
- 00 chamber output: 7 lb/min at 1,000 psi; 11 lb/min at 2,000 psi
- Maximum working pressure: 3,500 psi (245 bar)
- Air pressure: 90–125 psi (6.2–8.6 bar)
- Gun output range (1:1): 3.1–50 lb/min with the appropriate chamber
- Weight: 2.4 lb (1.1 kg) without coupling block
- Dimensions: 7.1 in. H x 3.4 in. W x 7.5 in. L
Compatibility
Works with PMC plural-component proportioners and heated hose systems rated for its pressure. Uses PMC GU-814-DP series mixing chambers (00–04).
FAQ
What output does the 00 chamber give? PMC lists the GU-814-DP-00 at 7 lb/min at 1,000 psi and 11 lb/min at 2,000 psi.
Can I run bigger chambers later? Yes. The Xtreme accepts PMC's GU-814-DP chambers from 00 through 04, up to 47 lb/min at 2,000 psi with the 04.
Is a rebuild kit available? Yes, PMC offers a complete Xtreme gun rebuild kit (202757).
