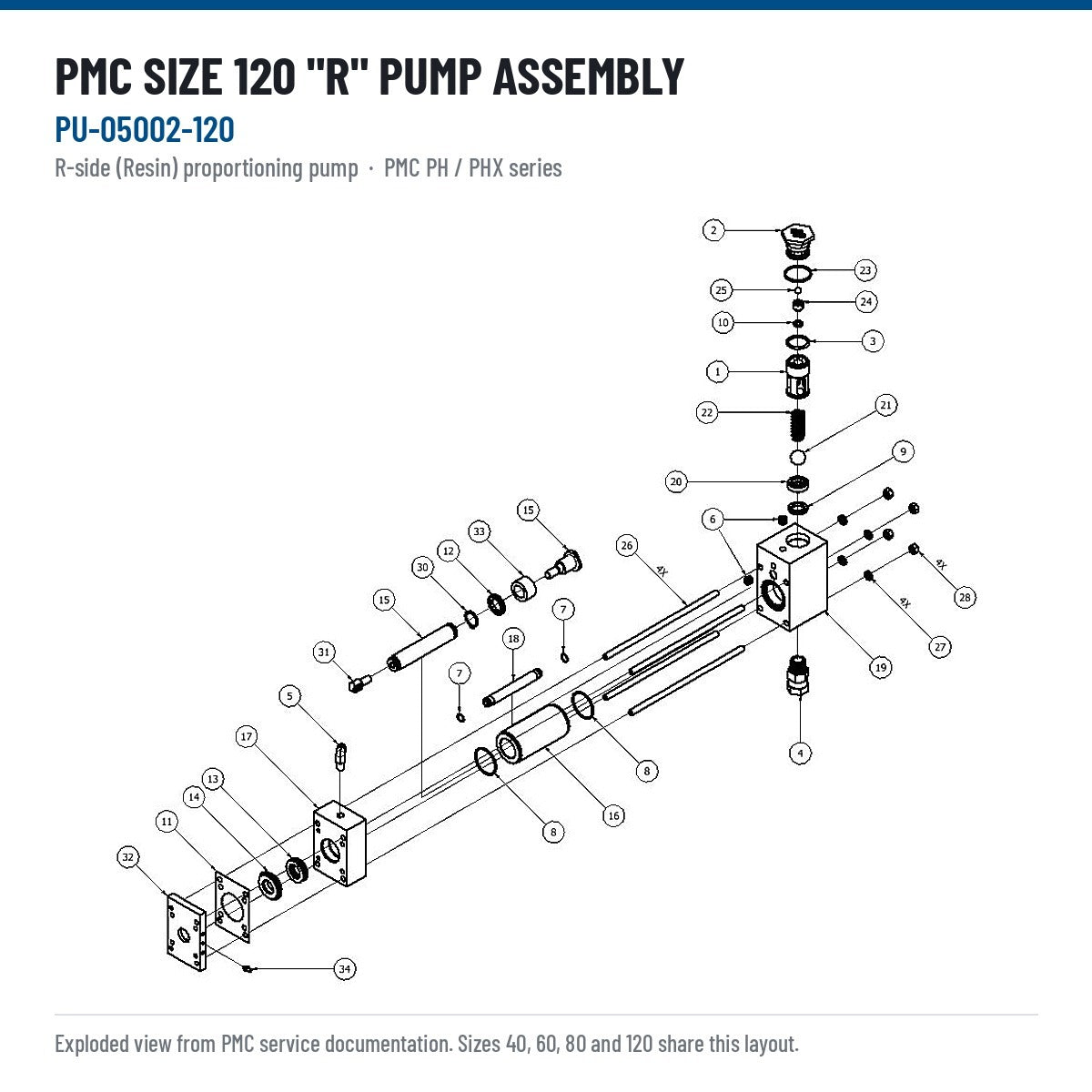

The PMC PU-05002-120 is the complete size 120 "R" (resin/polyol) proportioning pump assembly for PMC PH/PHX-series hydraulic proportioners.
Features
- Complete R-side pump assembly for fast replacement instead of a bench rebuild
- Size 120 is the pump size PMC uses for maximum output on the PH(X)-25 and PH(X)-40
- Serviceable with PMC R-pump rebuild kits (KT-05002-120, now listed by PMC as KT-07001)
- Genuine PMC assembly
Specifications
- Part number: PU-05002-120
- Brand: PMC
- Side: R (resin)
- Pump size: 120
Compatibility
PMC's PH(X)-25 and PH(X)-40 manuals list 120 and 80 pump sizes; the 120 size gives the rated 25 or 40 lb/min output at 1:1. Match the size of your A-side pump.
FAQ
Do the A and R pumps need to be the same size? For 1:1 materials the A and R pumps are normally the same size; confirm with your material's ratio requirements.
Which rebuild kit fits this pump? PMC's current rebuild instructions list KT-07001 for the PU-05002-120 R pump; ArmorThane also stocks KT-05002-120.
