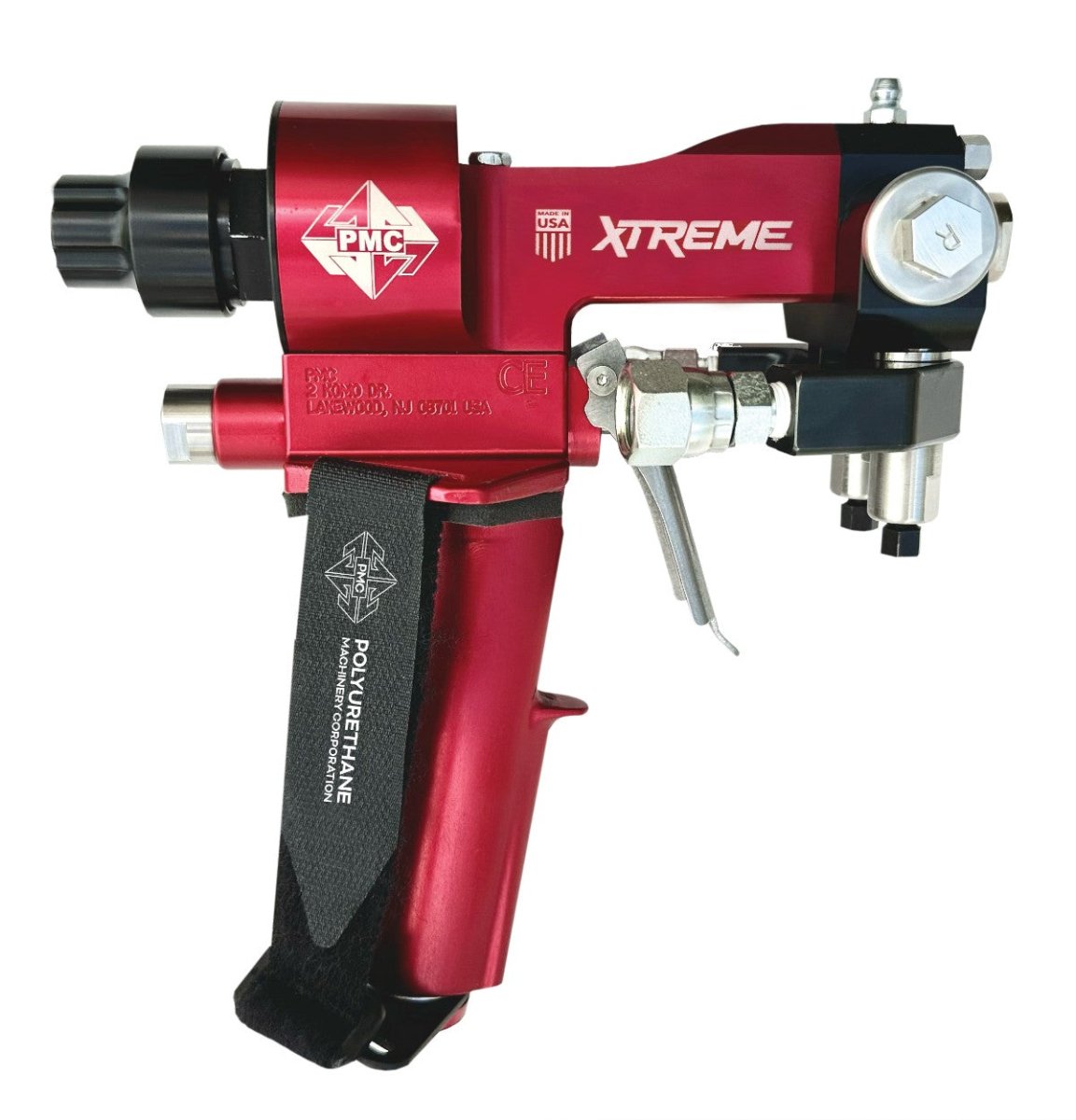

PMC Xtreme Air Purge Spray Gun, 01 Chamber / PCT Package (202724)
$2,755.00
Applicator pricingHidden until you sign in
ArmorThane applicators get pricing set for their account. Sign in to see yours.
PMC Xtreme Air Purge Spray Gun, 01 Chamber / PCT Package (202724)
$2,755.00
Genuine ArmorThaneFrom the manufacturer, since 1989
Real tech support(417) 831-5090 · Mon–Fri 8–5 CST
Pay over timeFinancing from 0% APR
Secure checkoutEncrypted payments by Shopify
Not sure this is the right part?
Send us your machine model or part number and we'll confirm the fit before you order.
The PMC Xtreme Air Purge Spray Gun, 01 Chamber/PCT Package (202724) is PMC's simplified, high-reliability spray and pour gun for foam and coatings.
Features
- Diamond-plated mixing chambers (GU-814-DP series); PMC reports up to 60 sets sprayed on one chamber
- Engineered resin side seals
- Spool-and-liner trigger assembly and spring-loaded check valve to prevent chemical seepage
- Fewer parts for less downtime
Specifications
- Part number: 202724
- Purge type: Air purge
- Maximum fluid pressure: 3,500 psi
- Maximum air pressure: 125 psi
- Output (1:1): 3.1–50 lb/min
- Weight: 2.4 lb without coupling block; 3.1 lb with
- Dimensions: 7.1" H x 3.4" W x 7.5" L
Compatibility
Spare parts: chamber GU-814-DP-01, chamber/PCT kit KT-814-DP-01, side seal 202454, full rebuild kit 202757.
FAQ
What spare parts should I keep? A spare chamber/PCT kit, side seals and the 202757 rebuild kit cover most field repairs.
