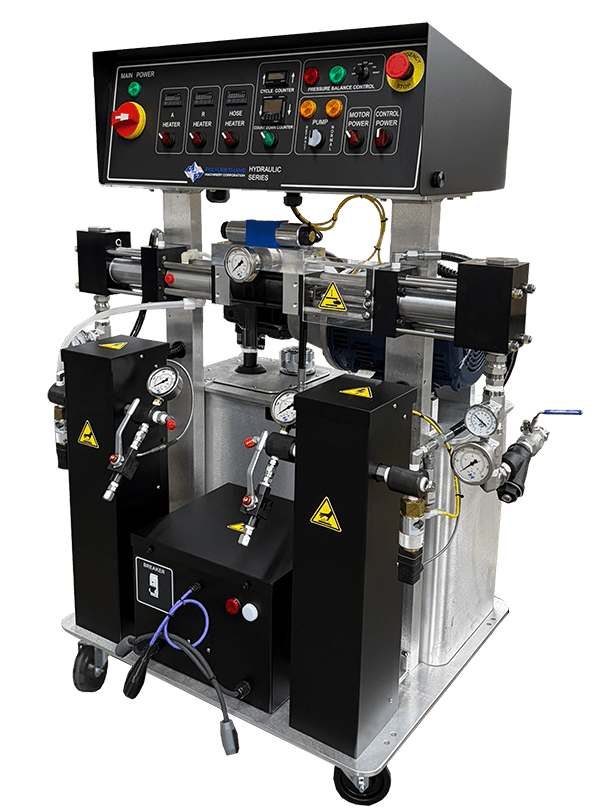

PMC PH-25 Hydraulic Spray Foam Proportioner, 2,000 psi
$0.00
Applicator pricingHidden until you sign in
ArmorThane applicators get pricing set for their account. Sign in to see yours.
PMC PH-25 Hydraulic Spray Foam Proportioner, 2,000 psi
$0.00
Genuine ArmorThaneFrom the manufacturer, since 1989
Real tech support(417) 831-5090 · Mon–Fri 8–5 CST
Pay over timeFinancing from 0% APR
Secure checkoutEncrypted payments by Shopify
Not sure this is the right part?
Send us your machine model or part number and we'll confirm the fit before you order.
The PMC PH-25 is a 2,000 psi hydraulic proportioner from PMC's Classic line, sized for residential spray foam insulation.
Features
- Classic two-heater design
- 8, 10 or 12 kW dual heater options
- 90 V hose heat for runs up to 410 ft
- Single- or three-phase power options
Specifications
- Model: PH-25 (SKU EQU-PH25)
- Maximum working pressure: 2,000 psi (138 bar)
- Output: 28 lb/min
- Heater: 8, 10 or 12 kW dual heater
- Hose heat: 90 V, up to 410 ft
- Power: 1 x 208–230 V 60 Hz, 3 x 208–230 V or 3 x 380 V 50/60 Hz
- Dimensions / weight: 40" W x 26" D x 52" H, 500 lb
FAQ
What is the difference between PH-25 and PHX-25? The PH-25 is a 2,000 psi foam machine; the PHX-25 is rated to 3,000 psi for coatings.
