PMC Size 120 A (ISO) Pump Rebuild Kit (KT-05001-120)
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Send us your machine model or part number and we'll confirm the fit before you order.
The PMC KT-05001-120 is the 120 ISO (A-side) pump rebuild kit for PMC PH/PHX-series proportioners, containing the seals and wear parts needed to restore a leaking or low-pressure A pump.
Features
- Restores sealing on the ISO pump to stop leaks and pressure dive

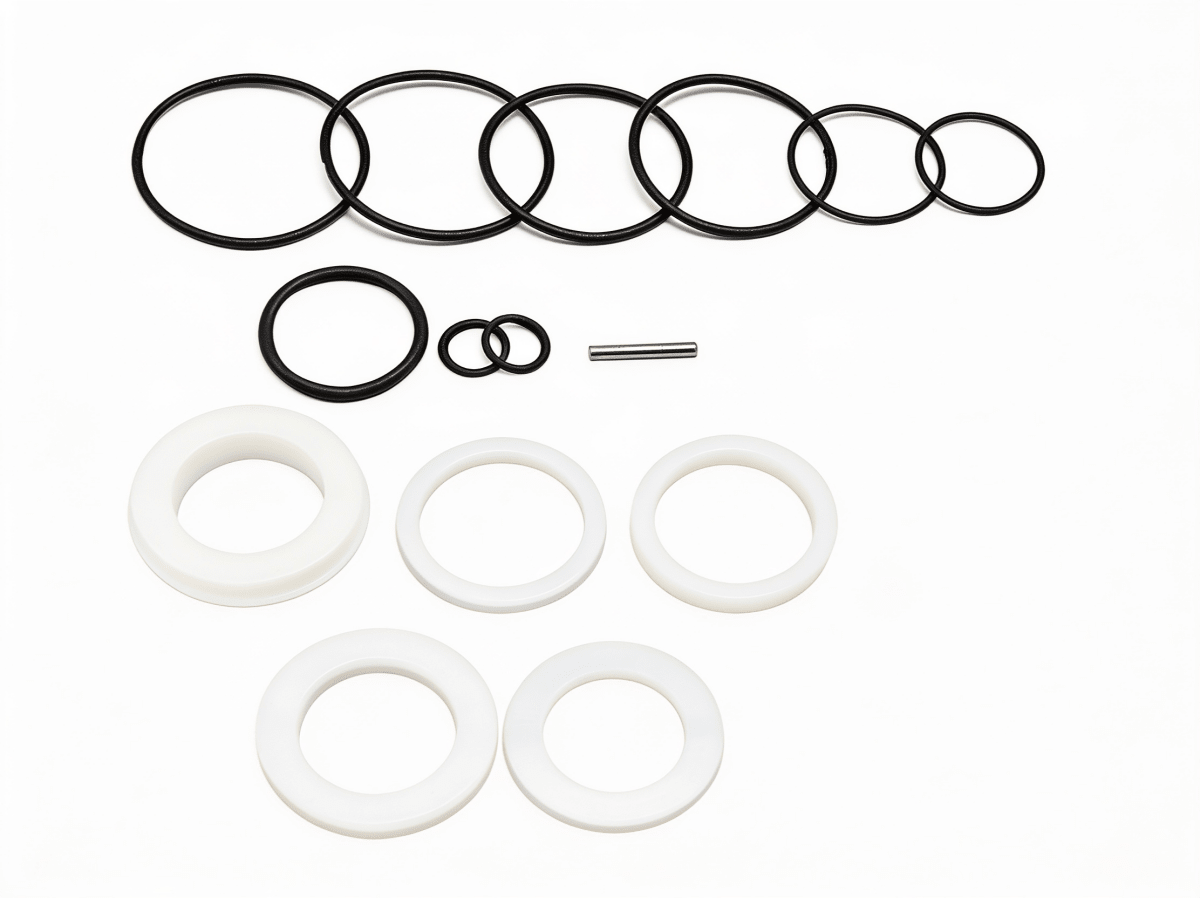

- Includes the cylinder bearing, flange gasket, piston support washer, piston seal wiper, piston seal, cylinder seal, pin and O-rings listed by PMC
- Rebuilding is usually far less costly than replacing the whole pump
- Genuine PMC kit
Specifications
- Part number: KT-05001-120
- Brand: PMC
- Pump: Size 120, A (ISO) side
- Current PMC number: KT-07000 (120 A pump rebuild kit)
Compatibility
Listed as the 120 Iso Pump Rebuild Kit in PMC's classic PH/PHX-25 and PH/PHX-40 manuals. Distributors show KT-05001-120 as the old number for KT-07000.
FAQ
How do I know my A pump needs a rebuild? Material weeping past the shaft, crystallized ISO at the lube cylinder or pressure dropping on one stroke are common signs.
Is there an R-side kit? Yes. The matching resin-side kit is KT-05002-120, also stocked by ArmorThane.
