Graco XTR-7+ Gun Parts

The Graco 17G980 swivel (ref. 14b) is the handle swivel for Graco XTR7+ airless spray guns and the XTR7 high-flow models. A good swivel lets the hose turn freely at the gun, reducing wrist fatigue on long heavy-coating jobs.Features Genuine Graco swivel For XTR7+...

The Graco 15E083 round handle is the round handle sleeve (ref. 15) listed for Graco XTR7 airless spray guns. A fresh sleeve restores a secure, comfortable grip on the gun.Features Genuine Graco round handle sleeve For listed XTR7 and XTR7+ models Replace a worn,...

The Graco 19B239 end cap (ref. 4) is used on the Graco XTR7+ airless spray gun, including the High Flow versions. It closes the rear of the gun body.Features Genuine Graco XTR7+ end cap Fits standard and High Flow XTR7+ models Pairs with gun...

The Graco 17V749 handle repair kit (ref. 14) rebuilds the handle of Graco XTR7 high-flow airless spray guns. It is listed for the XTR706 and 17V677 in the XTR5/XTR7 manual, and for the XTR7+ High Flow models XTR710–XTR715 and 17V677 in the XTR5+/XTR7+ manual.Features...

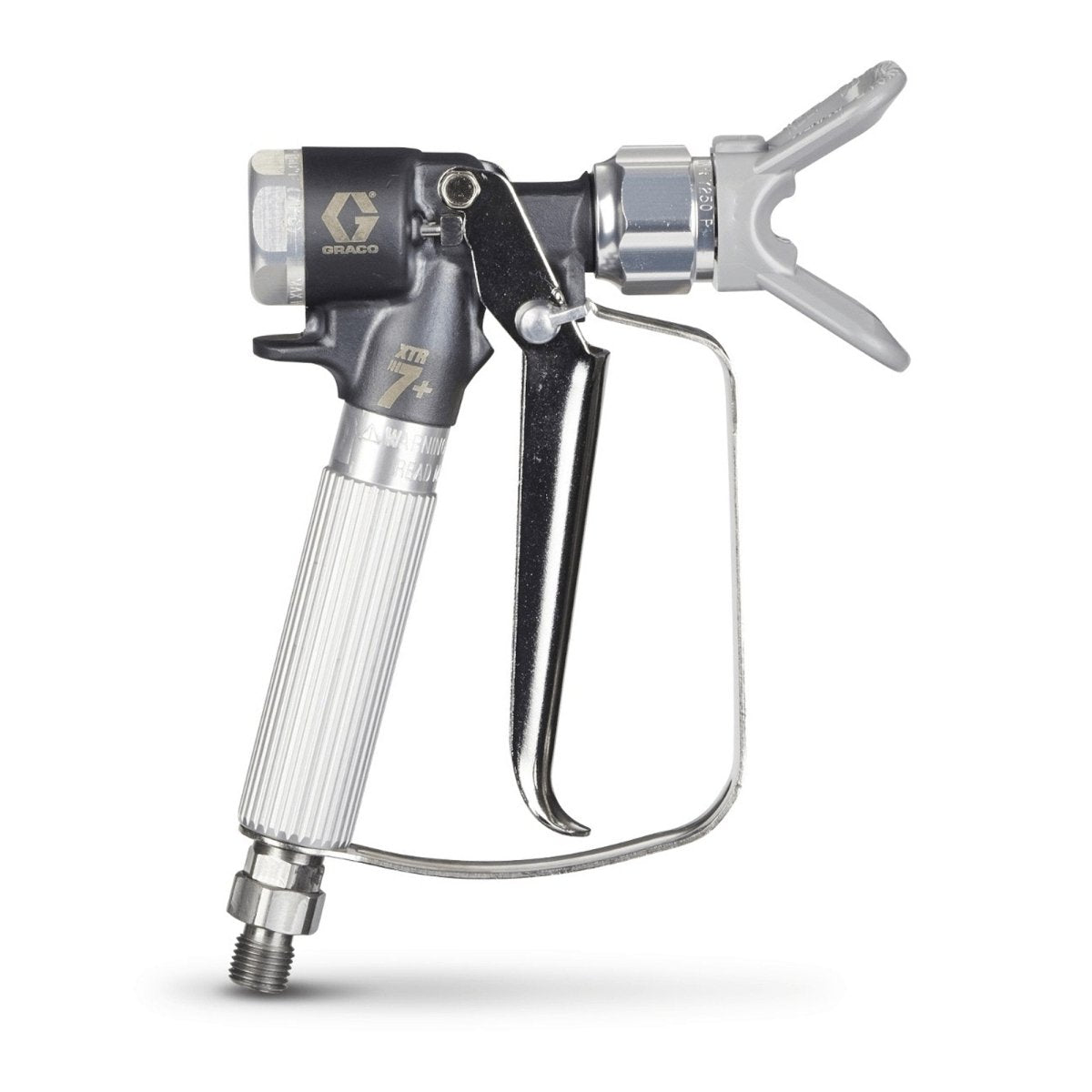

The Graco 19B238 is the gun body (ref. 1) for the Graco XTR7+ airless spray gun, models XTR720 through XTR725. The XTR7+ is Graco's high-pressure gun for heavy protective coatings and is rated to 7250 psi (50 MPa, 500 bar). Replace the body when...

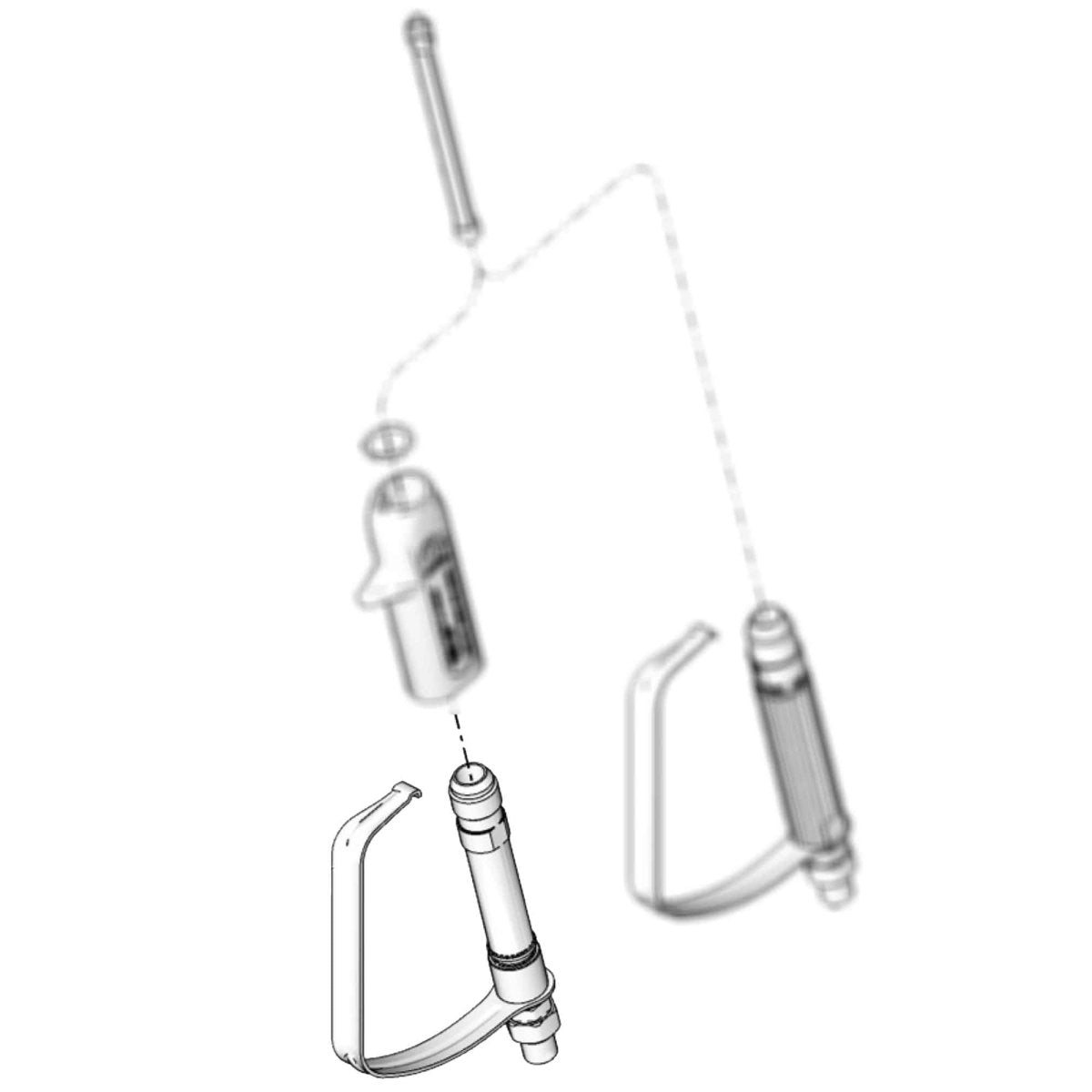

Graco 248952 is the handle kit for Graco XTR5+ and XTR7+ airless spray guns.Replacing worn gun parts restores clean shutoff and a consistent fan, reducing wasted material and touch-up work.Features Replaces a cracked or damaged gun handle Fits both XTR5+ and XTR7+ guns Genuine...

Graco 276997 is the insulated handle sleeve (handle control molding) for Graco XTR5+ and XTR7+ airless spray guns.Always engage the trigger lock and follow Graco's Pressure Relief Procedure before servicing an airless gun or changing tips.Features Replaces a torn or worn handle sleeve Insulated...

The Graco 119740 o-ring is a genuine Graco replacement o-ring.Features Genuine Graco part 119740 OEM o-ring Keep spares for rebuilds Specifications Part number: 119740 Graco description: O-ring Brand: Graco (genuine OEM) CompatibilityConfirm this part number in the parts list of your Graco manual before...

The Graco 287034 gun filter combo contains one 60 mesh and one 100 mesh in-handle filter for Graco airless spray guns. A clean gun filter catches debris before it reaches the tip, which reduces tip plugging and helps you hold a smooth, even fan.Features...

The Graco 117350 spring is a genuine Graco replacement spring for Graco spray equipment.Features Genuine Graco part 117350 OEM replacement spring Exact factory fit Specifications Part number: 117350 Graco description: Spring Brand: Graco (genuine OEM) CompatibilityConfirm this part number in the parts list of...

The Graco 249199 60 mesh filter is a handle filter for Graco airless spray guns, catching debris before it reaches the spray tip.Genuine Graco parts keep the gun working at its designed pressure rating, which is important for safe high-pressure spraying.Features 60 mesh screen...

Graco 245881 is the retainer seal assembly for Graco XTR5+ and XTR7+ airless spray guns, sealing around the needle behind the fluid section.Contractors who spray every day keep common gun parts in the truck so a worn part never stops the job.Features Stops fluid...

The Graco 15E088 needle retainer is a genuine Graco replacement part that holds the needle in place in the equipment it is designed for. Order it by part number to match your equipment's parts list.Features Genuine Graco needle retainer Ordered by Graco part number...

The Graco 179733 seal sleeve (ref. 21) is used in every model of the Graco XTR5 and XTR7 airless spray guns, and in the newer XTR5+ and XTR7+ guns. It is a common replacement during XTR gun service.Features Genuine Graco seal sleeve Fits all...

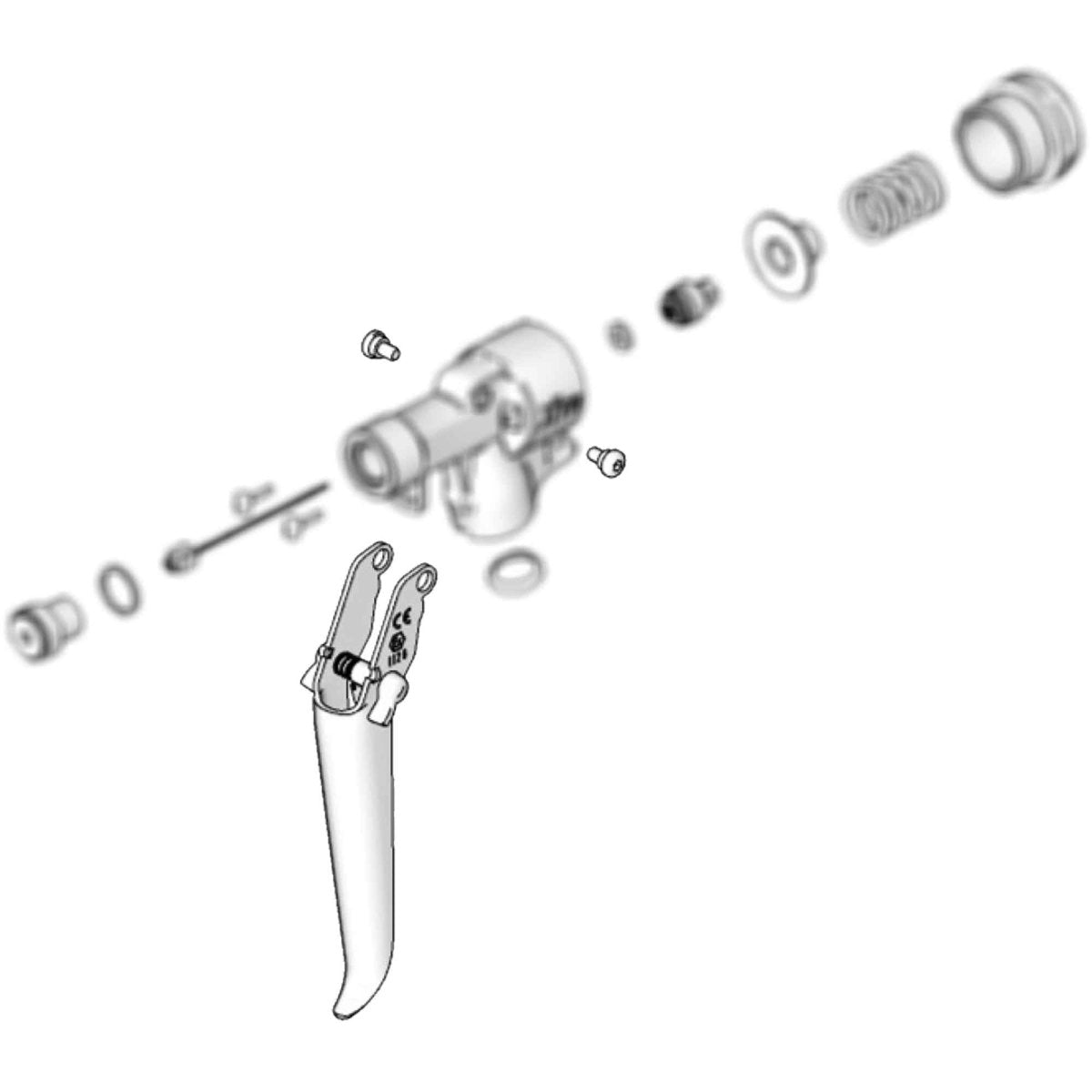

The Graco 287449 trigger kit is a straight, 4-finger replacement trigger for Graco XTR series high-pressure airless spray guns. A four-finger trigger spreads the pull across the whole hand, which many applicators prefer on long coating days with heavy materials.Features Straight 4-finger trigger profile...

The Graco 287451 trigger kit is a curved (contour) 4-finger trigger for Graco XTR 7 high-pressure airless spray guns. The contoured shape follows the fingers, making it a popular choice for operators who spray heavy coatings for hours at a time.Features Curved, contoured 4-finger...

The Graco 287450 trigger kit is the 2-finger trigger for Graco XTR 7 high-pressure airless spray guns. A 2-finger trigger leaves your remaining fingers on the handle for a firmer grip and tighter control when cutting in or spraying detailed areas.Features 2-finger trigger for...

The Graco 156766 gasket (ref. 9) is used in the valve seat area of all Graco XTR5 and XTR7 airless spray guns, including the XTR5+ and XTR7+ models. Replace it whenever you service the seat to keep the gun sealing properly.Features Genuine Graco gasket...

The Graco 15E085 pin actuator is a genuine Graco replacement part. Order it by part number when your gun's parts list calls for a 15E085 actuator pin.Features Genuine Graco part Ordered by Graco part number for an exact match Replace a bent or worn...

The Graco 245858 seat valve is the replacement valve seat for Graco XTR5+ and XTR7+ airless spray guns.Genuine Graco parts keep the gun working at its designed pressure rating, which is important for safe high-pressure spraying.Features Restores tight shutoff when the gun drips or...

The Graco 203953 screw cap is a #10-24 x 3/8 in. (10 mm) fastener used across a wide range of Graco spray guns, from Fusion foam guns to Silver Plus airless guns.Plural-component guns see heat, pressure and isocyanate exposure every day, so scheduled replacement...

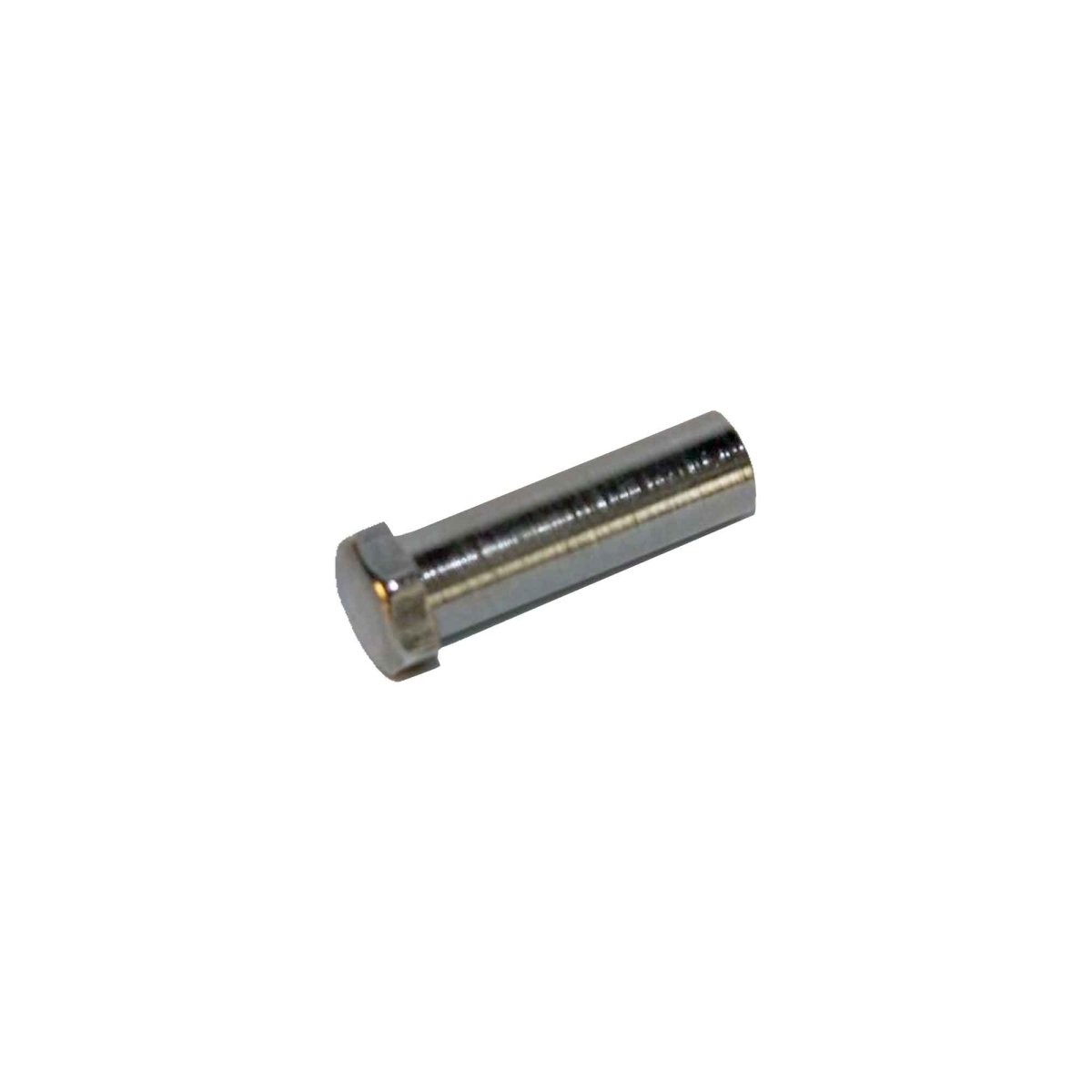

The Graco 192272 pin is the pivot pin listed as ref. 6 in the Graco Fusion AP and Fusion PC spray gun parts lists. It is the pin the trigger (15B209) pivots on.Features Genuine Graco pivot pin Used on both Fusion AP and Fusion...
