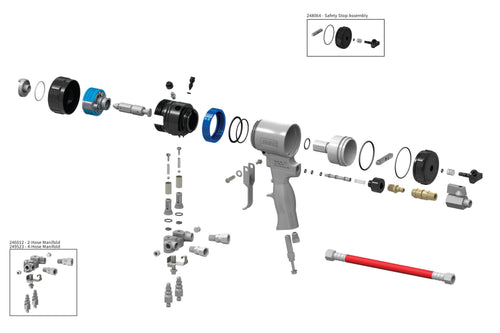

Graco Fusion PC Gun Parts

The Graco 15B206 safety lock is the genuine trigger safety for Graco Fusion AP and Fusion PC plural-component guns (ref. 4). Engaging the safety lock keeps the gun from being triggered when you are not spraying, during breaks, and while servicing the gun.Features Genuine...

Graco 26C937 is the 1/4 NPT tool holder plug for the Graco Fusion PC plural-component spray gun.Worn seals and O-rings are the most common cause of crossover, leaks and pattern problems on plural-component guns, so keeping replacements on hand saves downtime.Features 1/4 NPT threads...

The Graco 26C775 blue lock ring secures the front end of the Graco Fusion PC plural-component spray gun.Plural-component guns see heat, pressure and isocyanate exposure every day, so scheduled replacement of wear parts is part of normal maintenance.Features Replaces a cracked, worn or lost...

The Graco 19Y303 fluid housing kit replaces the fluid housing on the Graco Fusion PC plural-component spray gun together with the parts that mount to it. It is the fastest way to restore a Fusion PC front end that has a damaged housing or...

The Graco 15B993 lock ring spring is part of the 2-hose fluid manifold (246012) used on Graco Fusion AP and Fusion PC plural-component spray guns (ref. 12g). Replace it if it is weak, deformed or missing so the manifold and lock ring stay secure.Features...

The Graco PC20FL Fusion PC mix chamber is a flat-pattern, size 000 mix chamber for the Graco Fusion ProConnect (PC) plural-component spray gun. It is Graco's smallest PC size, suited to lower-output spray foam and coating work.Features Flat spray pattern for wide, even passes...

The Graco 248064 safety stop assembly is the complete rear safety stop for Graco Fusion AP and Fusion PC plural-component spray guns.Crews that spray foam or polyurea daily typically keep a stock of Fusion wear parts in the rig to avoid losing a day...

Graco 249523 is the four-hose fluid manifold for Graco Fusion AP and Fusion PC plural-component spray guns.Before servicing any Fusion gun, follow the Pressure Relief Procedure in the Graco manual and close the manifold valves.Features Four-hose manifold assembly (Graco includes items 12a, 12b, 12d–12g...

The Graco 15B204 cylinder cap closes off the air cylinder at the back of Graco Fusion AP and Fusion PC plural-component guns (ref. 5). A sound cylinder cap and fresh o-rings help the air section open and close the gun reliably.Features Genuine Graco cylinder...

The Graco 246012 fluid manifold is the complete two-hose manifold that connects the A and B hoses to Graco Fusion AP and Fusion PC plural-component spray guns.Crews that spray foam or polyurea daily typically keep a stock of Fusion wear parts in the rig...

The Graco 114070 spring is a genuine Graco spring listed in the parts list of the Graco Fusion AP (air-purge) spray gun, rated to 3500 psi maximum fluid working pressure.Features Genuine Graco part 114070 Fusion AP replacement spring One used per gun Specifications Part...

The Amaano 248135-R large piston o-ring kit is a replacement seal for the large piston of the Graco Fusion AP air purge gun. Features Matches the Graco Fusion AP large piston position (Graco part 248135) Field-tested by spray foam contractors in addition to lab...

The Graco 15B205 piston stop is a genuine air-section part for Graco Fusion AP and Fusion PC spray guns (ref. 28 in both parts lists). Replace it when it is worn or lost during an air-section rebuild.Features Genuine Graco part Used in both Fusion...

Keep your Fusion AP gun sealing properly with the Amaano Amaano Large Piston O-Ring Kit, Disposable (248135-D), made for the gun's large piston. Features Matches the Graco Fusion AP large piston position (Graco part 248135) Field-tested by spray foam contractors in addition to lab...

Graco 248135 is a package of 6 piston O-rings for the Graco Fusion AP air-purge spray gun, sealing the large air piston.Rebuilding with genuine Graco parts keeps factory tolerances in the gun, which matters for mix quality in spray foam and polyurea work.Features 6...

The Graco 15B208 air valve plug closes the air valve bore on Graco Fusion AP and Fusion PC spray guns (ref. 2). It holds the air valve components in place and is sealed with a PTFE o-ring (Graco pack 248137).Features Genuine Graco air valve...

The Graco 15B565 ball valve is a 1/4 npt male-by-female ball valve listed in the tool kit and accessory parts for Graco Fusion AP and Fusion PC plural-component spray guns (ref. 51). It gives the applicator a quick shutoff on the gun air supply.Features...

The Graco 117485 compression spring is the air valve spring used in the Graco Fusion family: it appears in the Fusion AP, Fusion CS and Fusion MP parts lists (the MP manual lists it as "Spring, air valve").Features Genuine Graco compression spring Air valve...

The Graco 117509 quick-disconnect is the male 1/4 in. NPT(M) air fitting used as the air inlet on Graco Fusion guns. Graco specifies a 1/4 NPT quick-disconnect nipple as the Fusion AP air inlet, and notes this part is for round and flat pattern...

Amaano Cleanoff Air Valve O-Ring, Disposable (246354-D) is an aftermarket o-ring for the cleanoff air valve position on Graco Fusion AP spray foam guns. Features Matches the Graco Fusion AP cleanoff air valve position (Graco part 246354) Field-tested by spray foam contractors in addition...

The Graco 15B202 valve spool is the genuine replacement spool for the air valve section of Graco Fusion AP and Fusion PC plural-component spray guns (ref. 32 in both parts lists). Replace it when the air valve sticks, leaks or no longer shifts cleanly.Features...

The Graco 117510 air line coupler is the 1/4 in. NPT coupler used on the air line of Graco Fusion AP, Fusion CS and Fusion MP spray guns, mating with the 117509 male quick-disconnect at the gun.Features Genuine Graco air line coupler 1/4 in....

Keep your Fusion AP gun sealing properly with the Amaano Amaano Cleanoff Air Valve O-Ring, Reusable (246354-R), made for the gun's cleanoff air valve. Features Matches the Graco Fusion AP cleanoff air valve position (Graco part 246354) Field-tested by spray foam contractors in addition...
