Graco RAC 5 SwitchTip Reversible Airless Spray Tip (286307)
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Send us your machine model or part number and we'll confirm the fit before you order.

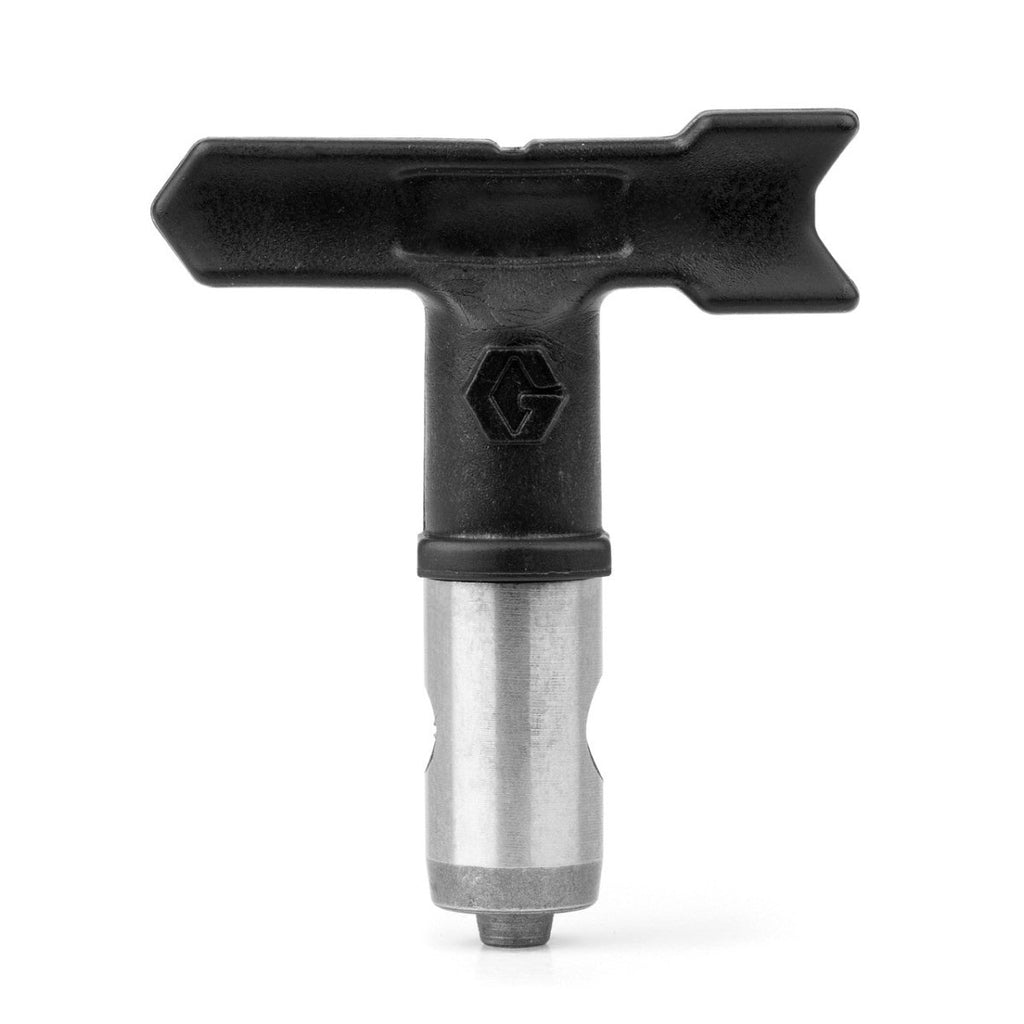

The Graco RAC 5 SwitchTip (Reverse-A-Clean) is Graco's widely used black-handle reversible airless spray tip. It delivers a precise spray with excellent fan pattern life and a high-quality finish on residential and commercial jobs; when a clog happens, turn the tip, blow it out and keep going.
Features
- Reversible design clears clogs without removing the tip
- Excellent fan pattern life and high-quality finish
- Large raised size numbers stay legible even when covered with paint
- Wide selection of orifice sizes and fan widths
- Solvent-resistant seal available
Specifications
- Base part number: 286307 (RAC 5, size 307)
- Brand: Graco
- Tip style: RAC 5 SwitchTip, black handle
- Size range offered by Graco: 0.007–0.065 in. orifices; 2–4 in. to 18–20 in. fans
Compatibility

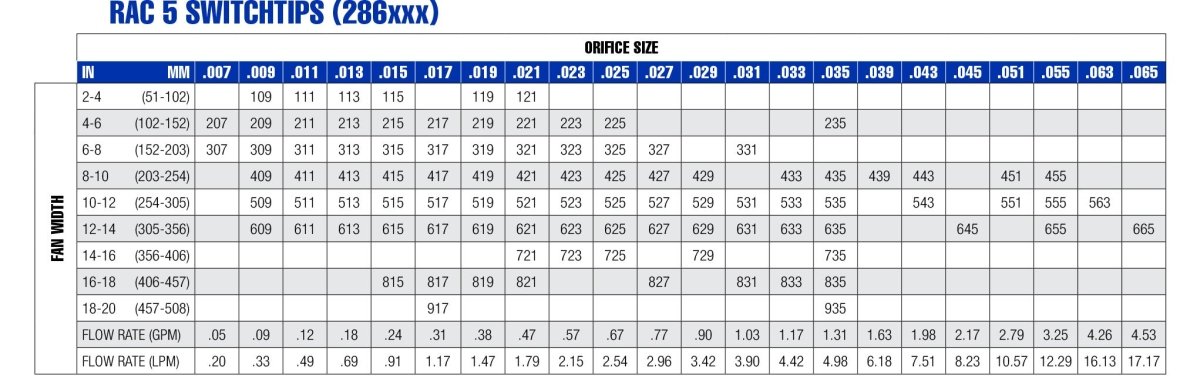

RAC 5 tips fit Graco RAC 5 tip guards. The three-digit code reads as: first digit x 2 = approximate fan width in inches at 12 in. from the surface; last two digits = orifice in thousandths of an inch.
FAQ
How do I read the tip number? For RAC 5 tips, 286 is the series; the next digit doubled gives the fan width and the last two digits give the orifice size.
Can I use it with hot solvents? Graco offers a solvent seal for RAC 5 tips.
Call (417) 831-5090 if you need help picking a tip size.
