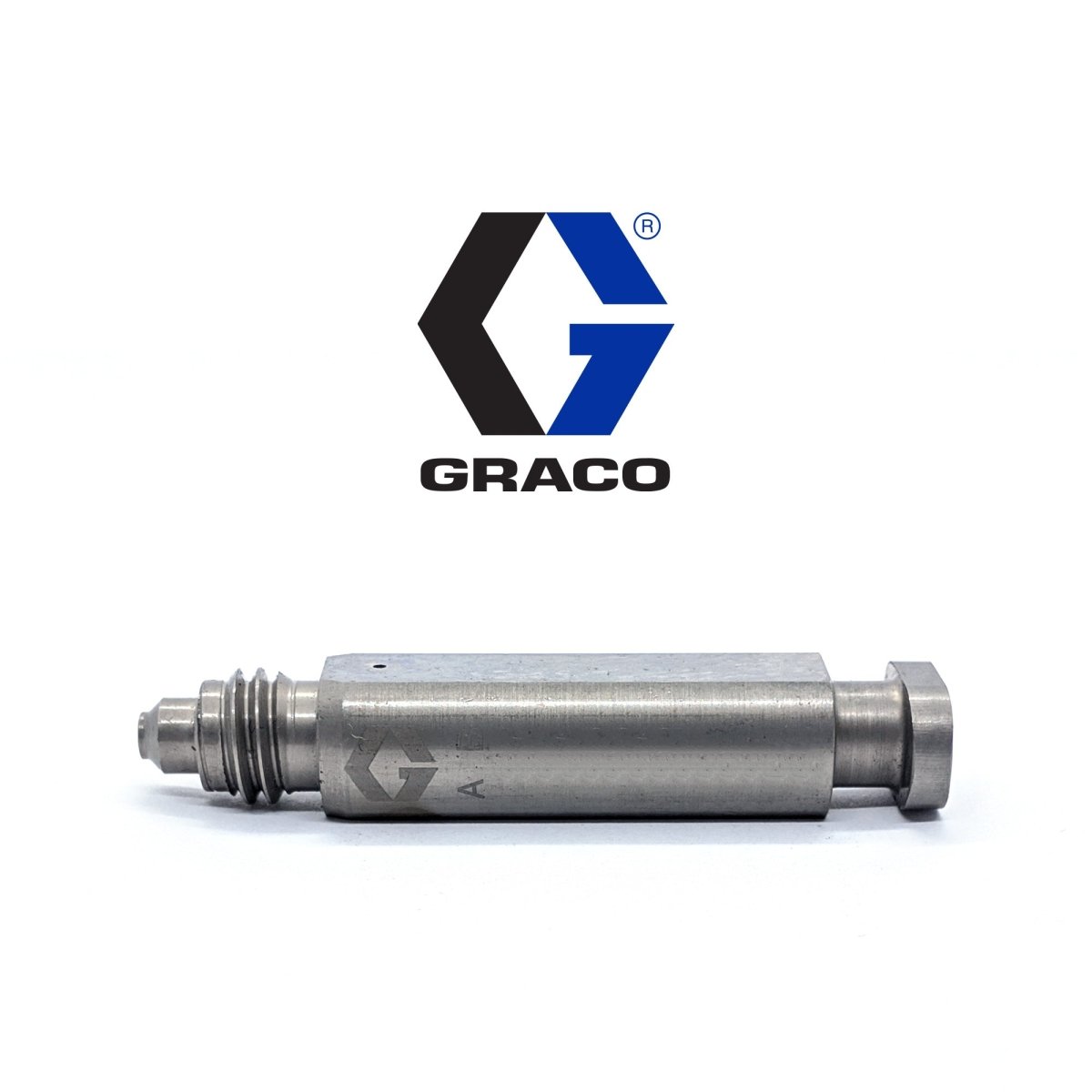

Graco Fusion AP Mix Chamber Kit, Round 0.047 (AR4747)
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Send us your machine model or part number and we'll confirm the fit before you order.
The Graco AR4747 mix chamber kit is a round-pattern (AR = air purge, round) mix chamber for the Graco Fusion AP air-purge plural-component spray gun, in the 0.047 in. size. It is a common choice for spray foam and polyurea contractors who need a mid-range output.
Features
- Round spray pattern for the Fusion AP
- 0.047 in. size
- Kit includes cleanout drill bits
- Genuine Graco replacement to restore mix quality
Specifications
- Part number: AR4747
- Brand: Graco
- Pattern: Round (air purge)
- Size: 0.047 in.
- Fusion AP max fluid working pressure: 3500 psi (24.5 MPa)
- Fusion AP air pressure range: 80–130 psi (0.55–0.9 MPa)
- Fusion AP max fluid temperature: 200 °F (93 °C)
Compatibility
Fits the Graco Fusion AP (air purge) spray gun. Graco offers AR round chambers from AR2020 to AR8686 and AF flat chambers for the same gun.
FAQ
What do the letters AR mean? In Graco's Fusion AP numbering, AR is an air-purge round chamber and AF is air-purge flat.
Are drill bits included? Yes, Graco AP mix chamber kits include drill bits.
Ships from ArmorThane in Springfield, MO.
