Graco Fusion CS Mix Chamber Kit, Round 00 (RD0000)
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Send us your machine model or part number and we'll confirm the fit before you order.

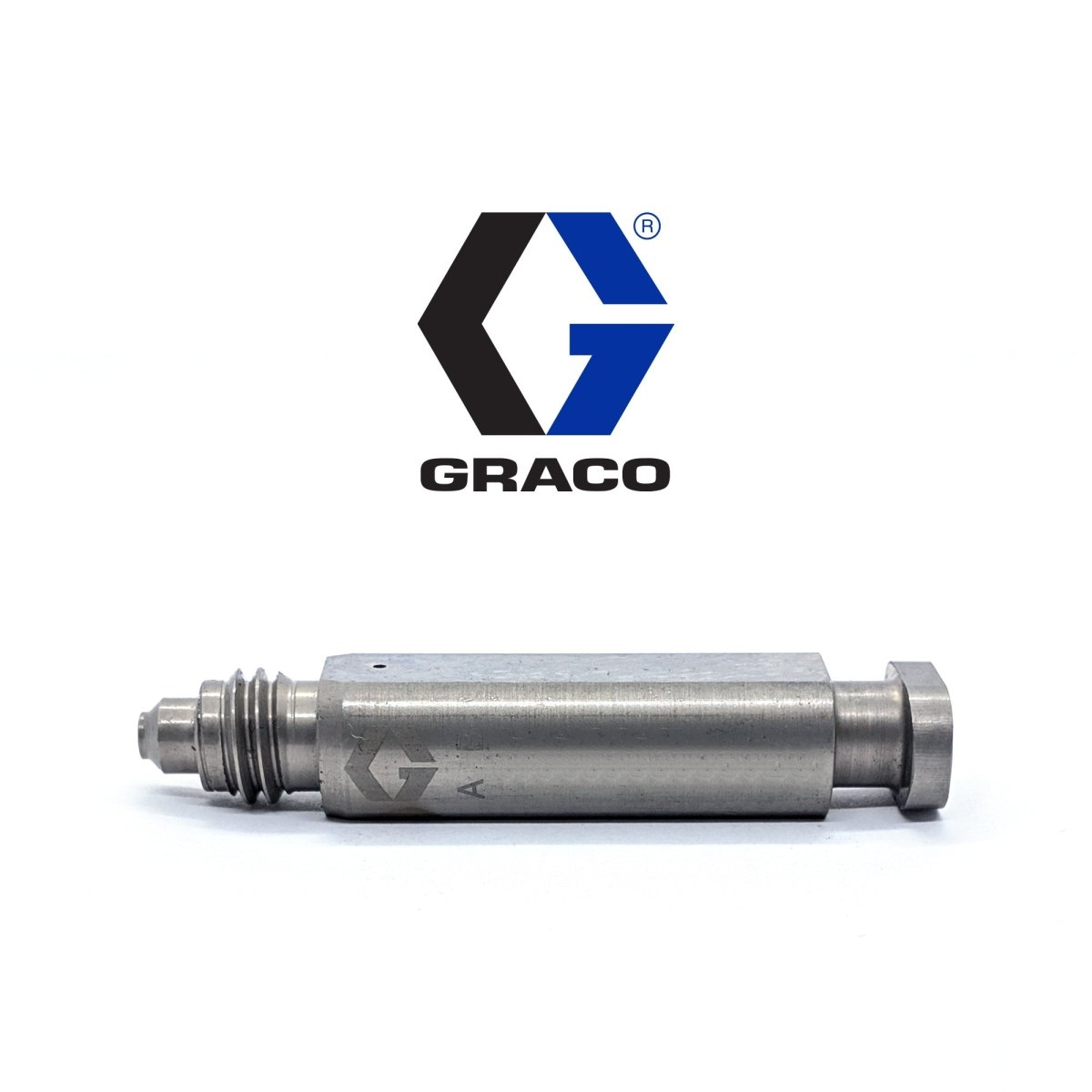

The Graco RD0000 Fusion CS mix chamber is the round-pattern, size 00 mix chamber kit for the Graco Fusion CS (ClearShot) plural-component spray gun. Choosing the right chamber size lets applicators balance output, pattern and material pressure for spray foam or polyurea.
Features
- Round spray pattern, size -00
- Kit includes the mix chamber and cleanout drill bits
- Genuine Graco Fusion CS component
- Replace a worn chamber to restore mix quality
Specifications
- Part number: RD0000
- Brand: Graco
- Pattern / size: Round, -00
- Nozzle orifice: 0.052 in. (1.30 mm)
- Impingement port: 0.029 in. (0.70 mm)
- Fusion CS max fluid working pressure: 3500 psi (24.5 MPa, 245 bar)
- Fusion CS max fluid temperature: 200 °F (94 °C)
Compatibility
Fits the Graco Fusion CS spray gun. Graco also lists round CS chambers from -000 (RD2020) to -03 (RD0303) and flat chambers (FL2020–FL0202) in manual 312666.
About the Fusion CS
The Fusion CS is an impingement-mix, air-purge gun with Graco's ClearShot liquid cleaning system, which injects cleaning solution into the purge air during spraying.
FAQ
What size is RD0000? Round -00, with a 0.029 in. impingement port and 0.052 in. orifice per Graco.
Are drill bits included? Yes, Graco round CS kits include cleanout drill bits.
Ships from ArmorThane in Springfield, MO.
