Graco Fusion FX CS Air Piston Assembly (2000978)
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Send us your machine model or part number and we'll confirm the fit before you order.

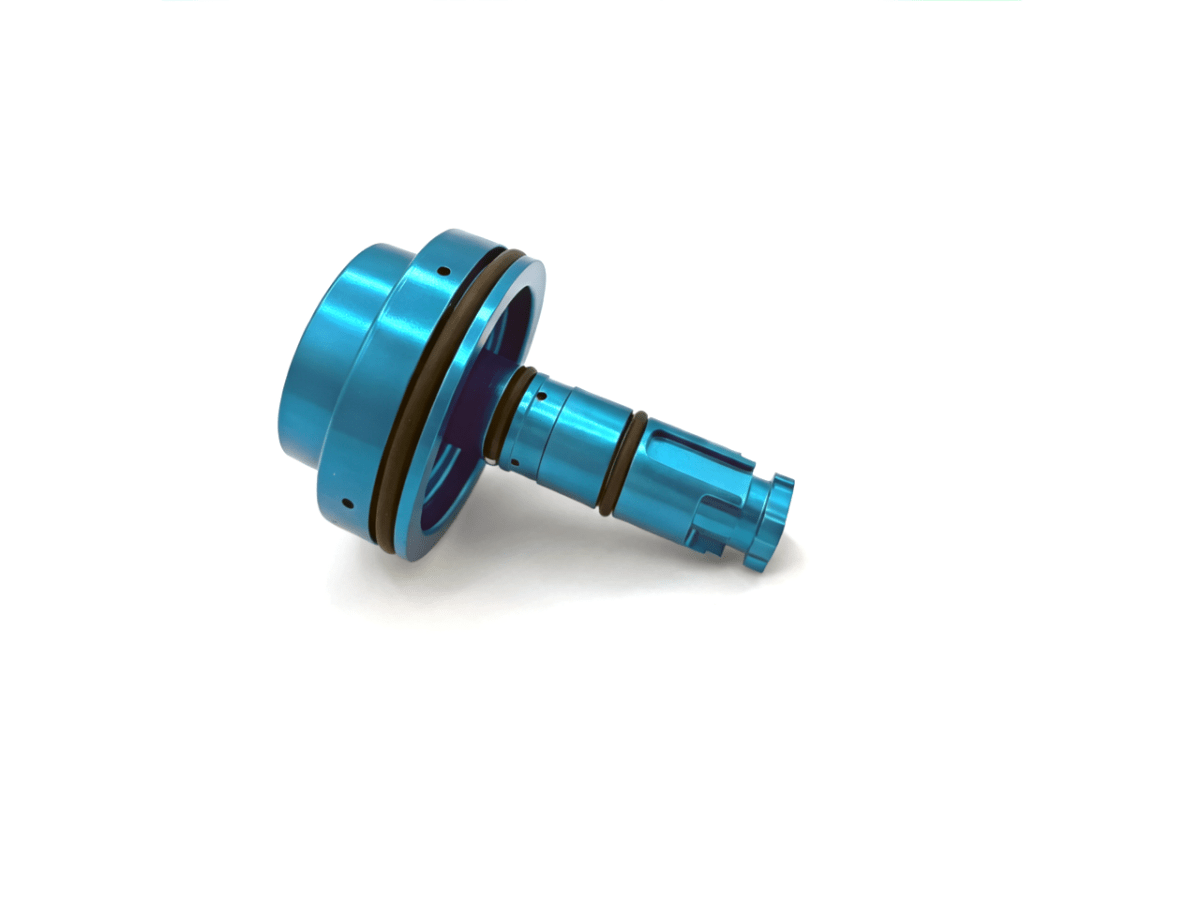

The Graco 2000978 Fusion FX CS air piston kit is the complete piston assembly for the Graco Fusion FX plural-component spray gun. Graco's parts list shows it built from the CS air piston with o-rings, the safety stem stop, the dosing piston, a spiral retaining ring and its o-rings, so one part number replaces the whole piston stack.
Features
- Complete assembly – no need to source individual piston components
- Restores crisp gun open/close when the old piston leaks or drags
- Includes the safety stem stop and dosing piston per Graco's breakdown
- Genuine Graco Fusion FX part
Specifications
- Part number: 2000978
- Graco description: Piston, CS, complete assembly
- Sub-components: 2001166 air piston kit w/ o-rings, 2001032 safety stem stop, 2001031 dosing piston, 2001167 spiral retaining ring, o-rings
- Gun air inlet pressure: 90–130 psi (5.6–9.0 bar)
Compatibility
Graco Fusion FX spray gun (FX9000 series).
FAQ
Can I buy just the piston o-rings? Yes – Graco also offers the 2001166 air piston kit with o-rings, and ArmorThane carries the 119421 o-ring used in the assembly.
Questions on a Fusion FX rebuild? Call (417) 831-5090.
