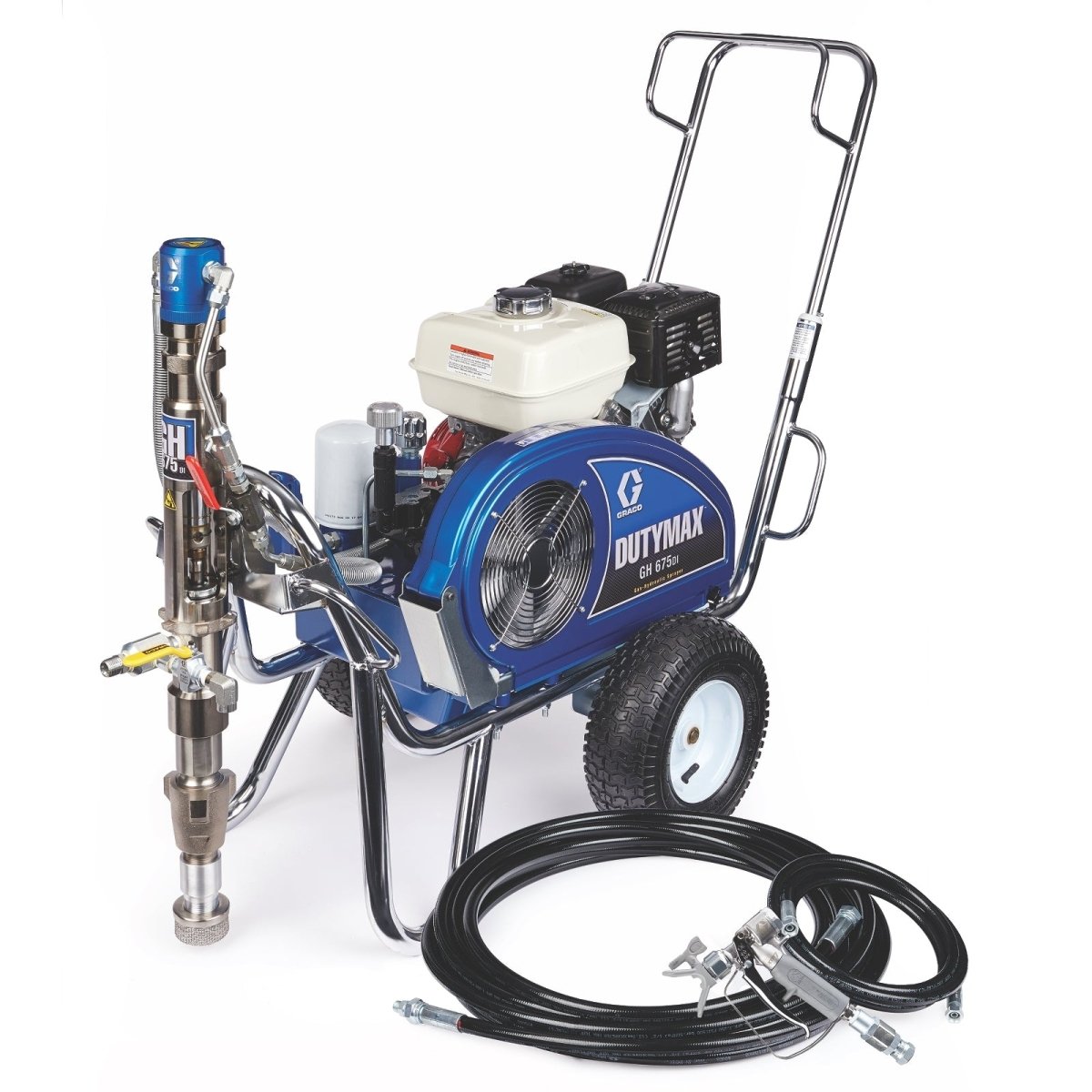

The Graco DutyMax GH 675DI Gas Hydraulic Airless Sprayer, Big 150 & Hopper (25D226) pairs a 6750 psi direct-immersion rig with a 25-gallon material hopper and 150 ft of hose. It is built for high-viscosity, high-build coatings such as elastomerics, intumescents, mastics and waterproofing, with the reach to cover large roofs and structures from one setup.
Features
- Up to 6750 psi and 1.5 gpm for heavy, high-solids materials
- Direct-immersion pump with submerged foot valve; stainless steel rod and hard chrome cylinder
- 25-gallon hopper for continuous feed of thick material
- Big 150 configuration: 1/2 in x 150 ft Xtreme-Duty airless hose
- Honda 270 cc engine with integrated fuel tank and Oil Alert
- Convertible to 3300 psi / 3 gpm with an optional pump kit
Specifications
- Part number: 25D226
- Maximum pressure: 6750 psi (465 bar)
- Maximum flow: 1.5 gpm (5.7 L/min)
- Engine: Honda 270 cc, 9 HP
- Pump: Direct immersion
- Hopper: 25 gallon
What's included
- XTR-7 HF 7250 psi spray gun with 180° swivel and 20 in tip extension
- XHD RAC 523, 527 and 531 spray tips with XHD RAC guard
- 1/2 in x 150 ft Xtreme-Duty airless hose
- 3/8 in x 10 ft Xtreme-Duty airless whip hose
- 25-gallon hopper
- TSL 4 oz and fittings
Typical materials
Block filler, coal tar, contact cement, elastomerics, enamel, fibered and non-fibered aluminum and asphalt emulsions, intumescents, mastics, paint, polyester, polyurethane, primer and waterproofing.
Also available: 25D225 (Big 150). Call (417) 831-5090 to order another configuration.
ArmorThane supports its Graco equipment customers from Springfield, MO.
