Graco Fusion AP Air-Purge Gun, Round 02 Mix Chamber (246102)
$3,680.00
Applicator pricingHidden until you sign in
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Graco Fusion AP Air-Purge Gun, Round 02 Mix Chamber (246102)
Regular price
$3,680.00
Regular price
Sale price
$3,680.00
Unit price
per
Graco Fusion AP Air-Purge Gun, Round 02 Mix Chamber (246102)
$3,680.00
Genuine ArmorThaneFrom the manufacturer, since 1989
Real tech support(417) 831-5090 · Mon–Fri 8–5 CST
Pay over timeFinancing from 0% APR
Secure checkoutEncrypted payments by Shopify
Not sure this is the right part?
Send us your machine model or part number and we'll confirm the fit before you order.

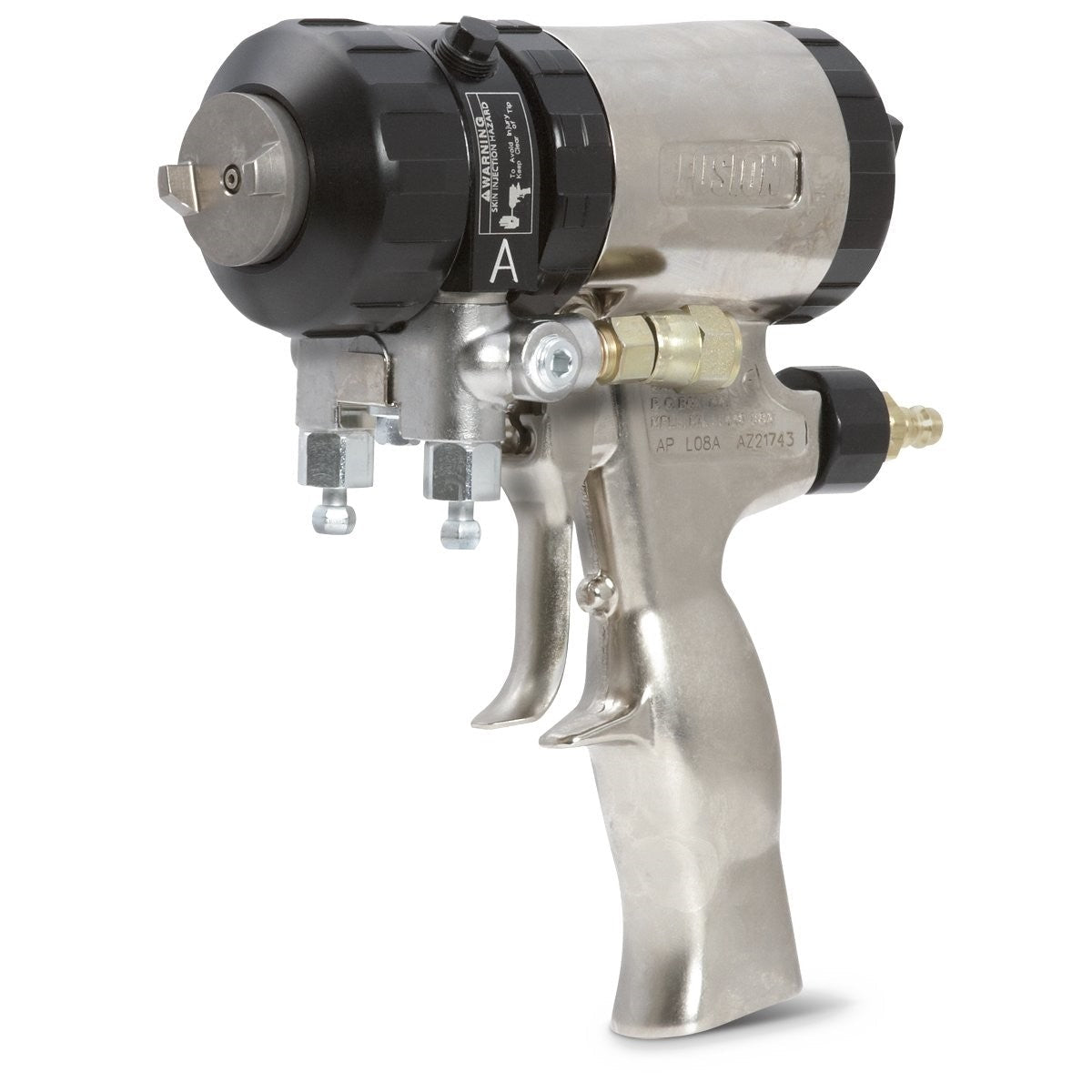

The Graco Fusion AP Air-Purge Gun (246102) is Graco's most popular plural-component gun, spraying both polyurethane foam and polyurea. This model comes with a round-pattern 02 mix chamber.
Features
- Air-blast tip cleaning reduces build-up and tip clogging
- Long-lasting side seals mean less downtime
- Quick-release fluid housing – change mix chambers without tools
- Hand-tightened front cap for tool-free cleaning
- Steel mix chamber for a better mix
- Ergonomic handle
Specifications
- Part number: 246102
- Mix chamber: 02 (0.052 in / 1.3 mm), round pattern
- Pattern size: 12 in at 24 in from target
- Max fluid working pressure: 3,500 psi
- Max fluid temperature: 200°F (93°C)
- Air inlet pressure: 80–130 psi; 1/4 in NPT inlet
- Inlets: A 1/2-20 UNF, B 9/16-18 UNF
- Max flow: 50 lb/min
- Weight: 2.5 lb
- Dimensions: 7.5 × 3.3 × 8.1 in
FAQ
Does it spray polyurea? Yes – the Fusion AP is used for both spray foam and polyurea.
Can I change pattern size? Yes, by swapping mix chambers; ArmorThane stocks Fusion AP chambers and rebuild parts.
