Graco Fusion AP Side Seal Kit, Stainless Steel (246348)
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Send us your machine model or part number and we'll confirm the fit before you order.

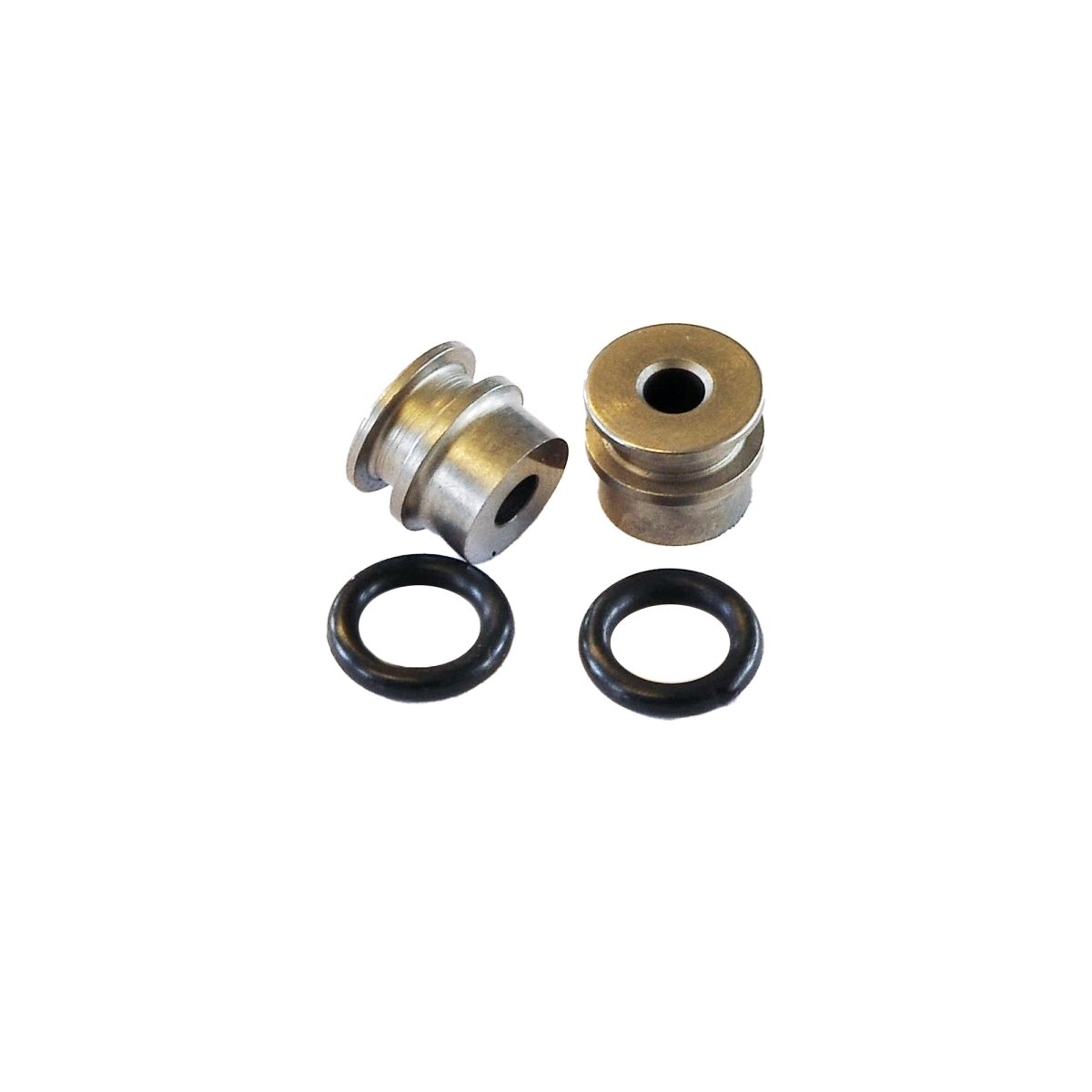

The Graco 246348 side seal kit supplies stainless steel side seals for the Graco Fusion AP air-purge spray gun, the seals that ride against the mix chamber.
Before servicing any Fusion gun, follow the Pressure Relief Procedure in the Graco manual and close the manifold valves.
Features
- Stainless steel side seals (Graco lists qty 2)
- Fixes leaks and material crossover at the mix chamber
- Replace with side seal O-rings 248128 for best results
Specifications
- Part number: 246348
- Material: Stainless steel
- Quantity: 2 per kit (per Graco manual)
- Brand: Graco (genuine)
Compatibility
Graco Fusion AP air-purge gun. On the Fusion AP, wetted parts are aluminum, stainless steel, carbon steel, carbide and chemically resistant O-rings, per Graco manual 309550.
FAQ
How do I know side seals are worn? Common signs are material crossover, leaking at the mix chamber and an uneven spray pattern.
Our parts team can confirm the right Graco number before you order.
