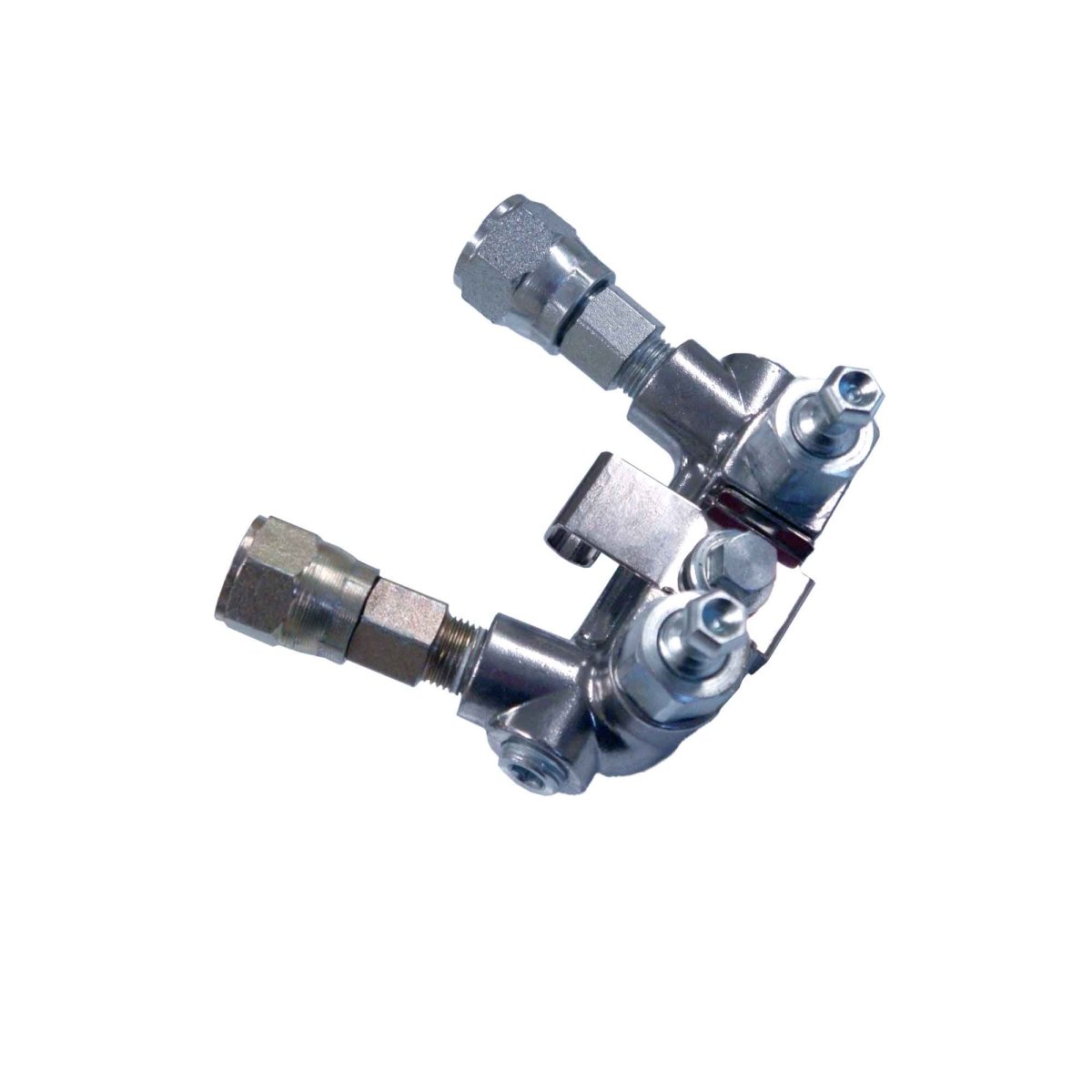

Graco Fusion 2-Hose Fluid Manifold (246012)
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Send us your machine model or part number and we'll confirm the fit before you order.
The Graco 246012 fluid manifold is the complete two-hose manifold that connects the A and B hoses to Graco Fusion AP and Fusion PC plural-component spray guns.
Crews that spray foam or polyurea daily typically keep a stock of Fusion wear parts in the rig to avoid losing a day to a small failure.
Features
- Complete manifold assembly (Graco includes items 12a–12g)
- Two-hose design; a four-hose version is 249523
- Uses fluid valves 246356 for A and B side shutoff
Specifications
- Part number: 246012
- Description: Manifold, fluid, 2-hose
- Manual: Graco 309550
- Brand: Graco (genuine)
Compatibility
Graco Fusion AP and Fusion PC spray guns. The Graco Fusion AP is an air-purge, impingement-mix plural-component gun rated to 3,500 psi (245 bar) fluid working pressure and 200°F (94°C) fluid temperature.
FAQ
What is the difference between 246012 and 249523? 246012 is the two-hose manifold; 249523 is the four-hose version used for recirculation setups.
Questions about fit? Call ArmorThane in Springfield, MO at (417) 831-5090.
