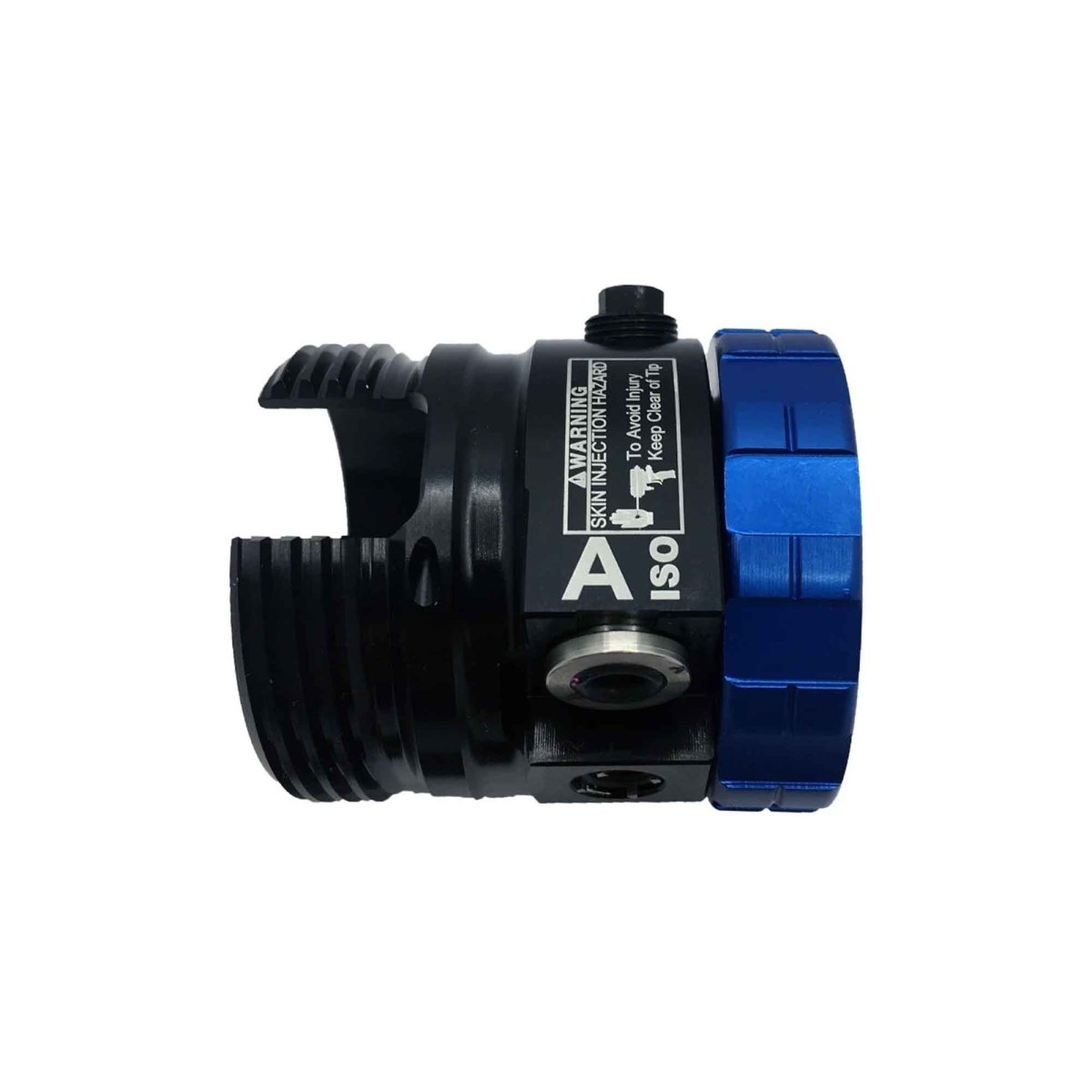

Graco 19Y303 Fluid Housing Kit – Fusion PC Spray Gun
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Send us your machine model or part number and we'll confirm the fit before you order.
The Graco 19Y303 fluid housing kit replaces the fluid housing on the Graco Fusion PC plural-component spray gun together with the parts that mount to it. It is the fastest way to restore a Fusion PC front end that has a damaged housing or packed-off passages.
Features
- Genuine Graco kit for the Fusion PC
- Includes the fluid housing plus A-side and B-side check valves
- Also includes the cleanoff air valve, lock ring, retaining ring, grease fitting and grease fitting cover
- Includes the o-rings called out for the housing
Specifications
- Part number: 19Y303
- Manufacturer: Graco
- Description: Kit, fluid housing, Fusion PC
- Kit contents per Graco: Parts list refs. 7, 8, 11, 21, 24, 25, 26 (A and B side), 27 and 37
Compatibility
For the Graco Fusion PC (ProConnect) plural-component spray gun, per Graco manual 3A7314. The Fusion PC is rated to 3500 psi (24.5 MPa, 245 bar) maximum fluid working pressure and 200°F (94°C) maximum fluid temperature.
FAQ
Does 19Y303 include the check valves? Yes. Graco lists both the A-side and B-side check valves (ref. 26) in the 19Y303 kit.
Will it fit a Fusion AP? The kit is listed for the Fusion PC; the Fusion AP uses fluid housing 246491.
Ships from ArmorThane in Springfield, MO.
