Graco 15B221 Bolt, 5/16-24 – Fusion AP & PC Fluid Manifold
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Send us your machine model or part number and we'll confirm the fit before you order.

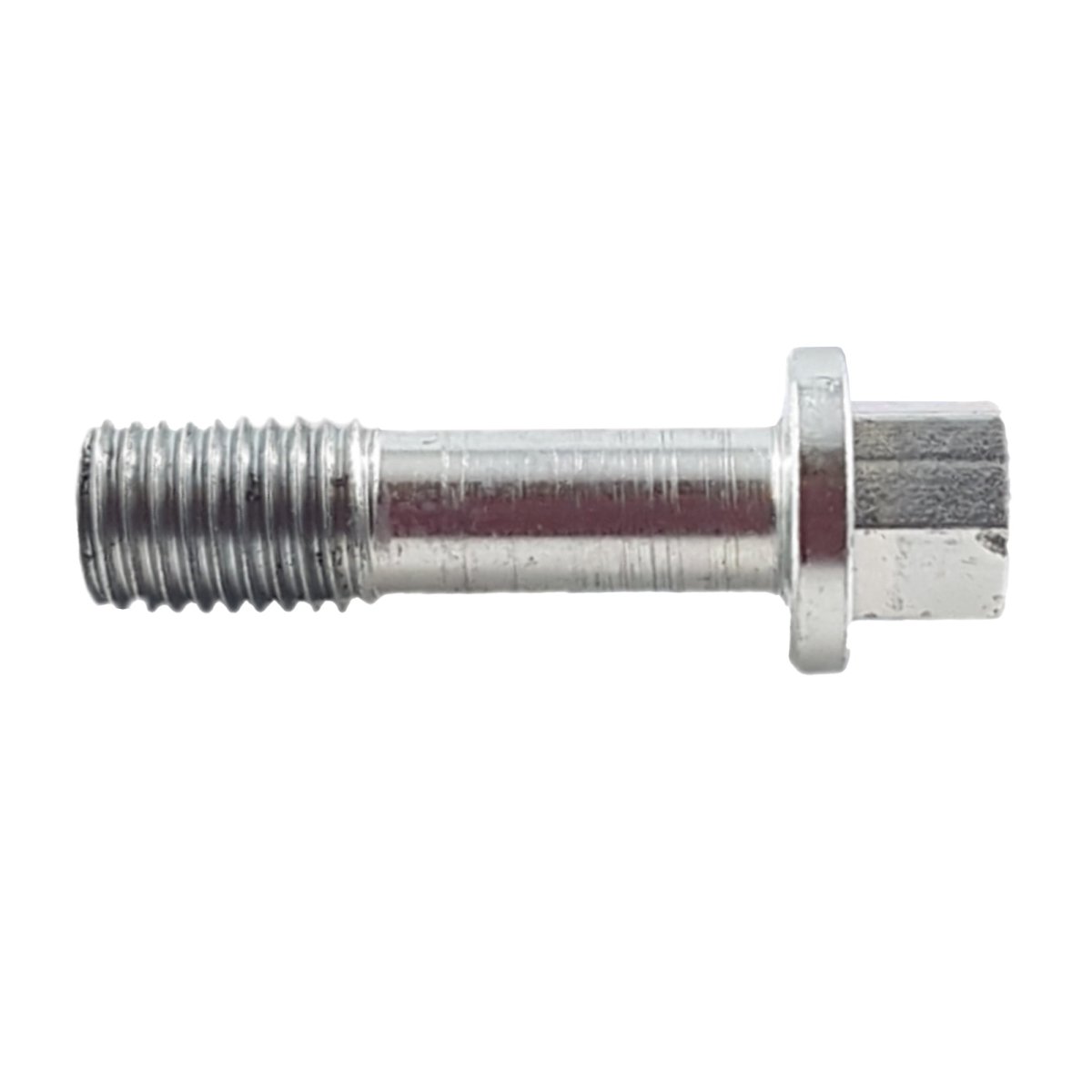

The Graco 15B221 bolt (5/16-24) secures the 2-hose fluid manifold (246012) to Graco Fusion AP and Fusion PC plural-component spray guns (ref. 12d). It is included with the manifold and also sold on its own for replacement.
Features
- Genuine Graco manifold bolt
- Holds the fluid manifold to the gun
- Replace a stretched, bent or damaged bolt
Specifications
- Part number: 15B221
- Manufacturer: Graco
- Description: Bolt, 5/16-24
- Thread: 5/16-24
- Used in: Fluid manifold 246012 (ref. 12d)
Compatibility
Listed in Graco's Fusion AP (manual 309550) and Fusion PC (manual 3A7314) spray gun parts lists. Both guns are rated to 3500 psi (24.5 MPa, 245 bar) maximum fluid working pressure and 200°F (94°C) maximum fluid temperature. Confirm the reference number against your gun's parts list before ordering.
Ordering several rebuild parts? We can help you build the list by phone.
