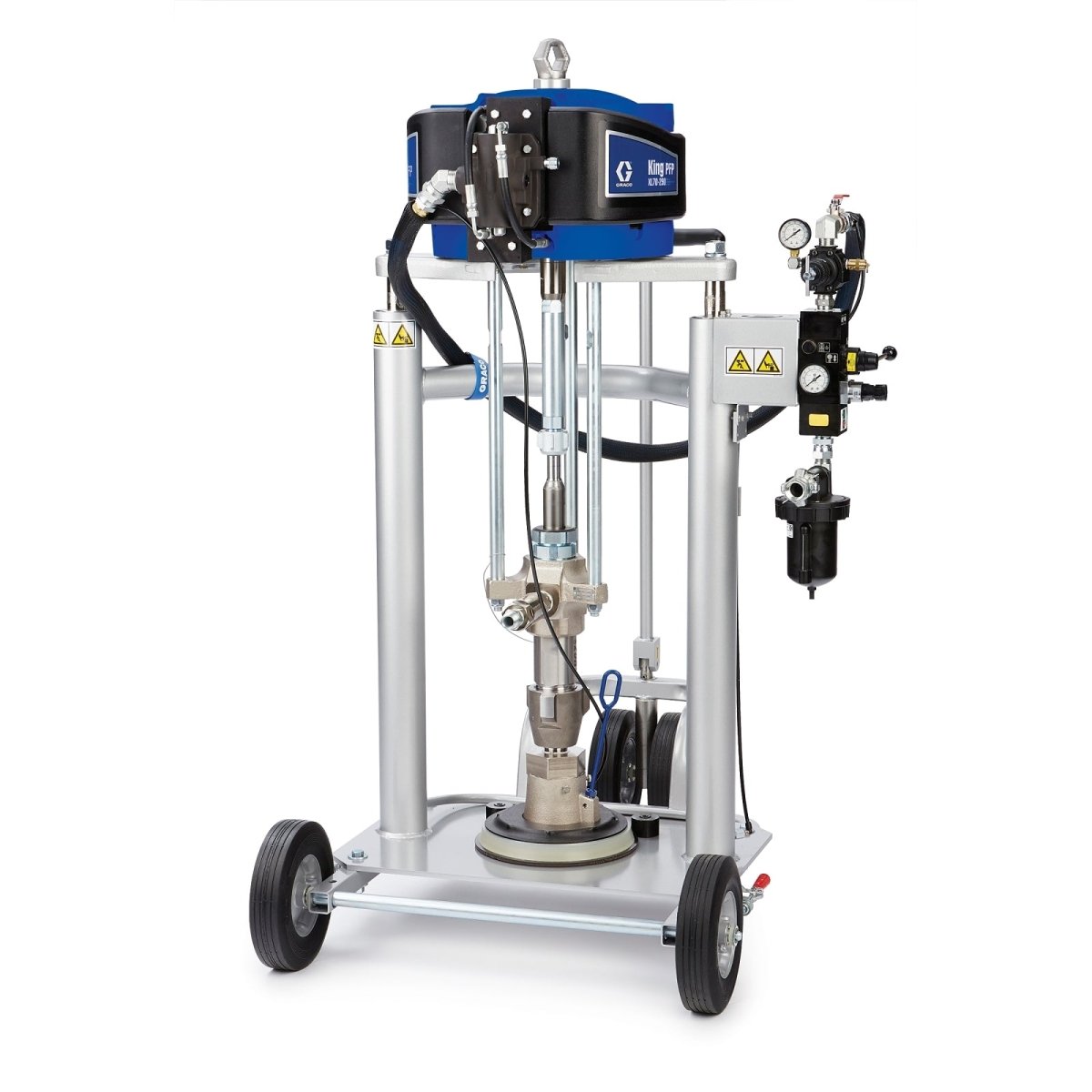

The Graco King PFP XL70-290 (24X069) is a cart-mounted single-component sprayer built for epoxy passive fire protection (PFP) coatings, pairing the Xtreme XL10000 air motor with a 290cc Xtreme lower and a ram feed.
Features
- 5-gallon (18.9 L) dual-post ram provides downforce to feed high-viscosity coatings
- Tool-less wiper plate removal for easy maintenance
- Suited to small touch-up projects and hard-to-reach areas
- Complete with 75 ft (23 m) spray line, XHF gun and 429 tip
Specifications
- Part number: 24X069 (cart-mounted)
- Material: PFP epoxy (single component)
- Feed: Ram
- Maximum working pressure: 7250 psi (500 bar)
- Maximum air inlet pressure: 100 psi (7 bar)
- Lower: 290cc Xtreme
- Weight: 432 lb (196 kg)
Compatibility
Graco also offers a no-cart version (24X068). Contact ArmorThane at (417) 831-5090 for availability.
