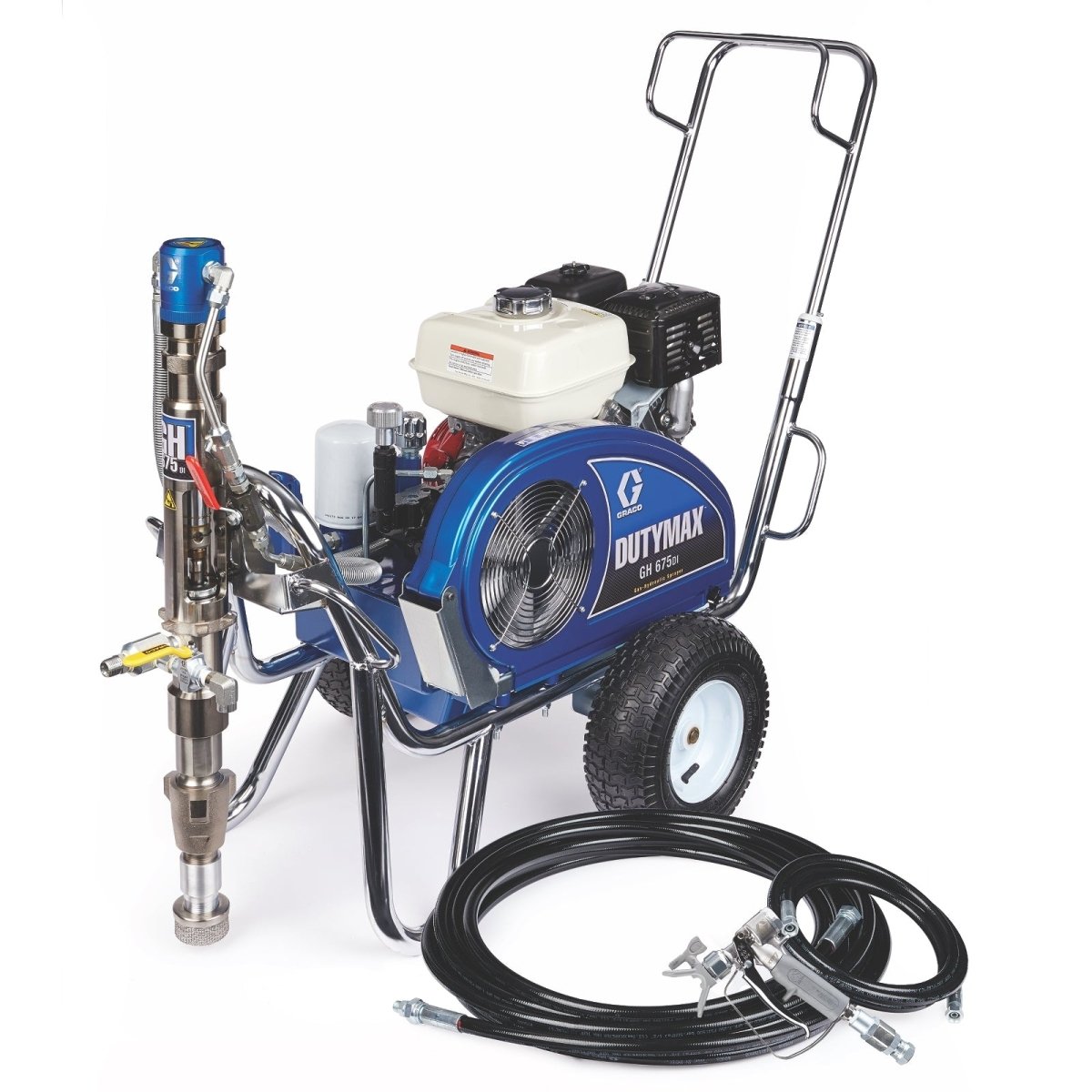

Graco DutyMax GH 675DI Gas Hydraulic Airless Sprayer, Complete (25D223)
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Send us your machine model or part number and we'll confirm the fit before you order.
The Graco DutyMax GH 675DI Gas Hydraulic Airless Sprayer, Complete (25D223) is a 6750 psi, direct-immersion rig for high-viscosity coatings. A Honda 270 cc engine drives an O-ring sealed hydraulic system, and the pump's submerged foot valve feeds thick materials such as intumescents, mastics and elastomerics without a siphon hose.
Features
- Up to 6750 psi and 1.5 gpm for high-build coatings
- Direct-immersion pump with submerged foot valve, stainless steel rod and hard chrome cylinder
- O-ring sealed hydraulics with 4-gallon reservoir and return-line filter; no special fluid required
- Honda 270 cc engine with integrated fuel tank and Oil Alert
- Convertible to 3300 psi / 3 gpm with an optional pump kit
Specifications
- Part number: 25D223
- Maximum pressure: 6750 psi (465 bar)
- Maximum flow: 1.5 gpm (5.7 L/min)
- Engine: Honda 270 cc, 9 HP (6.7 kW)
- Pump: Direct immersion
- Weight: 218 lb (99 kg)
- Dimensions: 47.7 x 26.5 x 35.5 in (L x W x H)
What's included
- XTR-7 HF 7250 psi spray gun with 20 in tip extension and 180° swivel
- XHD 523, 527 and 531 RAC SwitchTips
- 1/2 in x 50 ft Xtreme-Duty airless hose
- 3/8 in x 10 ft Xtreme-Duty whip hose
Typical materials
Block filler, coal tar, contact cement, elastomerics, enamel, fibered and non-fibered aluminum and asphalt emulsions, intumescents, mastics, paint, polyester, polyurethane, primer and waterproofing.
FAQ
Can it spray at lower pressure with more flow? Yes. Graco offers an optional pump kit that converts it to 3300 psi / 3 gpm.
Is a hopper version available? Yes. 25D226 adds a 25-gallon hopper and 150 ft of hose; 25D225 is the Big 150 version.
Order from ArmorThane or call (417) 831-5090 for help choosing a configuration.
