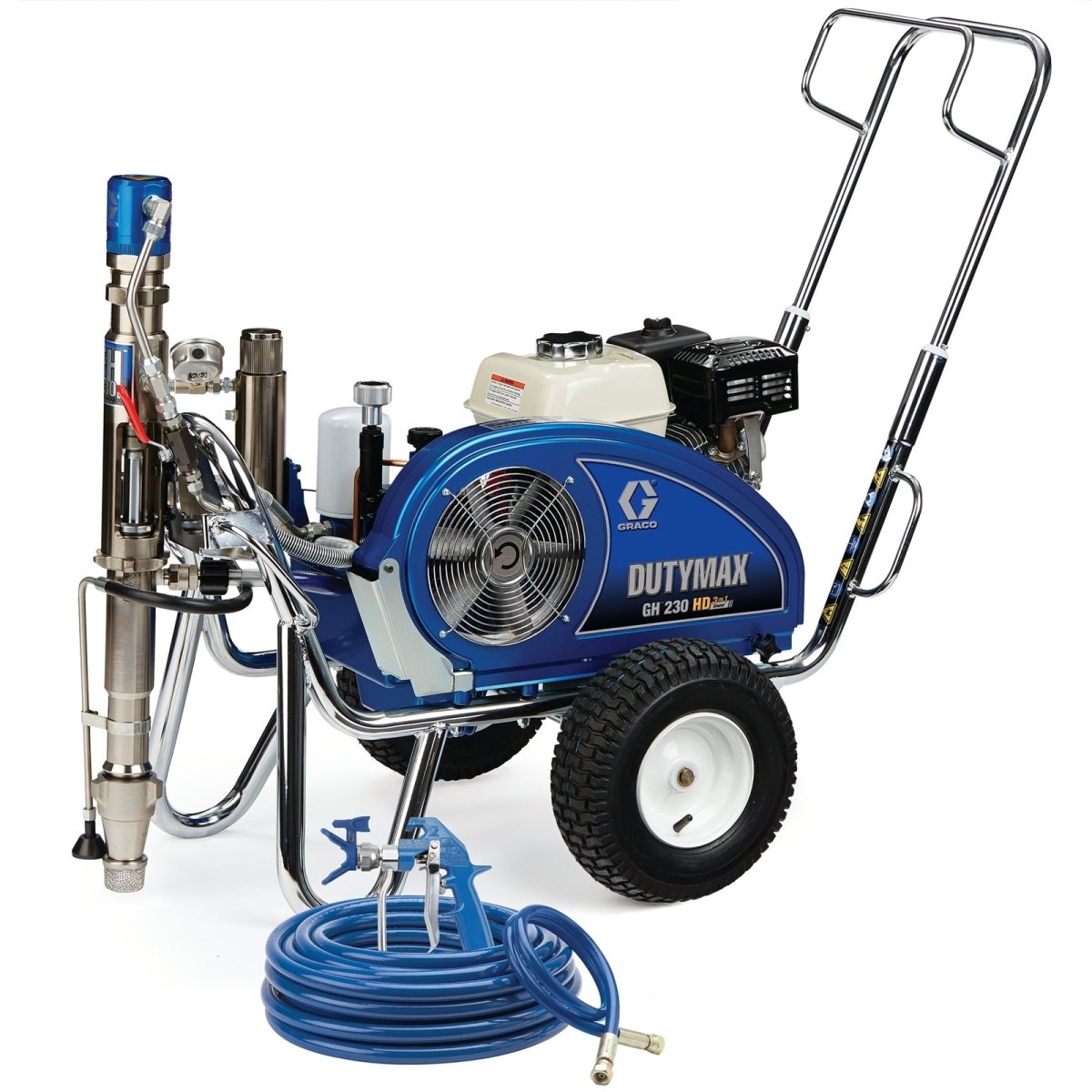

Graco DutyMax GH 230 HD 3-in-1 Convertible Sprayer (24W943)
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Send us your machine model or part number and we'll confirm the fit before you order.
The Graco DutyMax GH 230 HD 3-in-1 Standard Series Convertible Gas Hydraulic Airless Sprayer (24W943) handles everything from primers and latex to block filler, drywall mud and elastomeric coatings. A Honda GX 6.5 HP engine drives a high-efficiency hydraulic motor and long-stroke Endurance direct-immersion pump for 2.35 gpm at up to 3300 psi.
Features
- 3-in-1 versatility: paints, texture and heavy materials from one rig
- Convertible: swaps the gas engine for an electric motor in seconds, without tools (motor kit sold separately)
- Endurance direct-immersion pump for thick materials
- MaxFlo 2 with self-cleaning Vibra-Seal technology
- Hydraulic motor with 100% O-ring sealed fittings and high-capacity cooling
- Honda GX engine with oil alert protection
Specifications
- Part number: 24W943
- Maximum pressure: 3300 psi
- Maximum flow: 2.35 gpm
- Maximum tip size: 0.053 in
- Engine: Honda GX, 6.5 HP (4.8 kW)
- Pump: Endurance, long stroke, direct immersion
- Weight: 203 lb
- Frame: Cart
What's included
- Heavy-Duty Blue Texture Gun (4-finger trigger)
- RAC X LTX 427 and RAC X LTX 531 SwitchTips
- 3/8 in x 50 ft BlueMax II airless hose
Typical materials
Primers, water-based paint, acrylic, latex, solventborne paints, block filler, drywall mud and elastomeric coatings.
Also available: 24W962 (ProContractor). Call (417) 831-5090 to order another configuration.
ArmorThane sells and services Graco equipment from Springfield, MO.
