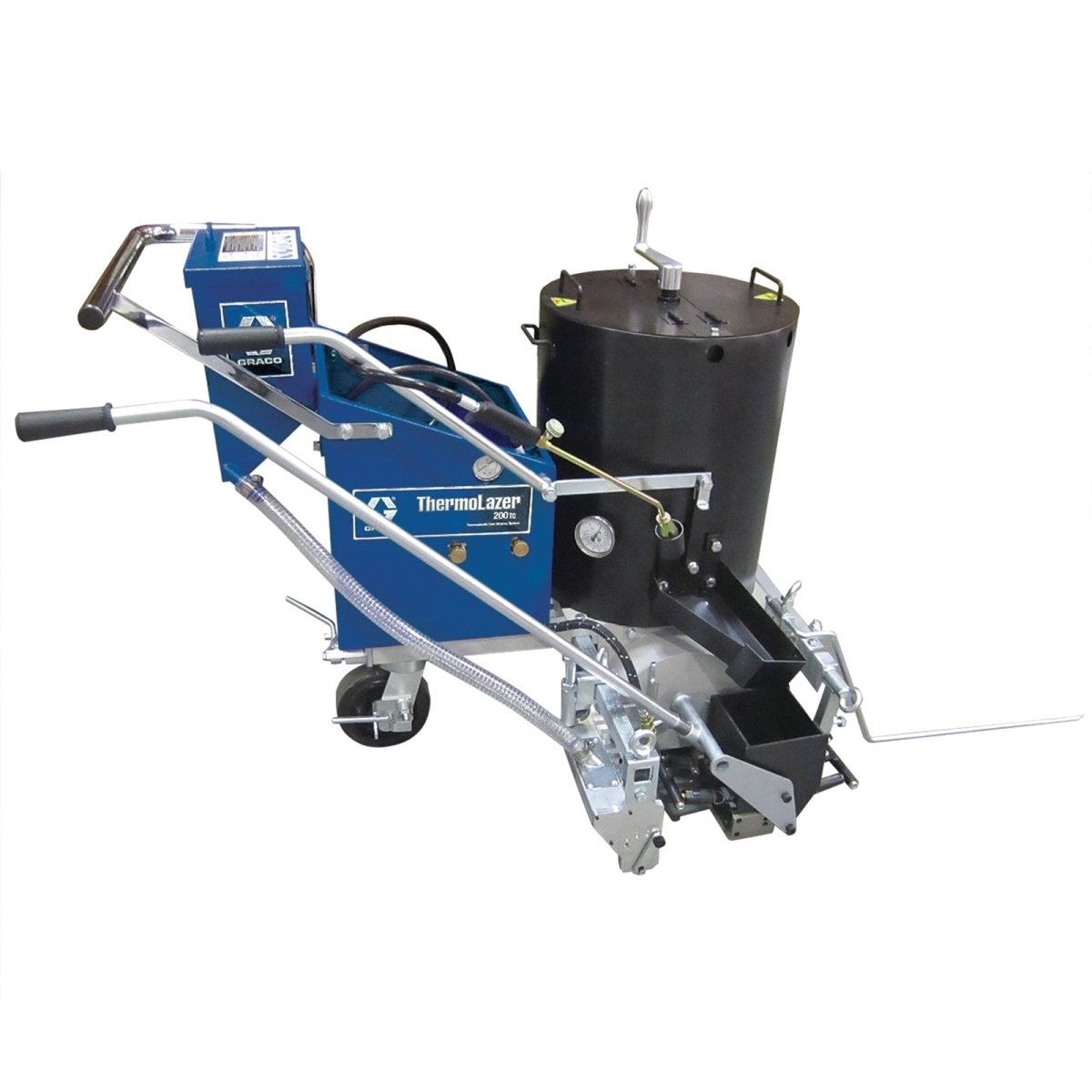

Graco ThermoLazer 200TC Thermoplastic Striper, 4 in FlexDie (24U282)
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Send us your machine model or part number and we'll confirm the fit before you order.
The Graco ThermoLazer 200TC Thermoplastic Striping System, 4 in FlexDie (24U282) is a compact, portable thermoplastic handliner for contractors who already run a premelt kettle.
The 200 lb material kettle and 40 lb bead hopper (8.5 or 12.5 in dispenser options) let one operator lay crosswalks, stop bars and parking lines from premelted thermoplastic.
Features
- Deep-die, all-steel FlexDie with no-tool change-out
- Direct-flame heat with on-board hand torch for maximum material flow
- Adjustable operator handle and front pointer for straight lines
- Tri-wheel system with dual front and single rear wheels
Specifications
- Part number: 24U282
- Material kettle: 200 lb
- Bead hopper: 40 lb
- Die: 4 in FlexDie, adjustable in 1 in increments
- Max working pressure: 250 psi (17.24 bar)
- Weight: 260 lb (117.9 kg)
FAQ
Does the 200TC melt material itself? It maintains heat with direct flames, but Graco positions it for contractors with an existing premelt kettle; the ThermoLazer ProMelt (24H624) melts on board.
