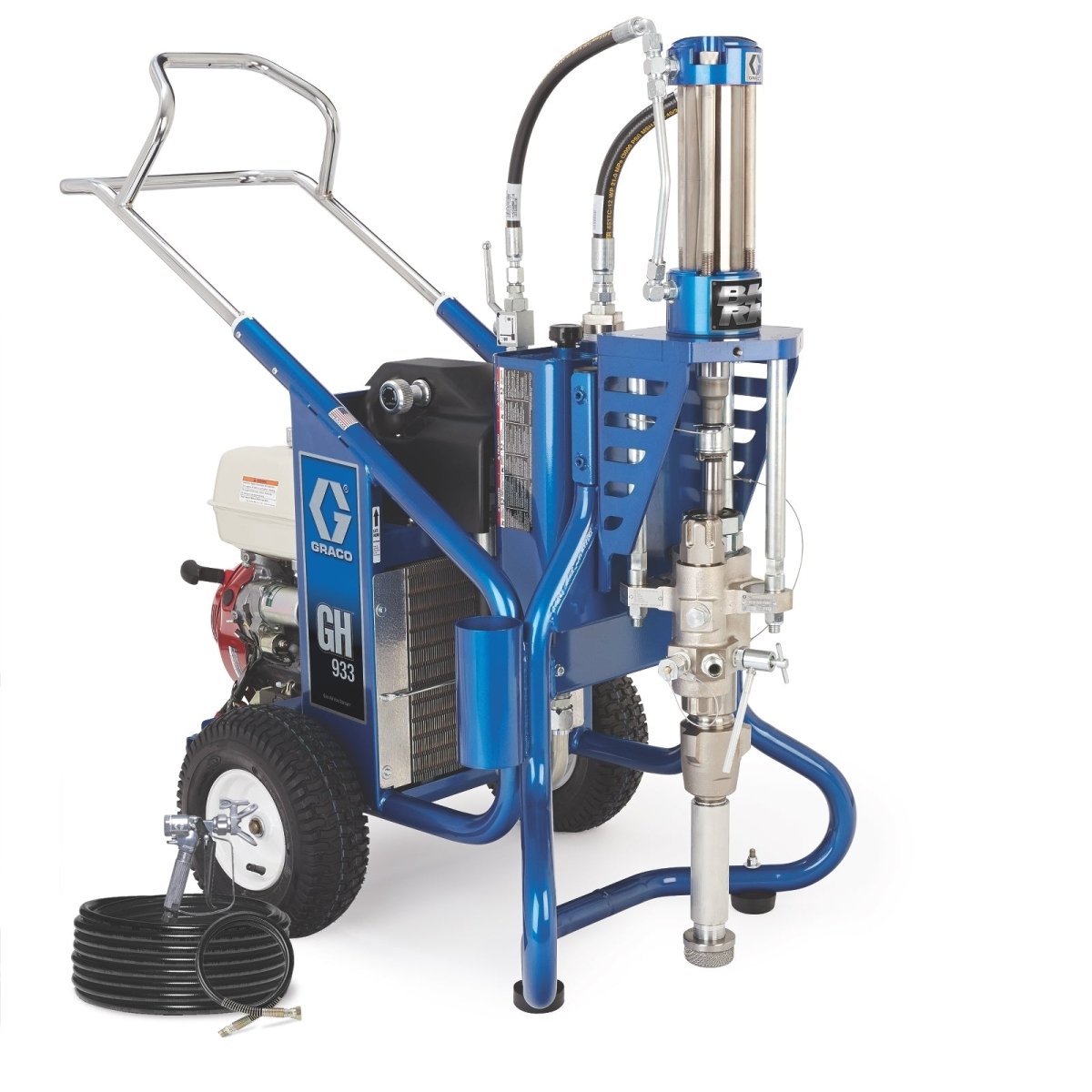

Graco GH 933 Big Rig Gas Hydraulic Sprayer, Complete (16U282)
$17,242.00
Applicator pricingHidden until you sign in
ArmorThane applicators get pricing set for their account. Sign in to see yours.
Graco GH 933 Big Rig Gas Hydraulic Sprayer, Complete (16U282)
$17,242.00
Genuine ArmorThaneFrom the manufacturer, since 1989
Real tech support(417) 831-5090 · Mon–Fri 8–5 CST
Pay over timeFinancing from 0% APR
Secure checkoutEncrypted payments by Shopify
Not sure this is the right part?
Send us your machine model or part number and we'll confirm the fit before you order.
The Graco GH 933 Big Rig Gas Hydraulic Sprayer, Complete (16U282) is a high-pressure 7,250 psi rig for applicators who need to atomize viscous protective coatings, epoxies and polyurethanes at production rates.
Features
- Xtreme pump with QuikChange mount for high-pressure, high-solids materials
- Honda 390cc engine with Oil Alert protection
- Heavy-duty, O-ring sealed hydraulic system for fast, responsive changeover
- Lockable pressure control knob
- Large cooling system with easy drain plug
- Ready-to-spray package with all needed fittings
Specifications
- Part number: 16U282
- Max working pressure: 7,250 psi (50 MPa)
- Max flow: 2.5 gpm (9.5 L/min)
- Max tip size: 0.053 in (one gun)
- Engine: Honda 390cc (13 HP)
- Pump: Xtreme with QuikChange mount
- Hydraulic reservoir: 4 gal
- Weight: 438 lb (199 kg)
- Sound level: 91 dB(A)
What's Included
- XTR-7 airless spray gun
- XHD RAC 519 tip and XHD RAC guard
- 3/8 in x 50 ft Xtreme-Duty airless hose
- 1/4 in x 6 ft Xtreme-Duty whip hose
FAQ
What is the difference between the GH 933 and GH 833? The GH 933 runs up to 7,250 psi for heavy protective coatings, while the GH 833 delivers more volume (4.0 gpm) at 4,000 psi.
Is a bare unit available? Yes, part 16U281 (Bare); call (417) 831-5090.
Questions on setup or tips? The ArmorThane team in Springfield can help.
