Graco GH 833ES Big Rig Gas Hydraulic Sprayer, Complete (16U288)
$16,951.00
Applicator pricingHidden until you sign in
ArmorThane applicators get pricing set for their account. Sign in to see yours.

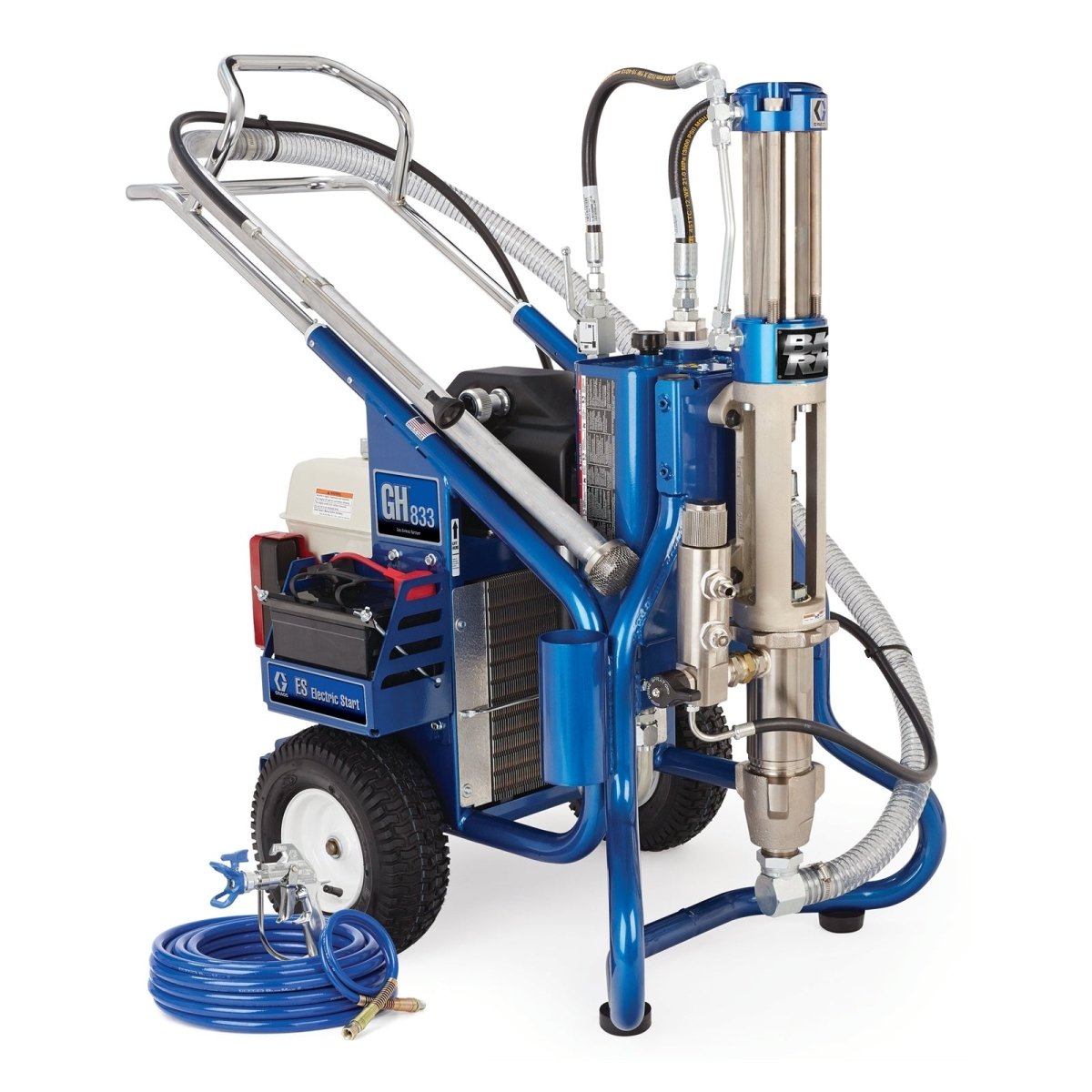

Graco GH 833ES Big Rig Gas Hydraulic Sprayer, Complete (16U288)
$16,951.00
Genuine ArmorThaneFrom the manufacturer, since 1989
Real tech support(417) 831-5090 · Mon–Fri 8–5 CST
Pay over timeFinancing from 0% APR
Secure checkoutEncrypted payments by Shopify
Not sure this is the right part?
Send us your machine model or part number and we'll confirm the fit before you order.
The Graco GH 833ES Big Rig Gas Hydraulic Sprayer, Complete (16U288) adds push-button electric start to Graco's 4.0 gpm hydraulic workhorse, so crews can fire it up quickly and keep large-volume jobs moving.
Features
- Honda 390cc engine with electric start, back-up pull start and Oil Alert
- MaxLife Endurance pump at only 16 cycles per gallon for long service life
- O-ring sealed hydraulics for faster, more responsive changeover
- Inside-out flow-through filter design that eliminates clogged filters
- High-capacity cooling with return-line hydraulic filter
- Converts from cart to skid mount for truck or trailer rigs
Specifications
- Part number: 16U288
- Max working pressure: 4000 psi (27.6 MPa)
- Max flow: 4.0 gpm (15.1 L/min)
- Max tip size: 0.065 in (one gun)
- Engine: Honda 390cc (13 HP), electric start
- Hydraulic reservoir: 4 gal
- Max hose length: 50 ft
- Weight: 398 lb (181 kg)
- Sound level: 91 dB(A)
What's Included
- Silver Plus gun, 2-finger trigger
- RAC X LTX 517 and 655 tips with RAC X guard
- 3/8 in x 50 ft BlueMax II HP hose
- 1/4 in x 3 ft BlueMax II HP whip hose
FAQ
Is there a bare version? Yes, the GH 833ES Big Rig is also available bare as part 16U287; call (417) 831-5090 to order.
Contractor account holders see their pricing after logging in.
