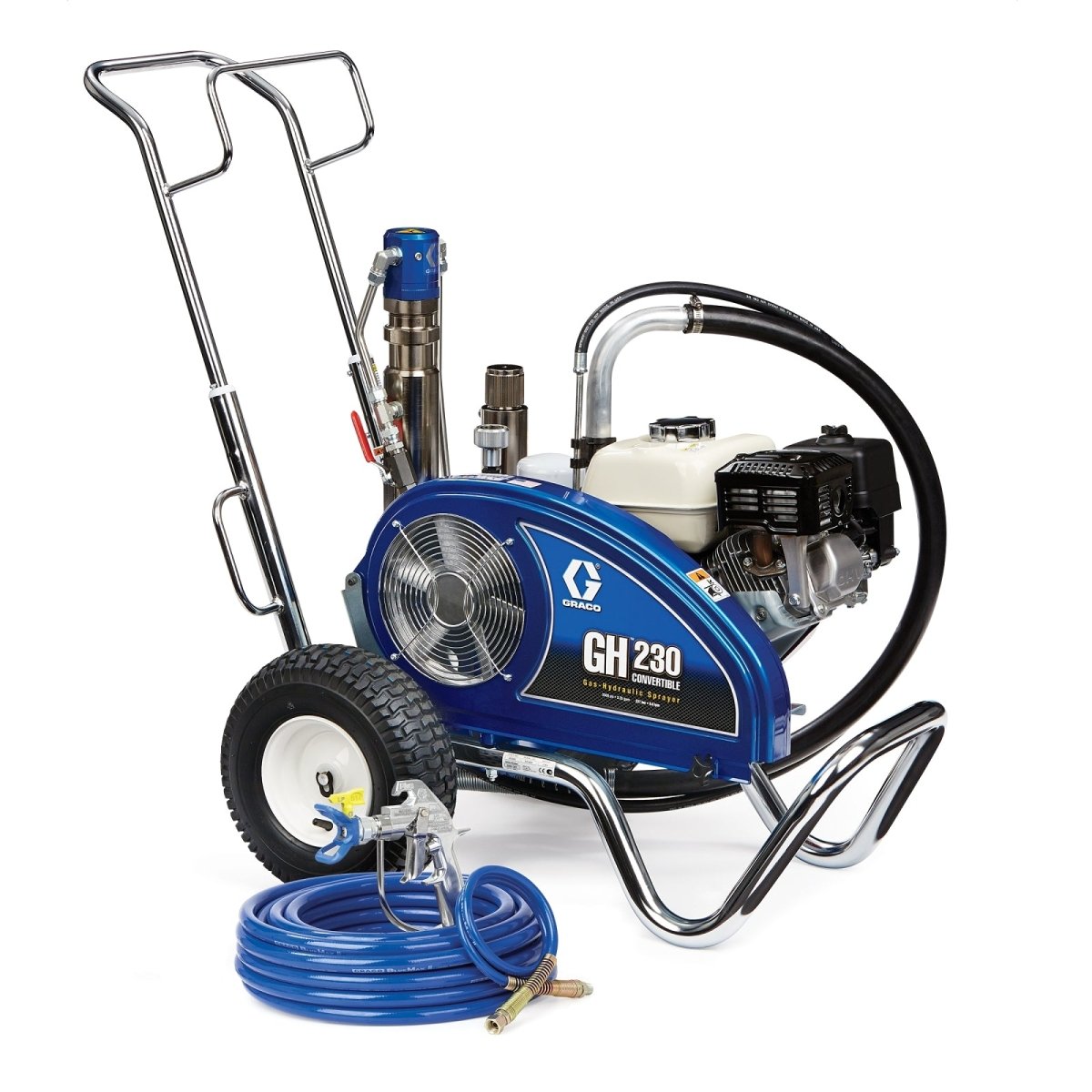

The Graco GH 230 Convertible Standard Series Gas Hydraulic Airless Sprayer (24W929) delivers 2.35 gpm at 3300 psi from a Honda 6.5 HP engine. It can run multiple guns on larger commercial jobs and converts to electric power without tools for indoor work.
Features
- Supports up to five guns (see tip sizes below)
- Convertible to electric power without tools (motor kit sold separately)
- Endurance Chromex piston pump with QuikChange design
- High-capacity cooling system and heavy-duty prime valve
- Easy-out, inside-out pump filter; cart with pneumatic wheels
Specifications
- Part number: 24W929
- Maximum pressure: 3300 psi
- Maximum flow: 2.35 gpm
- Maximum tip size: 0.053 in (1 gun), 0.038 in (2), 0.032 in (3), 0.028 in (4), 0.024 in (5)
- Engine: Honda 6.5 HP
- Pump: Endurance Chromex, QuikChange
- Weight: 168 lb
What's included
- Silver Plus airless spray gun
- RAC X LP 517 and WideRAC 1231 SwitchTips with guard
- 3/8 in x 50 ft BlueMax II airless hose
- 1/4 in x 3 ft whip hose
- TSL 4 oz
Typical materials
Acrylics, dry fall, drywall mud, elastomers, gypsum, paint and primer.
Also available: 24W930 (with Electric Motor Kit). Call (417) 831-5090 to order another configuration.
Need help picking between the GH 200, 230 and 300? Call ArmorThane at (417) 831-5090.
